Electrical connectors fail in wet environments for predictable reasons: water bridges the gap between contacts, causes corrosion, and eventually creates short circuits or open connections. Waterproof electrical connectors prevent this by sealing the mating interface and cable entry points against moisture ingress.
The challenge is that "waterproof" means different things in different contexts. A connector rated for occasional rain exposure is not suitable for continuous submersion. A connector designed for automotive underbody use may not survive high-pressure washdown in a food processing plant. Understanding the IP rating system and the connector types available for each application is essential for reliable system design.
The IP Rating System
IP (Ingress Protection) ratings are defined by IEC 60529 and classify the degree of protection provided by an enclosure against solid particles and liquids. The rating consists of two digits:
- First digit (0–6): Protection against solid objects (dust, tools, fingers)
- Second digit (0–9K): Protection against liquids
For waterproof connectors, the second digit is the critical one:
| Second Digit | Protection Level | Test Condition |
|---|---|---|
| 4 | Splash-proof | Water splashing from any direction |
| 5 | Jet-proof | Water jets from any direction (12.5 L/min, 3m distance) |
| 6 | Powerful jet-proof | Powerful water jets (100 L/min, 3m distance) |
| 7 | Immersion (1m) | Submersion up to 1m for 30 minutes |
| 8 | Immersion (>1m) | Continuous submersion (depth specified by manufacturer) |
| 9K | High-pressure washdown | Steam cleaning, high-pressure/high-temperature jets |
The most common ratings for waterproof connectors are IP67 (temporary immersion) and IP68 (continuous submersion). IP69K is required for food processing, agriculture, and other washdown environments.
Note that IP ratings are independent — IP68 does not imply IP6K9K. A connector can be IP68 (submersion-rated) but not IP69K (washdown-rated). Always check both digits for your application.
Sealing Methods
Waterproof connectors use several sealing approaches:
Interface Seals
A silicone or rubber O-ring or gasket seals the mating face between the plug and socket. When the connector is fully mated and locked, the seal is compressed to create a watertight barrier. The locking mechanism (snap-lock, screw-lock, or bayonet) maintains the compression force.
Wire Seals
Individual silicone seals around each wire at the cable entry point prevent water from wicking along the wire insulation into the connector body. Wire seals are sized to match the wire diameter — using the wrong size seal is a common cause of IP rating failure.
Potting
For permanent installations, the connector cavity can be filled with epoxy or polyurethane potting compound after wiring. Potted connectors achieve very high IP ratings but cannot be serviced without destroying the connector.
Overmolding
Cable assemblies with overmolded connectors have the connector housing molded directly onto the cable, eliminating the cable entry seal as a potential leak point. Common in automotive and marine applications.
Waterproof Connector Types by Application
Automotive Waterproof Connectors
Automotive connectors must withstand underbody splash, engine bay heat, and chemical exposure (oil, fuel, brake fluid). The major automotive connector families all have sealed variants:

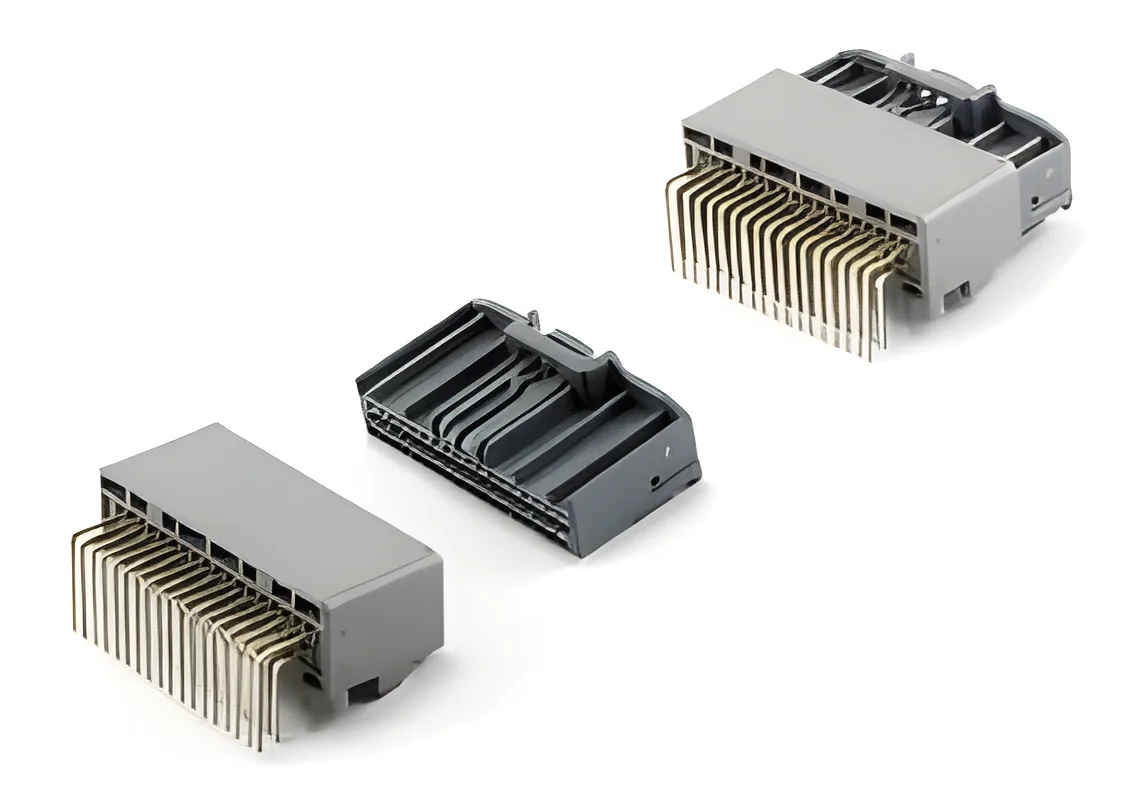

Deutsch DT/DTM Series: The most widely used sealed automotive connector family. Available in 2–12 positions, rated IP67. Used in trucks, agricultural equipment, and off-road vehicles. The DT series uses individual wire seals and a secondary lock to prevent terminal backout.
TE Connectivity AMP Superseal: A compact sealed connector family used in passenger vehicles. Available in 1–6 positions, IP67 rated. Common on sensors, actuators, and lighting.
Molex MX150L: A sealed version of the popular MX150 connector, rated IP67. Used in automotive body electronics and lighting.
Yazaki 090 Series (sealed): Sealed variants of the standard 090 series, widely used in Japanese and Korean vehicles.
Marine Connectors
Marine environments combine saltwater corrosion with vibration and UV exposure. Marine-grade connectors use:
- 316 stainless steel or marine-grade brass hardware
- UV-stabilized housing materials
- IP68 ratings for below-waterline applications
- Tinned copper contacts to resist saltwater corrosion
Common marine connector types include circular connectors (M12, M16, M23), Anderson SB connectors for battery connections, and waterproof versions of standard automotive connectors.
Industrial Waterproof Connectors
M12 connectors are the dominant waterproof connector in industrial automation. The M12 circular connector is available in A, B, C, D, and X coding variants for different signal types, with IP67 and IP68 ratings standard. M12 connectors are used for sensors, actuators, fieldbus networks (PROFIBUS, EtherNet/IP), and power distribution in factory environments.
M8 connectors are a smaller variant of M12, used for compact sensors and actuators where space is limited.
Han (Harting) connectors are heavy-duty rectangular connectors used for machine-to-machine connections in industrial equipment. Sealed variants achieve IP65 and IP67.
Outdoor and Weatherproof Connectors
For outdoor electrical installations (solar, outdoor lighting, EV charging infrastructure), common waterproof connector types include:
- MC4 solar connectors: IP67 rated, designed for outdoor PV string wiring
- Weatherproof circular connectors: M12, M16, M23 for outdoor sensors and controls
- Waterproof terminal blocks: IP65/IP67 rated enclosures for field wiring terminations
Choosing the Right IP Rating
| Application | Recommended IP | Reason |
|---|---|---|
| Indoor electronics | IP40–IP54 | Dust and splash protection |
| Outdoor (rain exposure) | IP65–IP66 | Jet-proof for rain and cleaning |
| Automotive underbody | IP67 | Temporary immersion in puddles |
| Marine (above waterline) | IP67 | Splash and wave exposure |
| Marine (below waterline) | IP68 | Continuous submersion |
| Food processing / washdown | IP69K | High-pressure steam cleaning |
| Buried / underground | IP68 | Continuous soil moisture |
Common Installation Mistakes
Wrong wire seal size: Wire seals must match the wire's outer diameter. A seal that is too large will not compress properly and will leak. Always use the seal specified for your wire gauge.
Incomplete mating: Many waterproof connectors only achieve their IP rating when fully mated and locked. A partially mated connector may feel secure but will not seal. Always verify the locking mechanism has engaged (audible click or visual indicator).
Damaged seals: Silicone seals can be cut or deformed during assembly. Inspect seals before mating and replace any that show damage.
Incorrect potting: If potting compound is used, ensure it is compatible with the connector materials and that all voids are filled. Air pockets in potting compound create leak paths.
Ignoring the unmated IP rating: Most connectors have a lower IP rating when unmated. If a connector will be stored or transported unmated in a wet environment, use the supplied dust/water caps.
CZT Waterproof Connector Range
CZT's automotive connector range includes sealed connectors for automotive, industrial, and outdoor applications, with IP67 and IP68 ratings available across multiple connector families. Contact us for specifications and bulk pricing.
Summary
Selecting a waterproof connector requires matching the IP rating to the actual environmental exposure:
- IP65/IP66 for outdoor rain and jet exposure
- IP67 for temporary immersion (automotive, outdoor)
- IP68 for continuous submersion (marine, underground)
- IP69K for high-pressure washdown (food, agriculture)
Beyond the IP rating, consider the connector type (automotive, industrial, marine), sealing method (interface seal, wire seal, potting), and material compatibility with the chemicals present in your environment. A connector with the right IP rating but wrong materials will still fail prematurely.
