The socket catalog is not one product family. It spans pre-wired RJ45 sockets, PCB modular jacks, shifted RJ45 layouts, SMT sockets, pass-through couplers, keystone modules, surface boxes, IDC terminal blocks, and patch panels. This page turns that wide catalog into buyer-friendly selection groups.
Download Socket Catalog
YH-101 to YH-126, including YH-125 RJ45 SOCKET 8P
Factory-terminated 616 and 623 series socket assemblies for internal Ethernet routing, panel transitions, and OEM equipment wiring.
Board-to-panel Ethernet leads, router enclosures, industrial controllers, and compact network equipment.
51 / 52 / 53 / 55 / 56 series, including 5222, 5224, 5321, 5521, 5622
Board-mounted modular sockets with 4P, 6P, 8P, and 10P options, flanged or unflanged housings, shield options, LED variants, and flat-pin or mushroom-pin contacts.
Networking equipment, telecom terminals, embedded boards, consumer electronics, and control panels.
YH-OFFSET-01 to 07 and YH-SMT-01 to 16
Offset CAT5E RJ45 sockets and SMT modular jacks for tight PCB layouts, low-profile assemblies, and layouts that need connector position control.
Space-constrained PCBs, high-density Ethernet ports, shielded RJ45 layouts, and reflow-oriented assembly.
YH-COU-01 to 20 and YH-net-01 to 27
RJ45/RJ11 couplers, CAT5E/CAT6 modules, keystone jacks, face plates, surface boxes, IDC terminal blocks, and patch panels for network infrastructure.
Structured cabling, telecom rooms, patch panels, surface-mounted network boxes, and field-service interfaces.
Model-Level Selection
Use these families to narrow the first drawing set before asking engineering to confirm pinout, PCB footprint, plating, housing, and cable configuration.
| Family | Catalog Examples | Selection Logic |
|---|---|---|
| Wired Jack | YH-119 623K left, YH-120 616EN, YH-121 623K right, YH-125 RJ45 SOCKET 8P | Choose by cable exit direction, socket body, panel fit, and whether the assembly is used as a pre-terminated internal lead. |

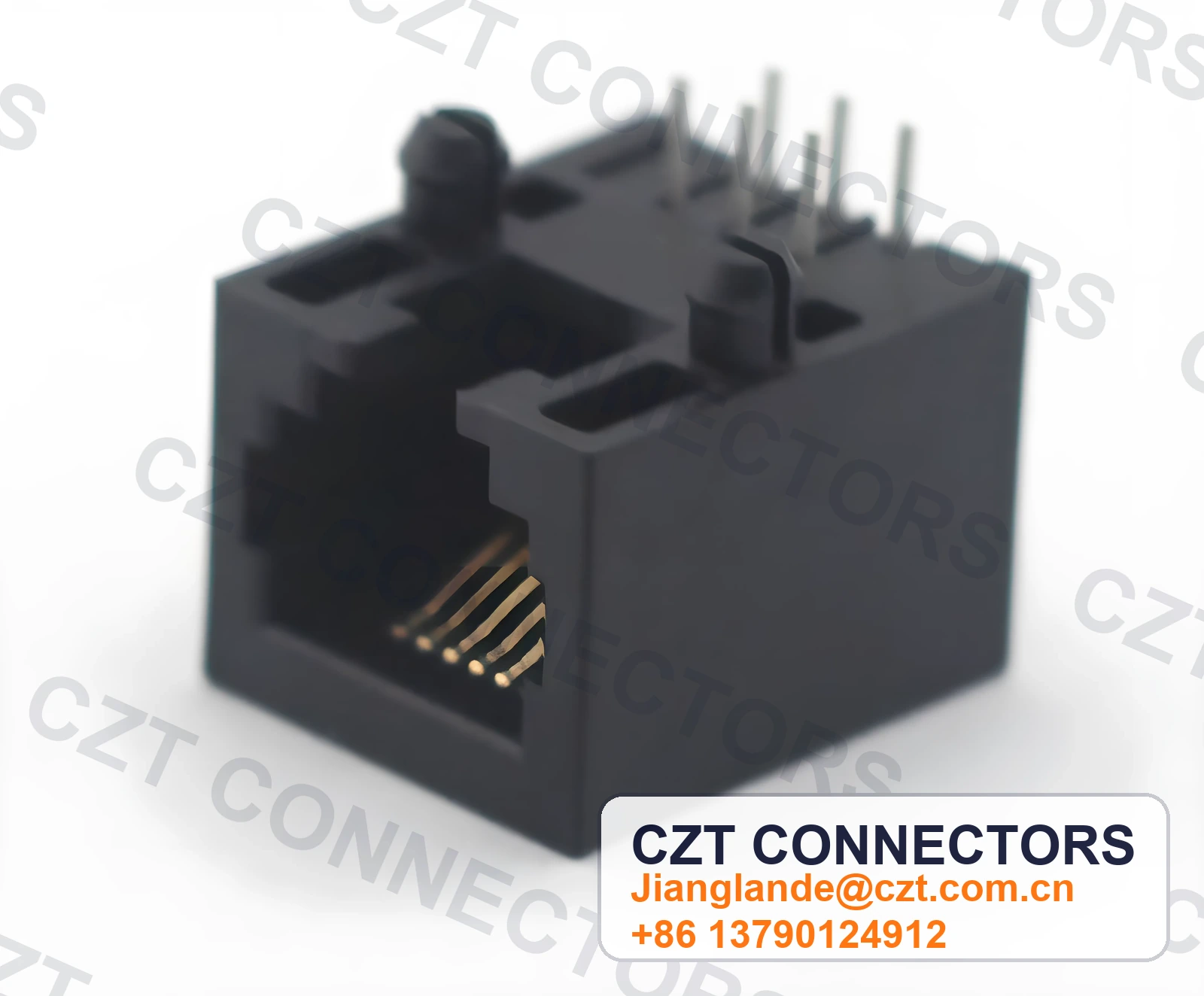

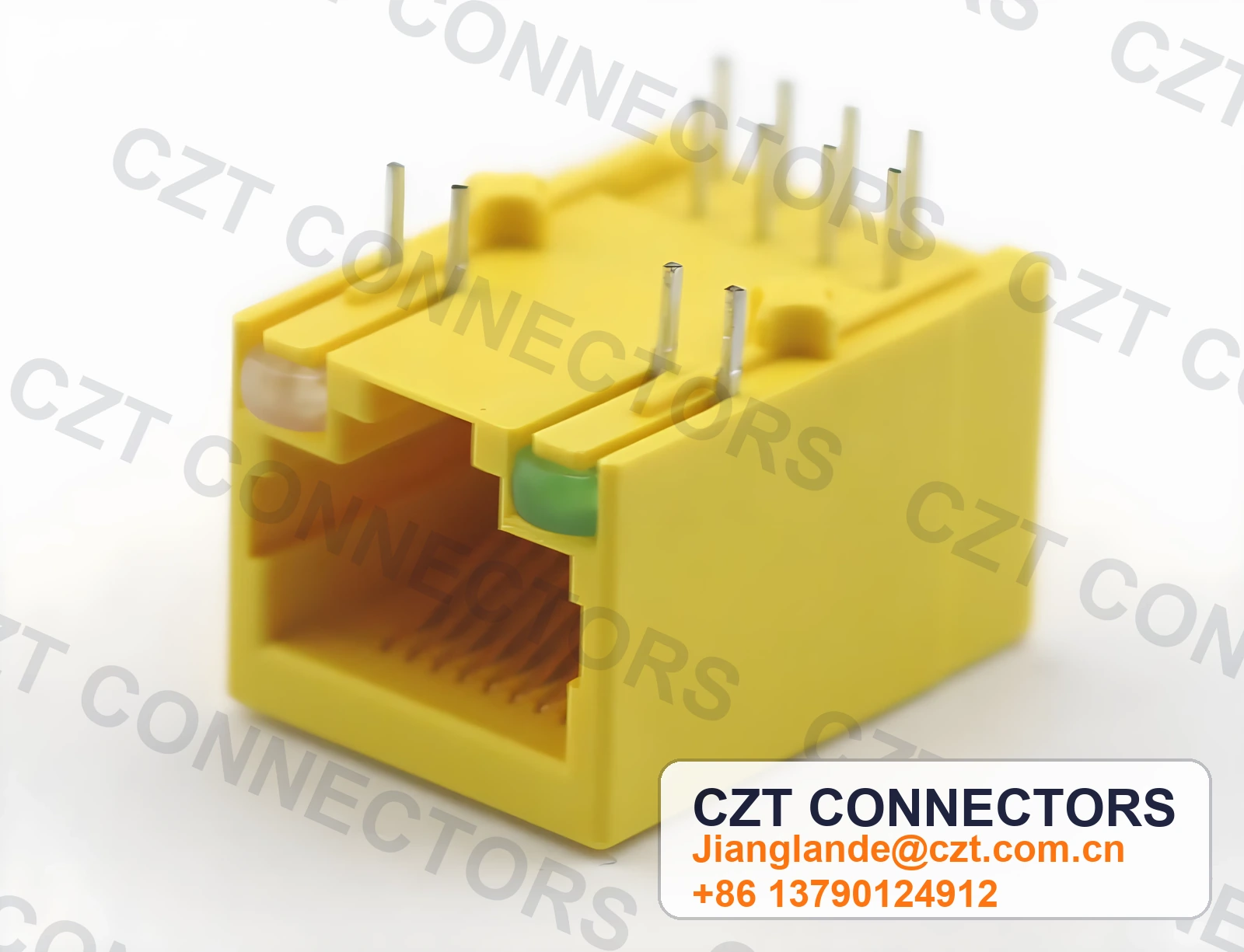

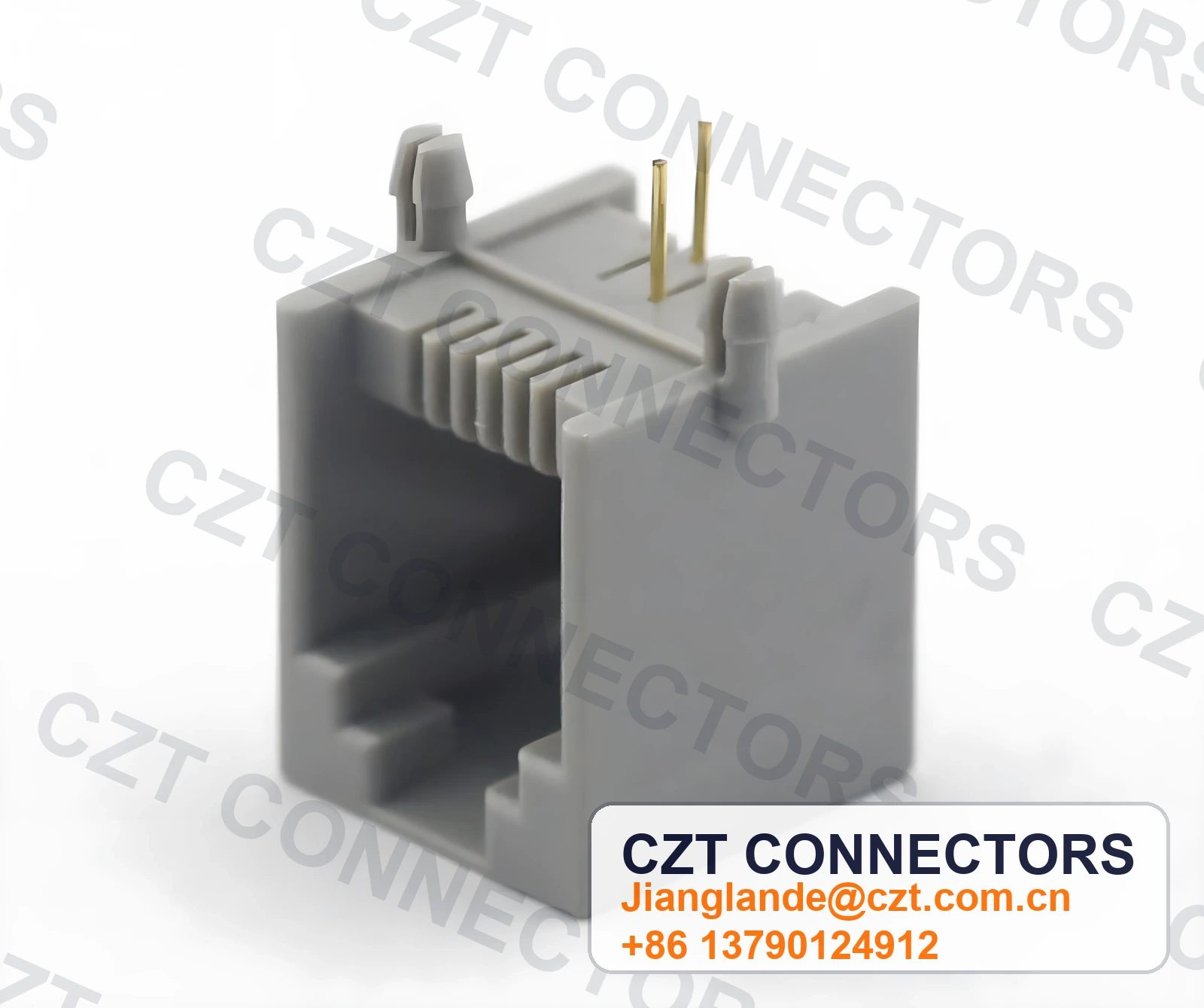

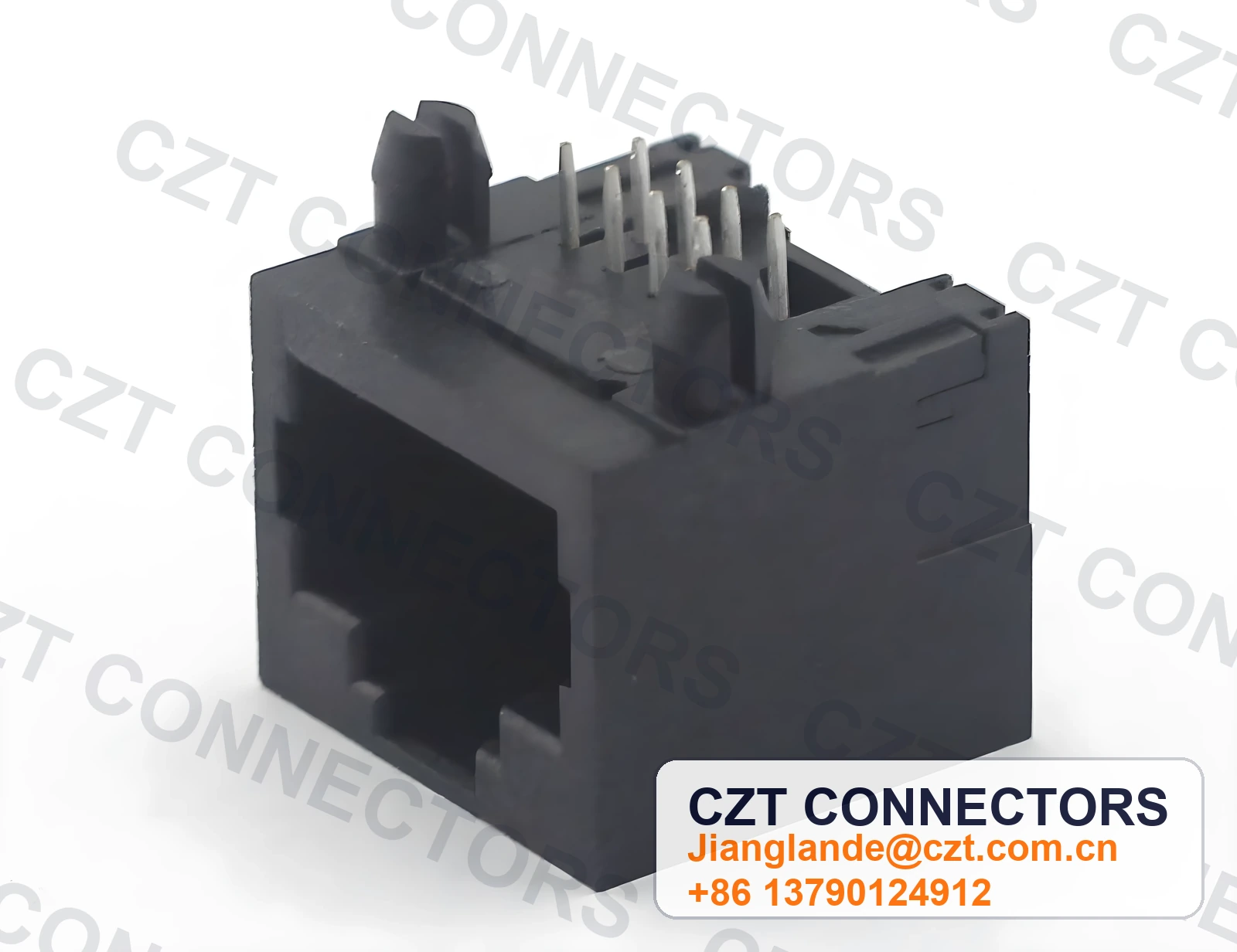

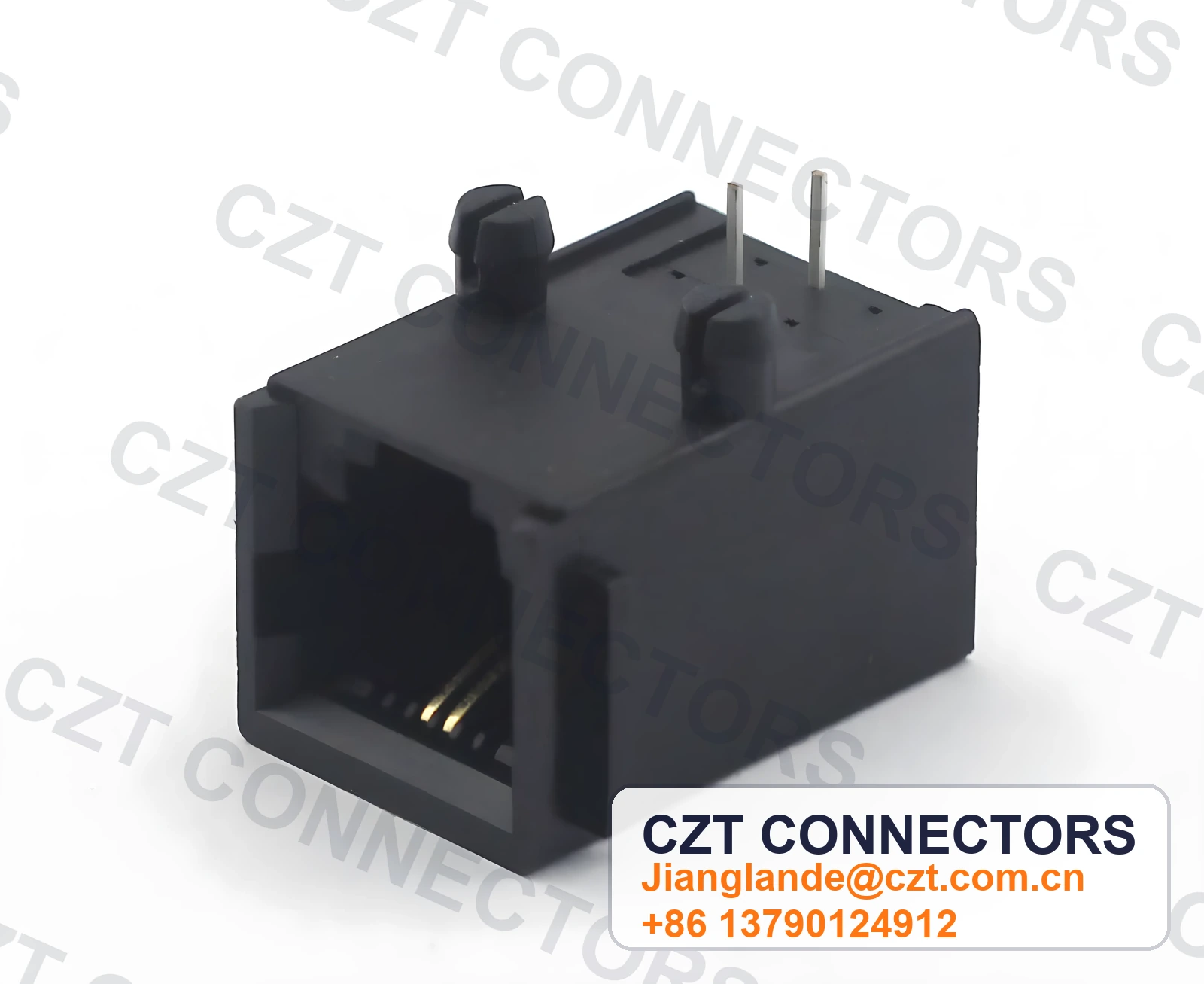

| PCB Jack | YH-52-01 5222 4P, YH-52-08 5222 8P short, 5224 LED, 5321 SMT, 5521 / 5622 families | Choose by port count, pin count, PCB thickness, flange, shield, LED, contact geometry, and housing height. |
| Offset RJ45 | YH-OFFSET-01 RJ45 1X3S CAT5E, YH-OFFSET-02 1X1S CAT5E, YH-OFFSET-03 1X4S CAT5E 30U | Choose when the enclosure opening, port centerline, or adjacent component spacing requires a shifted connector body. |
| SMT RJ45 | YH-SMT-01 5227 8P8C SMT, YH-SMT-02 616SMT, YH-SMT-13 RJ45 1X1 SMT 8P8C-B | Choose when the PCB process prefers surface mount or when through-hole tails conflict with board stack-up. |
| Coupler | YH-COU-16 RJ45, YH-COU-18 CAT5E, YH-COU-20 CAT6, UK 6P variants | Choose by interface type, category target, housing style, panel/mounting requirement, and field replacement needs. |
| Networks | YH-net-03 Keystone jack, YH-net-08 CAT6 module, YH-net-19 110 terminal block, YH-net-26 24/48-port patch panel | Choose by cabling standard, port density, IDC/110 termination preference, and whether the part is used in a panel or surface box. |
RFQ Inputs
Socket and network-accessory requests often start with a vague term such as RJ45 socket, coupler, or keystone jack. The fastest route to a usable quote is to pair the catalog family with the mechanical and electrical constraints below.
The catalog reaches beyond board sockets into keystone jacks, face plates, surface boxes, IDC/110 terminal blocks, and CAT5E/CAT6 patch panels, giving sourcing teams a single RFQ path for equipment-side and cabling-side accessories.
