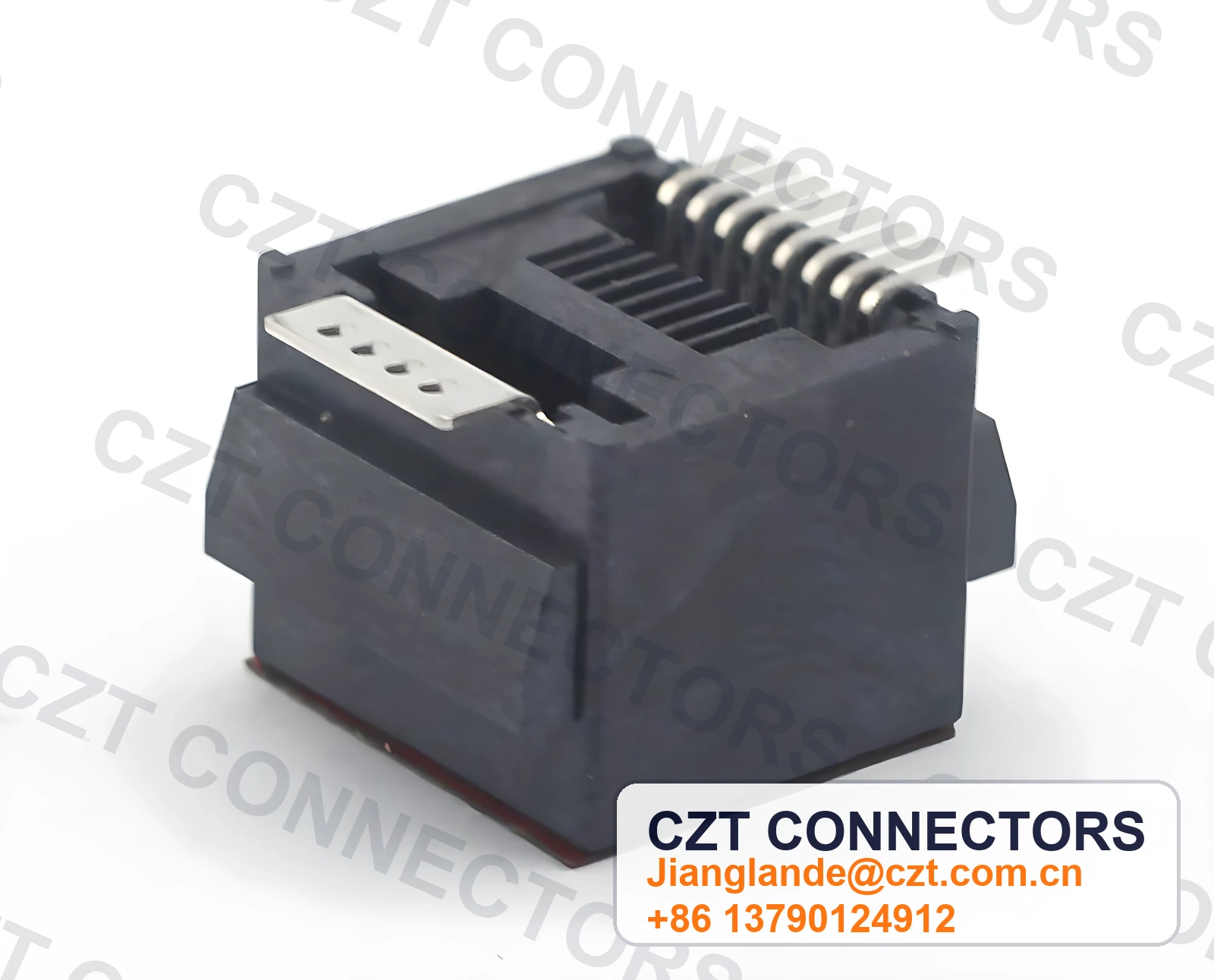

ESM150700 SMT Socket 180° with Ear Tab 8P
Model:ESM150700
The SMT 180° Ear Tab 8P Socket (ESM150700) shares the same 1.5 A / 150V AC electrical rating and 1000 MΩ minimum insulation resistance as its shielded counterpart, with the addition of ear tabs for enhanced mechanical anchoring to the PCB. This makes it particularly well suited for applications subject to vibration or mechanical stress, such as industrial control boards and ruggedized communication hardware.
Key Features
- Ear tab design provides additional mechanical anchoring to PCB
- Rated 1.5 A at 25°C and 150V AC for standard Ethernet applications
- 1000 MΩ minimum insulation resistance ensures reliable isolation
- 180° SMT mounting orientation for horizontal edge-port placement
- Ear tabs improve pull-out resistance under cable strain or vibration
Key Specifications
- Product family: SMT modular socket
- Port / layout: confirm from drawing
- Pin / contact count: 8P
- Mounting / option notes: 180-degree vertical, SMT
- +11 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
SMT Socket 180° with Ear Tab 8P Specifications
Product familySMT modular socket
Port / layoutconfirm from drawing
Pin / contact count8P
Mounting / option notes180-degree vertical, SMT
Drawing statusRequest Drawing during RFQ; local PDF not available from the legacy archive
Asset statusold-site product image available
RFQ checkconfirm drawing revision, mating connector, PCB thickness or panel cutout, plating thickness, LED / light-pipe option, shielding, packaging, and sample requirement
Rated Current1.5 A @ 25°C
Rated Voltage150 V AC
Insulation Resistance1000 MΩ Min @ 100 V DC
Dielectric StrengthCONTACT TO CONTACT:1000 V DC or AC peak;
Contact-to-screen and test panel1500 V DC or AC peak
Test Condition0.5 mA 50 Hz or 60 Hz 1 min
Contact Resistance20 mΩ Max
Insertion / Extraction Force22 N / 2.27 kg Max 30 N Max
Typical Applications
PCB assemblies subject to cable pull-out mechanical stress
Industrial Ethernet nodes in vibration-prone enclosures
Consumer networking equipment requiring robust port anchoring
Embedded systems with frequent plug/unplug cycles
Ruggedized communication modules needing enhanced board retention
Frequently Asked Questions
How do ear tabs improve connector reliability compared to a standard SMT socket?
Ear tabs are additional solder pads or mechanical anchors on the connector body that bond directly to the PCB. They distribute mechanical stress from cable insertion and removal across a larger solder joint area, significantly reducing the risk of pad lifting or connector detachment under repeated use.
Is the ESM150700 electrically identical to the shielded ESM150400?
Both share the same 1.5 A / 150V AC electrical ratings and 1000 MΩ insulation resistance. The primary difference is mechanical: the ESM150700 uses ear tabs for board anchoring rather than a full shield enclosure, making it suitable for applications where EMI shielding is less critical than mechanical retention.
Can the ear tab socket be used in automated SMT pick-and-place assembly?
Yes. The ESM150700 is designed for SMT assembly and is compatible with standard pick-and-place equipment. Confirm the component tape and reel packaging options with CZT to ensure compatibility with your assembly line's feeder configuration and placement tolerances.
SMT Socket 180° with Ear Tab 8P Details
CategoryNew Products
Model NumberESM150700
Naming TemplateProduct name from catalog
BrandCZT
OriginChina
Drawing StatusRequest drawing
