Busbar Power Distribution Components

Compare copper, laminated, flexible and integrated busbars for your power-distribution, insulation, cooling and assembly requirements.

Selection & Drawing Review

Compare conductor geometry, mounting dimensions, insulation and surface finish. Include current, voltage and temperature-rise requirements in the drawing review.

32
Product models
32
With specifications
0
With drawing references
32
Drawing on request

Buyer Intent

Busbars and energy-storage connectors

Busbars for EV battery packs, ESS cabinets, data centers and industrial power modules

32
Models with catalog specifications

Current path

Define current, voltage, creepage, clearance, insulation, and temperature rise target first.

Construction

Compare rigid copper, flexible busbar, laminated busbar, injection-molded, and integrated assemblies.

System fit

Confirm battery module, inverter, cabinet, or power distribution unit packaging constraints.

Technical Focus

Core family
Copper, flexible, laminated, and integrated busbars
What to check
Current rating, insulation, temperature rise, creepage/clearance, fastening method
Processes
Stamping, bending, welding, overmolding, insulation, surface finishing
Information to provide
Drawing, current/voltage target, thermal condition, assembly envelope

Applications

Energy storage

Battery cabinet and ESS module power distribution components.

EV platforms

Battery pack, inverter, and high-voltage distribution busbar structures.

Data centers

Power distribution parts for high-current infrastructure and server systems.

Products (32)

PVC29 Energy Storage Socket
PV

PVC29 Energy Storage Socket

PVC29

  • Rated Current: 500 A(240mm²)
  • Rated Voltage: 1500 V DC
  • Insulation Impedance: ≥ 2000 MΩ
Request Drawing
PVC29 Plug Flexible Copper Busbar, Orange
Busbar

PVC29 Plug Flexible Copper Busbar, Orange

PVC29

  • Rated Current: 500 A(240mm²)
  • Rated Voltage: 1500 V DC
  • Contact Resistance: <0.5 mΩ
Request Drawing
PVC29 Fuse Busbar Plug 1, Orange
Busbar

PVC29 Fuse Busbar Plug 1, Orange

PVC29

  • Rated Current: 500 A(240mm²)
  • Rated Voltage: 1500 V DC
  • Insulation Impedance: ≥ 2000 MΩ
Request Drawing

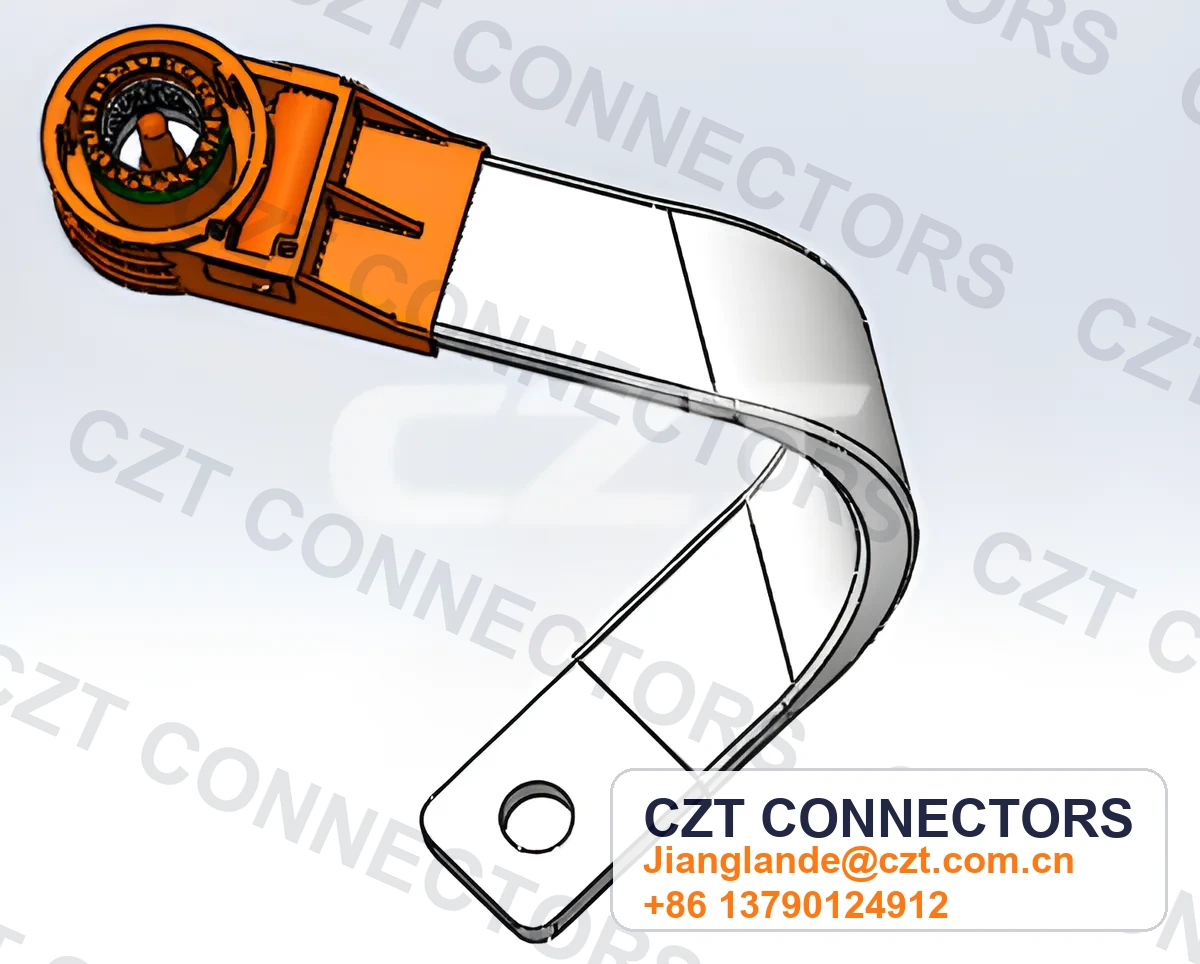

PVC29 Fuse Busbar Plug 2, Orange
Busbar

PVC29 Fuse Busbar Plug 2, Orange

PVC29

  • Rated Current: 500 A(240mm²)
  • Rated Voltage: 1500 V DC
  • Insulation Impedance: ≥ 2000 MΩ
Request Drawing

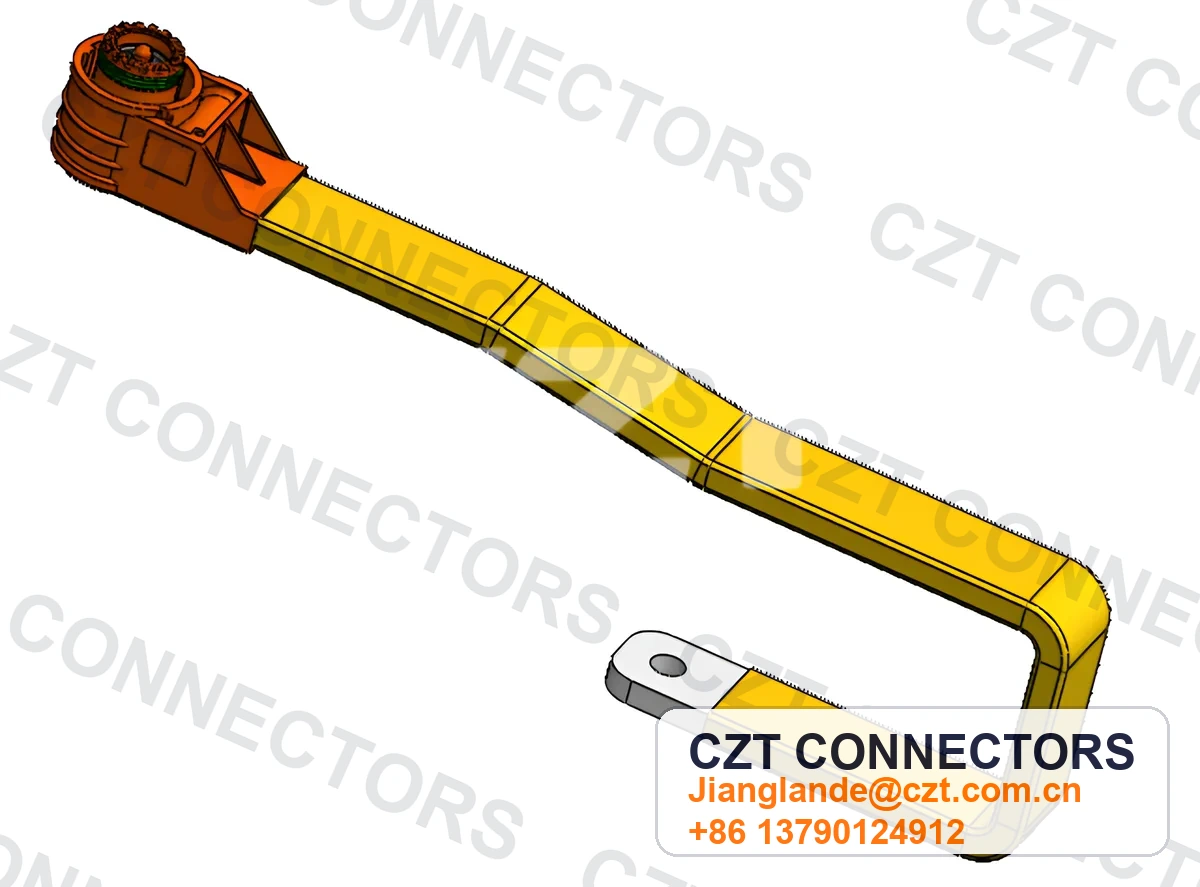

PVC29 Busbar Plug Assembly
Busbar

PVC29 Busbar Plug Assembly

PVC29

  • Rated Current: 500 A(240mm²)
  • Rated Voltage: 1500 V DC
  • Insulation Impedance: ≥ 2000 MΩ
Request Drawing

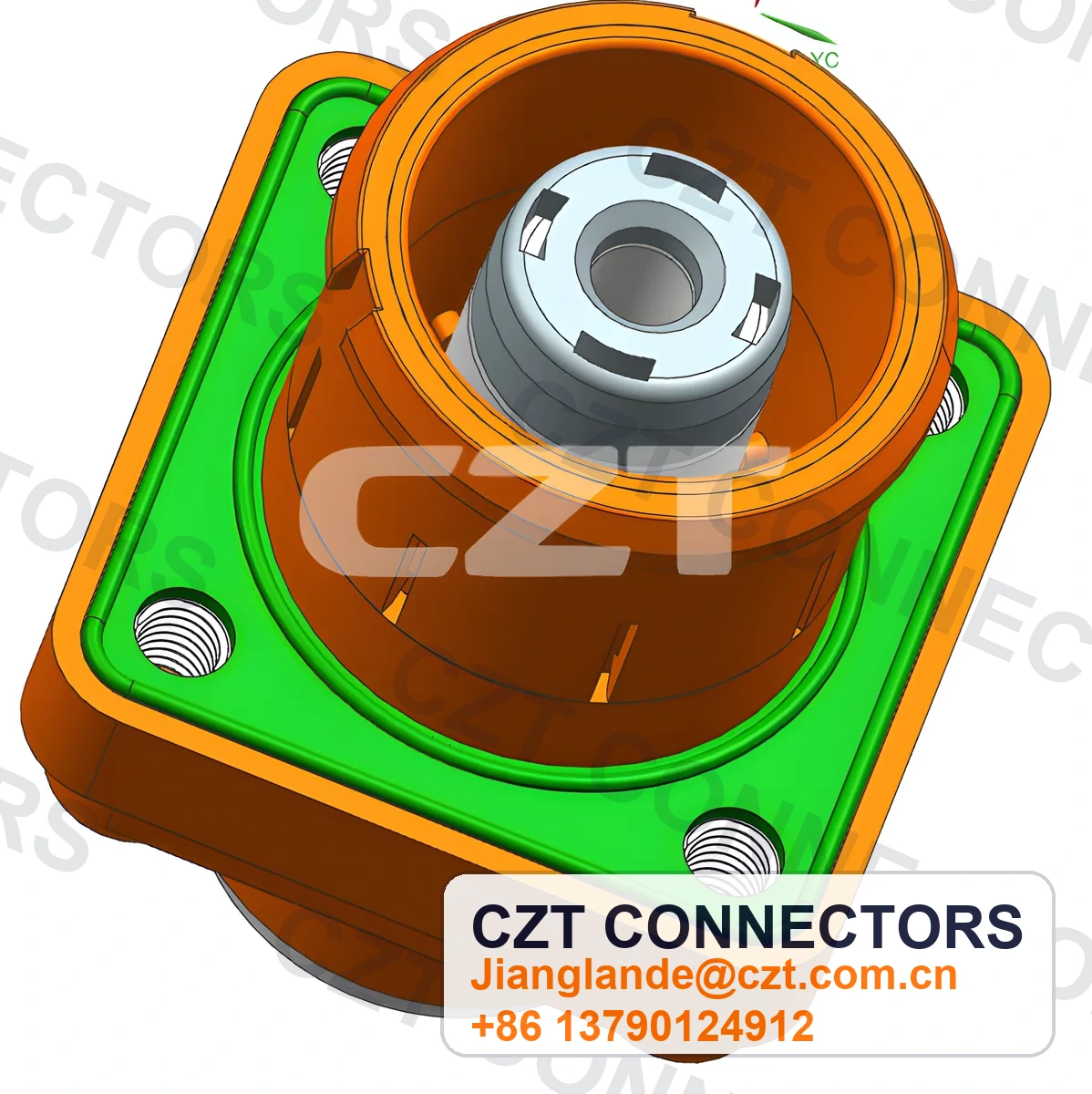

PVC51 Crimp Socket 120°, Orange
PV

PVC51 Crimp Socket 120°, Orange

PVC51

  • Rated Current: 500 A(240mm²)
  • Rated Voltage: 1500 V DC
  • Insulation Impedance: ≥ 2000 MΩ
Request Drawing

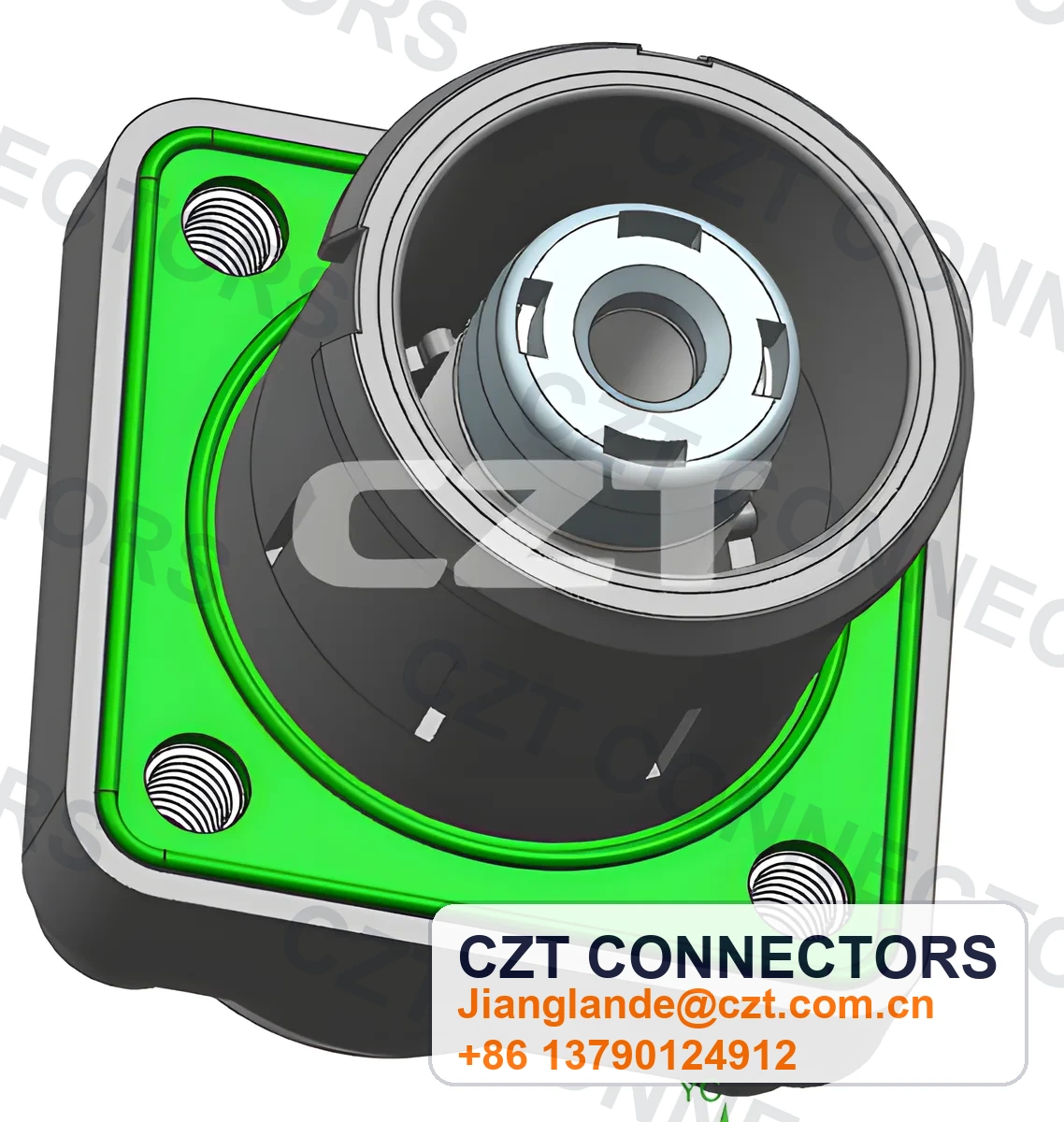

PVC51 Crimp Socket 90°, Black
PV

PVC51 Crimp Socket 90°, Black

PVC51

  • Rated Current: 500 A(240mm²)
  • Rated Voltage: 1500 V DC
  • Insulation Impedance: ≥ 2000 MΩ
Request Drawing

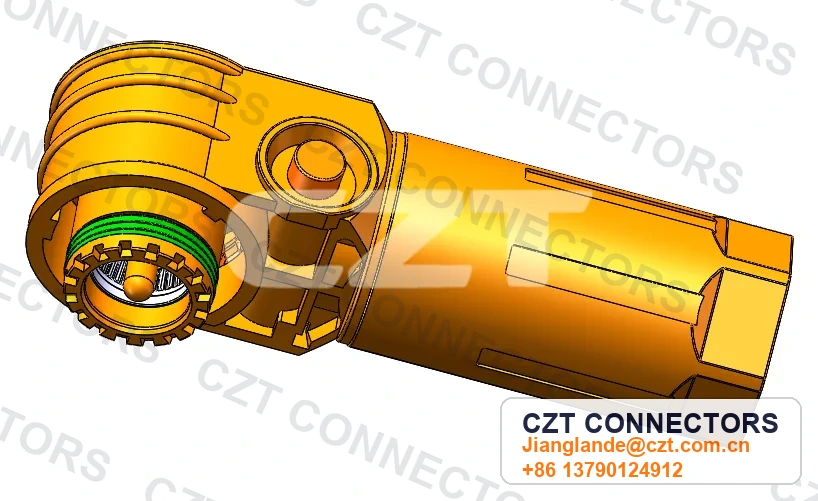

PVC51 Plug 120°, Orange
PV

PVC51 Plug 120°, Orange

PVC51

  • Rated Current: 500 A(350kcmil)
  • Rated Voltage: 1500 V DC
  • Insulation Impedance: ≥ 2000 MΩ
Request Drawing

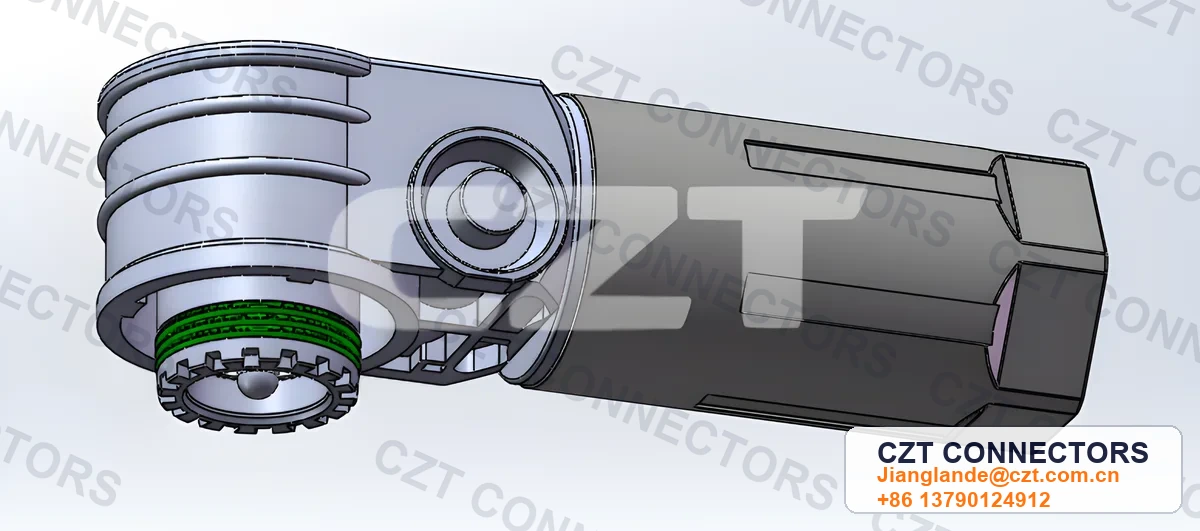

PVC51 Plug 90°, Black
PV

PVC51 Plug 90°, Black

PVC51

  • Rated Current: 500 A(350kcmil)
  • Rated Voltage: 1500 V DC
  • Insulation Impedance: ≥ 2000 MΩ
Request Drawing
PVC51 Threaded Socket, Black
PV

PVC51 Threaded Socket, Black

PVC51

  • Rated Current: 500 A(240mm²)
  • Rated Voltage: 1500 V DC
  • Insulation Impedance: ≥ 2000 MΩ
Request Drawing

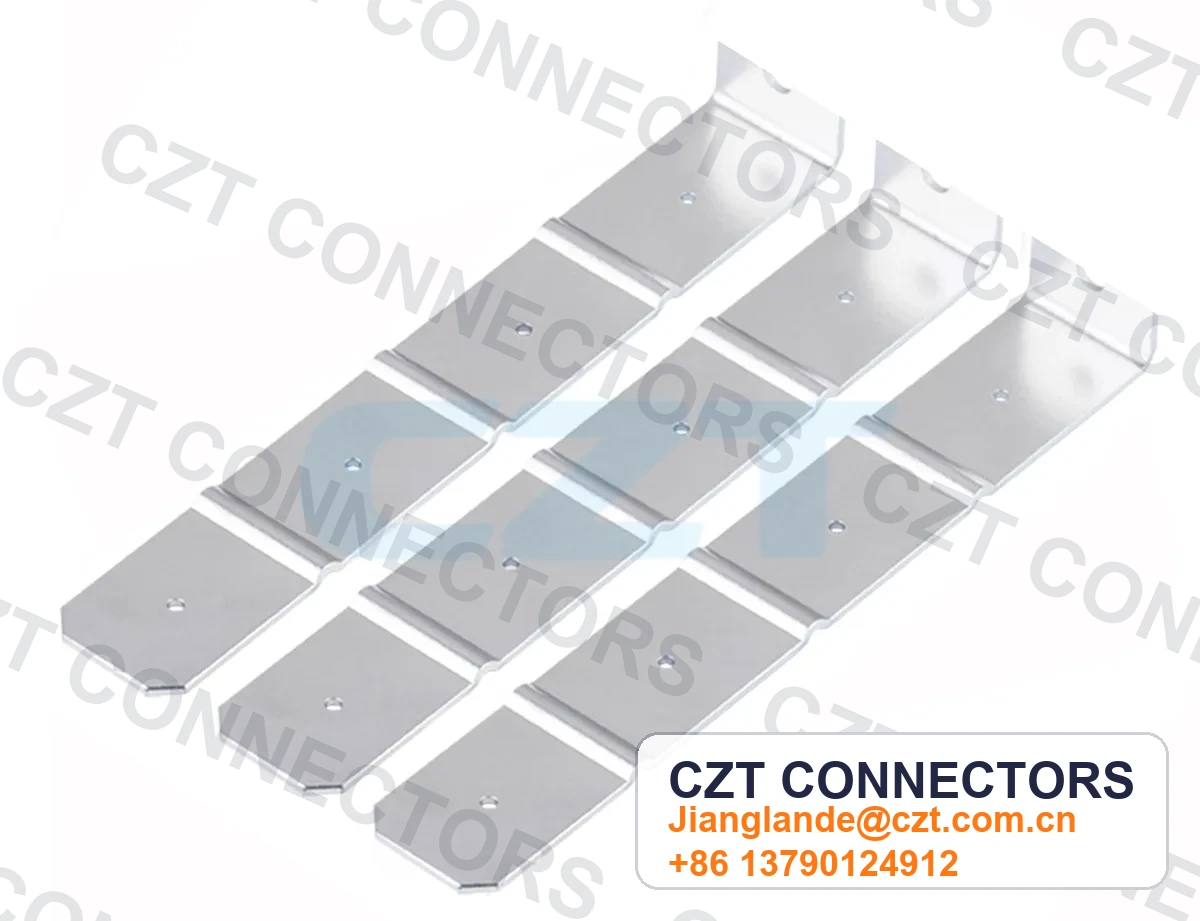

Energy Storage Battery Pack Busbar Tab
ESS

Energy Storage Battery Pack Busbar Tab

  • Operating Temperature: -40 °C to +125 °C
  • Storage Temperature: -5 °C to +45 °C
  • Relative Humidity: <80%
Request Drawing

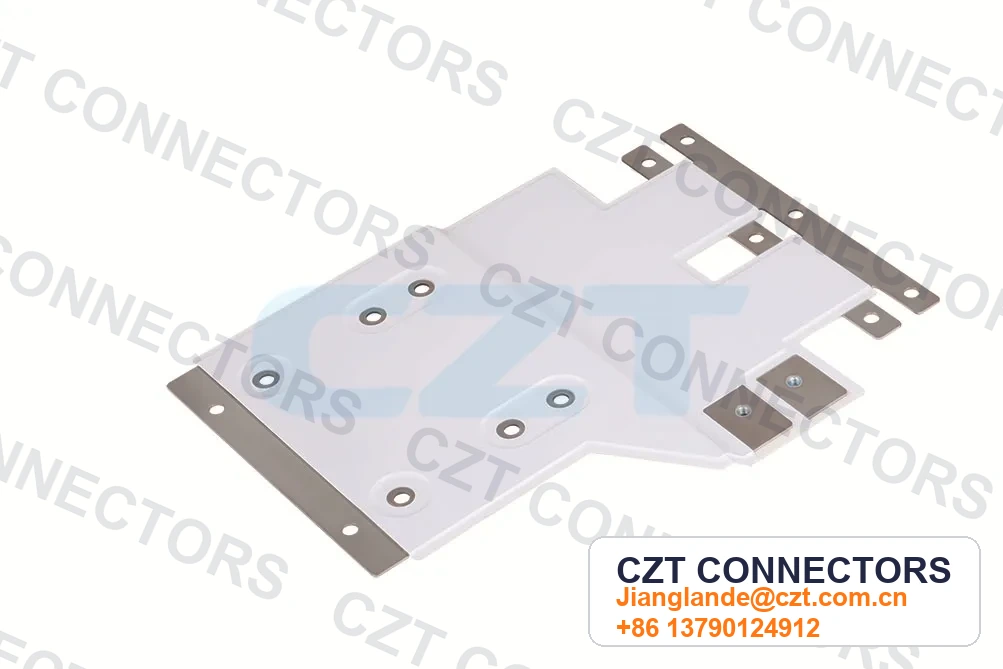

Energy Storage Laminated Busbar
ESS

Energy Storage Laminated Busbar

  • Operating Temperature: -40 °C to +125 °C
  • Storage Temperature: -5 °C to +45 °C
  • Relative Humidity: <80%
Request Drawing
