Choose the connection point
Start with cable, equipment or module
The catalog includes four PV connector references and three junction-box references. Use the connection format to narrow the list, then review the specific electrical and mechanical drawing.
AN05 · PV1P-A
Cable-end PV connectors
Start here for a cable-end connection. Compare the contact, housing and cable-entry dimensions in the selected drawing, then identify the exact mating connector.
AN06 · PV1P-B
Panel-mount PV connectors
Start here for an equipment-side interface. Confirm mounting dimensions, panel thickness, rear termination and installation clearance before choosing a variant.
BOX-1x · BOX-3x · BOX-ZN01
Solar module junction boxes
Compare the module connection layout and electrical requirements. Review box dimensions, cable exits, diode requirements and the sealing process against the module design.
Compare solar PV connector and junction-box models
These values are listed in the published CZT product specifications. Current options depend on the selected variant; confirm cable range, rating conditions and the current drawing before approval. BOX-ZN01 working limits are shown separately from the other models' rated values.
| Model / connection | Voltage | Current options | Protection entry | Drawing inquiry |
|---|---|---|---|---|
| AN05Cable-end connector | 1500 V DCRated | 36A / 41A / 50ARated | IP68 (mated) | Request drawing |
| AN06Panel-mount connector | 1500 V DCRated | 36A / 41A / 50ARated | IP68 (mated) | Request drawing |
| PV1P-ACable-end connector | 1500 V DCRated | 36A / 41A / 50A / 60A / 80ARated | IP68 (mated) | Request drawing |
| PV1P-BPanel-mount connector | 1500 V DCRated | 36A / 41A / 50A / 60A / 80ARated | IP68 (mated) | Request drawing |
| BOX-1xPV junction box | 1500 V DCRated | 20A / 25ARated | IP68 | Request drawing |
| BOX-3xPV junction box | 1000 V DCRated | 13ARated | IP68 | Request drawing |
| BOX-ZN01Smart PV junction box | <80 VWorking | <35AWorking | IP68 | Request drawing |
For certification, approved mating pairs and sealing test conditions, request the documents for the exact part number and assembly.
Products (7)

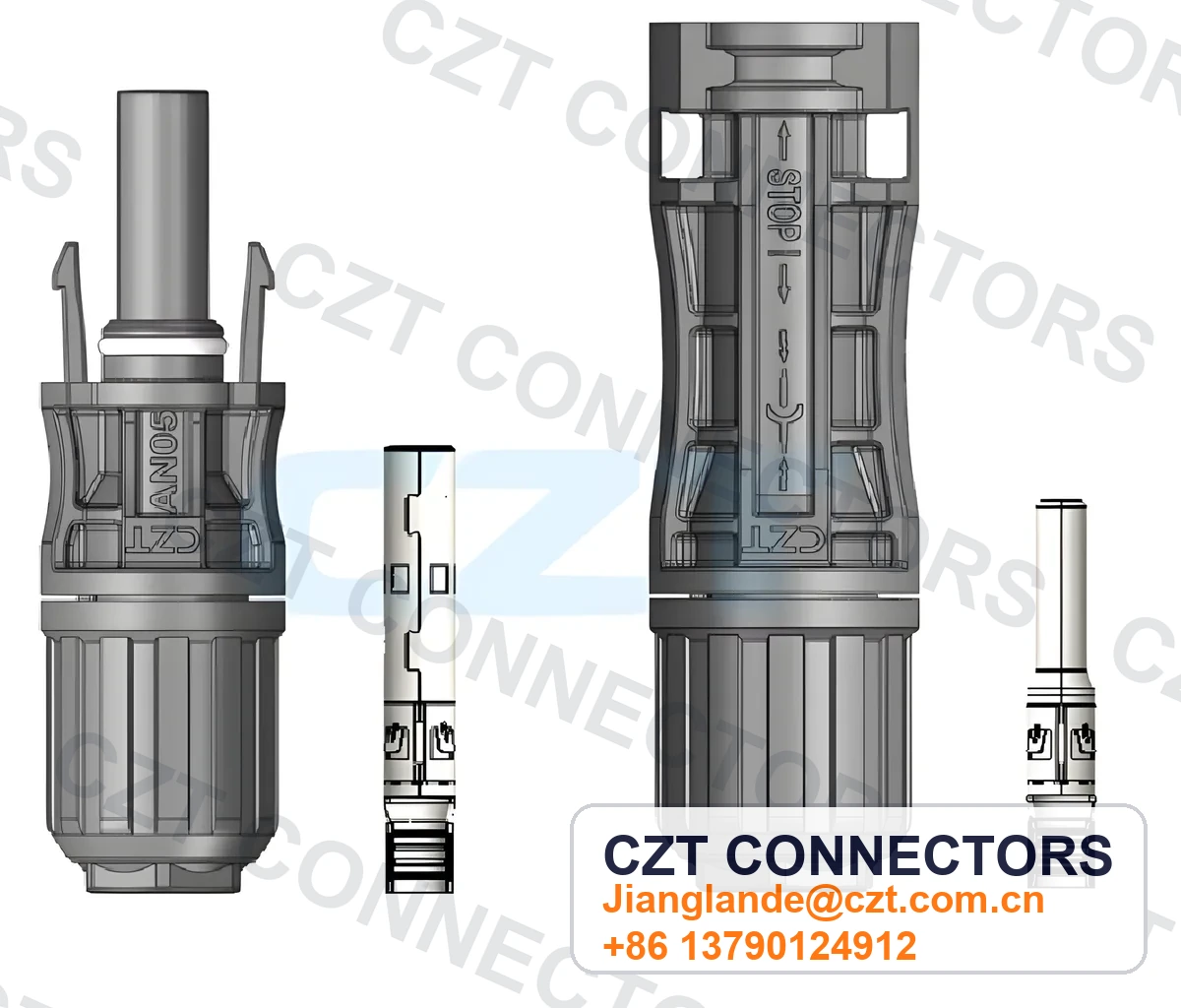

PVAN05 PV Cable-End Connector
- Rated Current: 36 A / 41 A / 50 A
- Rated Voltage: 1500 V DC
- Waterproof Class: IP68 (mated)

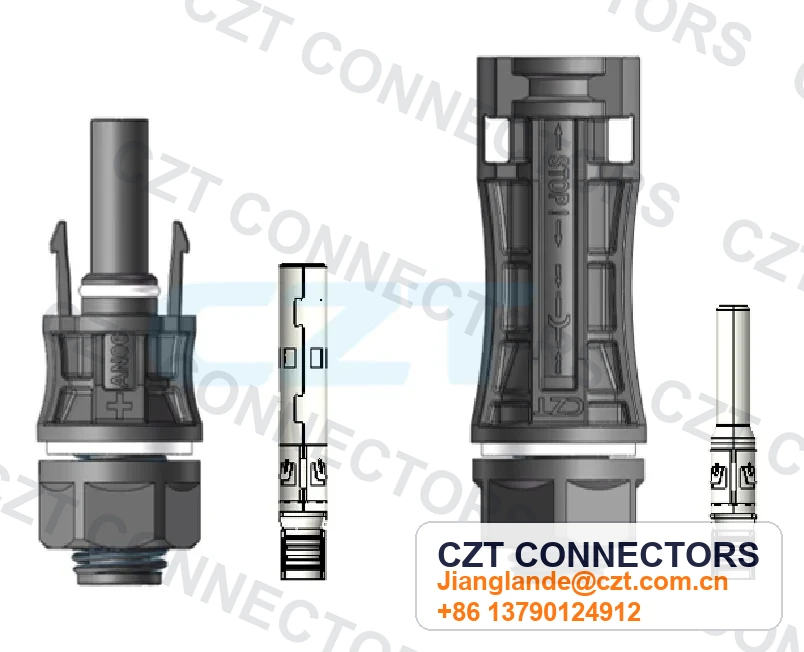

PVAN06 PV Panel-Mount Connector
- Rated Current: 36 A / 41 A / 50 A
- Rated Voltage: 1500 V DC
- Waterproof Class: IP68 (mated)

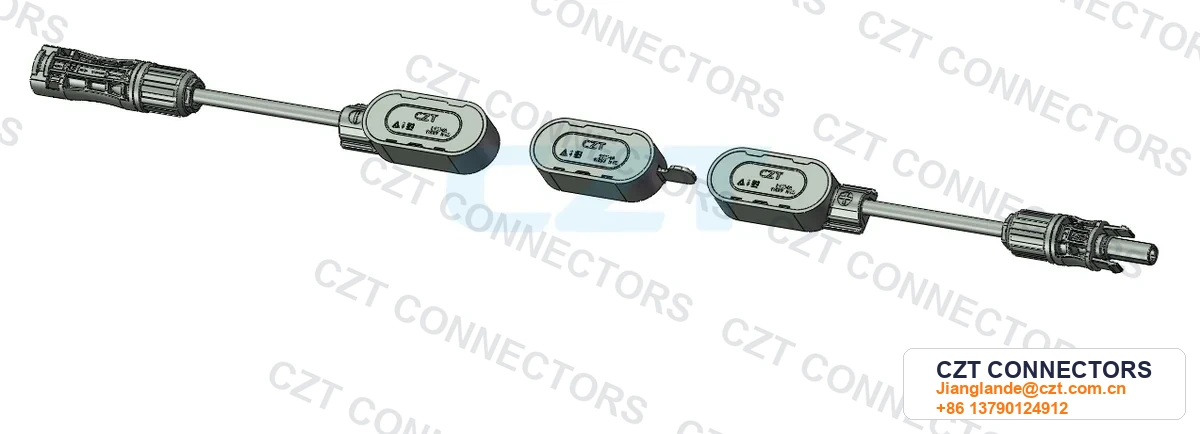

EnergyBOX-1x PV Junction Box
- Rated Current: 20 A / 25 A
- Rated Voltage: 1500 V DC
- Protection Rating: IP68

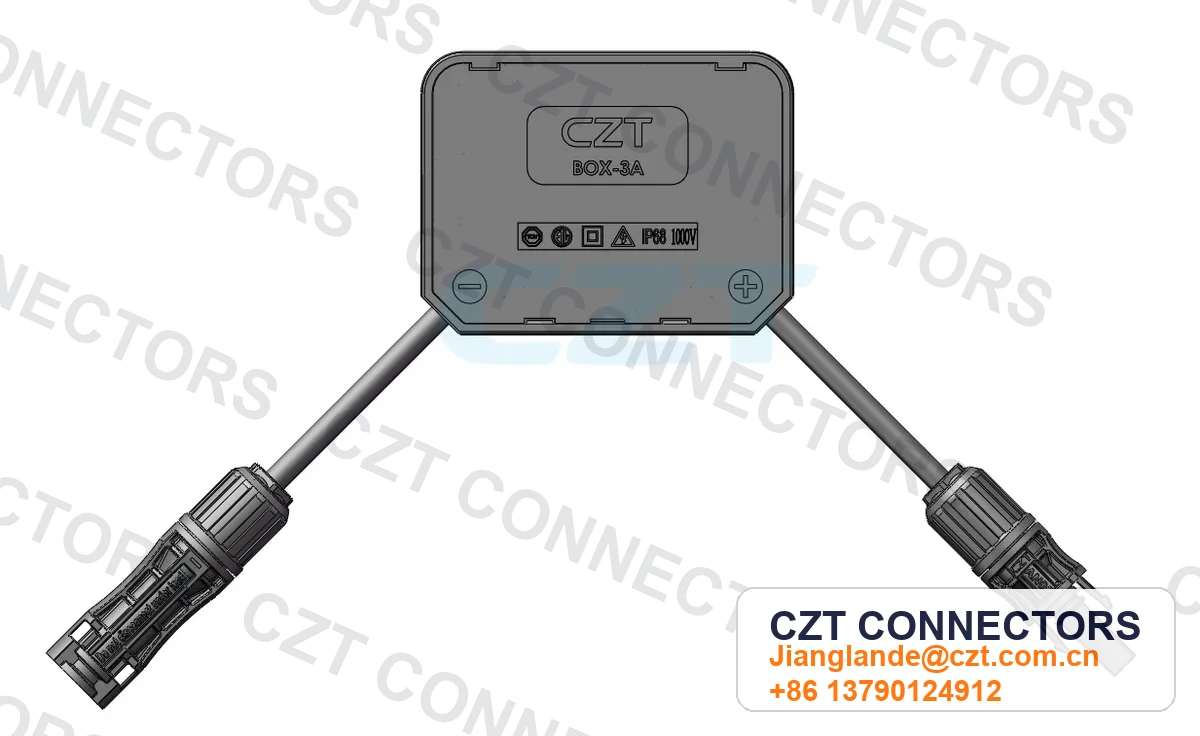

EnergyBOX-3x PV Junction Box
- Rated Current: 13 A
- Rated Voltage: 1000 V DC
- Protection Rating: IP68

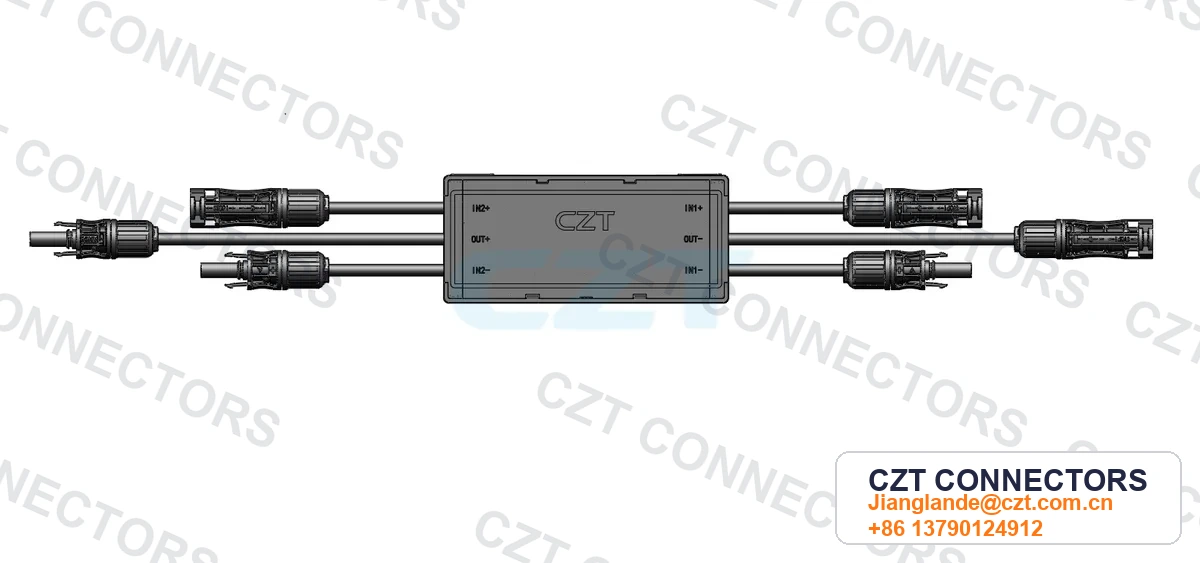

EnergyBOX-ZN01 Smart PV Junction Box
- Working Voltage: <80 V
- Working Current: <35 A
- Protection Rating: IP68

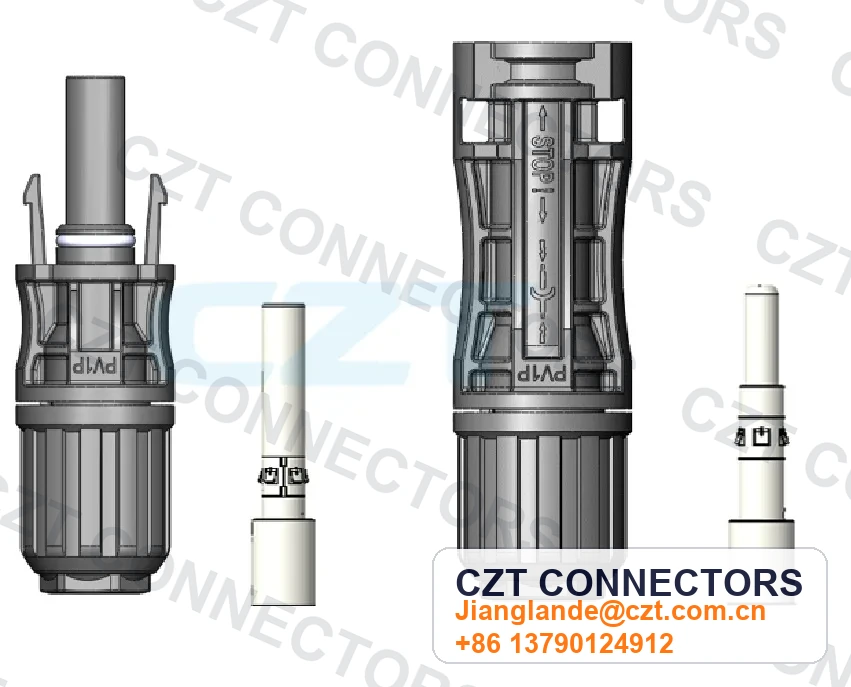

PVPV1P-A PV Cable-End Connector
- Rated Current: 36 A / 41 A / 50 A / 60 A / 80 A
- Rated Voltage: 1500 V DC
- Waterproof Class: IP68 (mated)

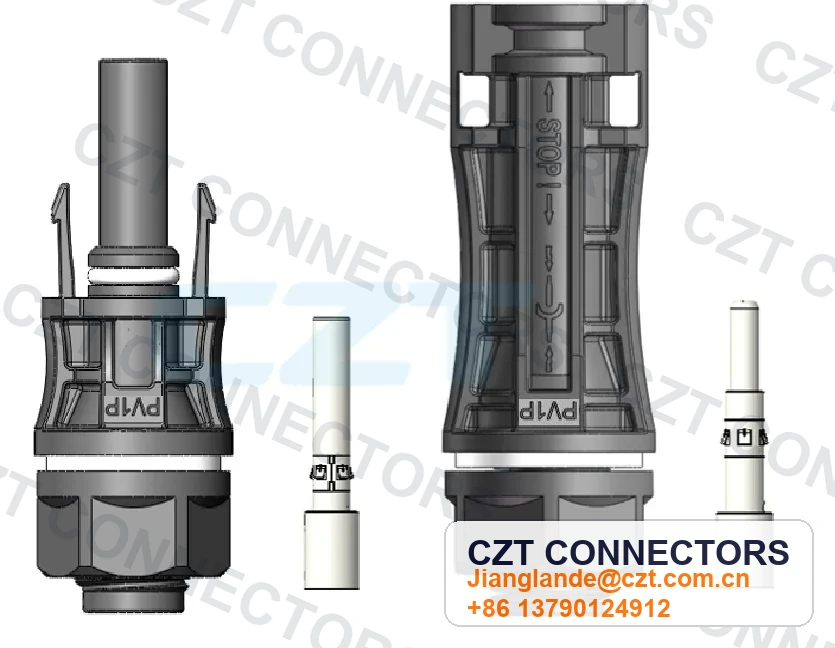

PVPV1P-B PV Panel-Mount Connector
- Rated Current: 36 A / 41 A / 50 A / 60 A / 80 A
- Rated Voltage: 1500 V DC
- Waterproof Class: IP68 (mated)
Prepare a model-specific inquiry
Send the details that determine fit
Include your application and interface drawing so electrical, mechanical and purchasing requirements can be reviewed together. Specify the documentation you need for engineering qualification.
Request PV Drawing & QuoteElectrical requirements
DC system voltage, continuous current, module or equipment application, and operating temperature range.
Cable and mating interface
Conductor cross-section, cable outside diameter, cable specification, mating part number and any existing interface drawing.
Mechanical and qualification needs
Mounting dimensions, required sealing conditions, target market, and the certificates or test reports your qualification process requires.
Purchasing details
Sample quantity, expected production volume, delivery destination and target schedule. Request pricing and availability for the selected configuration.
Drawings, certificates and product resources
Request the current dimensional drawing, cable and termination requirements, and applicable certificates or test reports by model. For junction boxes, include diode, module-interface and sealing-process requirements. Company profiles provide broader product context; use the selected part's documents for qualification.
Solar PV connector selection questions
Which CZT solar PV connectors have 1500V DC options?
The catalog lists 1500V DC for AN05, AN06, PV1P-A and PV1P-B connectors, and for the BOX-1x junction box. BOX-3x is listed at 1000V DC. BOX-ZN01 has a working-voltage entry below 80V, which is a different specification. Confirm the exact variant and current drawing before selection.
How do I choose between AN05, AN06 and PV1P models?
AN05 and PV1P-A are cable-end references; AN06 and PV1P-B are panel-mount references. AN05 and AN06 list 36A / 41A / 50A options, while PV1P-A and PV1P-B list 36A / 41A / 50A / 60A / 80A options. Send the application, cable details and mating interface so the specific configuration can be reviewed.
Are these connectors MC4-compatible or certified for cross-brand mating?
Request written confirmation for the exact CZT part and proposed mating connector. This catalog comparison does not establish MC4 compatibility, cross-brand mating approval or a product certificate. Include both part numbers and request the applicable drawing, certificate scope and mating-pair documentation.
What does the IP68 entry cover?
The four connector records list IP68 in the mated condition; the junction-box records list IP68. Request the test conditions and assembly instructions for the exact model, including the selected cable, seals and mating parts, as part of qualification.
Which cable sizes and current ratings should I specify?
The current values in the comparison are catalog options, not a current rating for every cable or configuration. Provide conductor cross-section, cable outside diameter, operating current and ambient temperature. Request the cable range and current-rating conditions for the selected variant.
How do I request a PV connector drawing or quote?
Choose Request drawing beside a model to open an inquiry with that product already selected. Include your interface drawing, electrical and cable requirements, qualification documents, quantities and target schedule. Ask for the current drawing revision and the documents required for your approval process.
