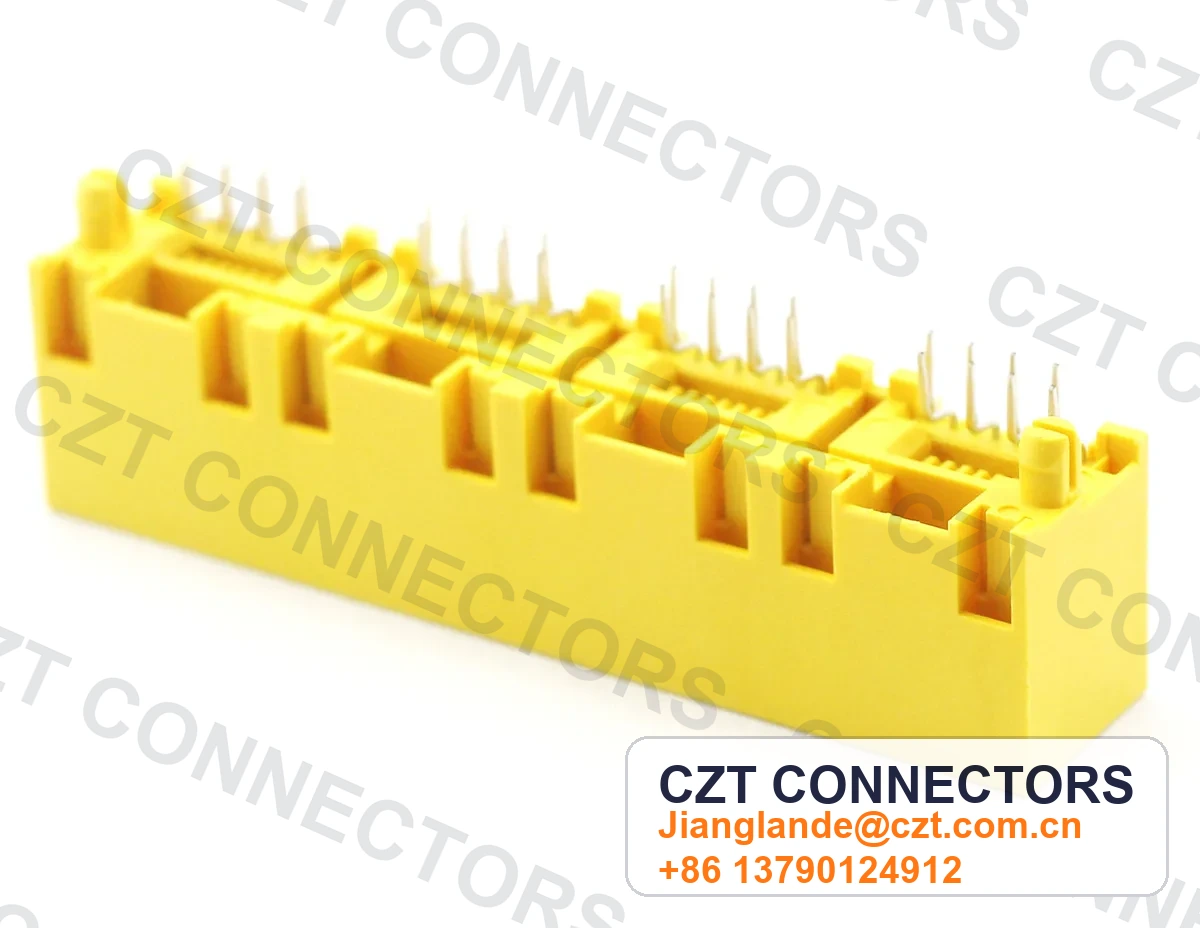

E52101100 Quad-Port PCB Mount Shielded LED RJ45 Modular Jack
Model:E52101100
Quad-Port PCB Mount Shielded LED RJ45 Modular Jack (E52101100) is organized for RJ45 and modular-jack RFQ review. Use this record to confirm quad-port layout, PCB-mount orientation, shielded led configuration, and the rj45 modular jack drawing before sample release. Key electrical items such as current rating, voltage rating, insulation resistance, dielectric strength, and contact resistance are normalized below for faster comparison.
Key Features
- Quad-port 8-position RJ45 socket without LED indicators at 15.6mm height
- Four-port single-body housing reduces PCB assembly complexity
- Rated 1.5A per contact at 25°C with 150V AC voltage rating
- 1000 MΩ minimum insulation resistance for low-leakage signal paths
- Cost-optimized design for applications with external or no LED indication
Key Specifications
- Rated Current: 1.5 A @ 25°C
- Rated Voltage: 150 V AC
- Insulation Resistance: 1000 MΩ Min @ 100 V DC
- Dielectric Strength: Contact-to-contact: 1000 V DC or AC peak;
- +4 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
Quad-Port PCB Mount Shielded LED RJ45 Modular Jack Specifications
Rated Current1.5 A @ 25°C
Rated Voltage150 V AC
Insulation Resistance1000 MΩ Min @ 100 V DC
Dielectric StrengthContact-to-contact: 1000 V DC or AC peak;
Contact-to-screen and test panel1500 V DC or AC peak
Test Condition0.5 mA 50 Hz or 60 Hz 1 min
Contact Resistance20 mΩ Max
Insertion / Extraction Force22 N / 2.27 kg Max 30 N Max
Typical Applications
Unmanaged Ethernet switches without port status LED requirements
Embedded quad-port Ethernet modules in sealed or headless systems
Industrial automation controllers with software-only status reporting
Cost-sensitive networking hardware where LED indication is not required
Redundant quad-port network interfaces in server backplane designs
Frequently Asked Questions
When is a quad-port RJ45 without LEDs the preferred choice?
LED-free variants are preferred in headless or embedded systems where port status is monitored via software, SNMP, or a separate management interface rather than physical indicators. They also suit sealed enclosures where LEDs are not visible, and cost-sensitive designs where eliminating LED drive circuitry reduces BOM cost.
Is the PCB footprint of the no-LED variant compatible with the LED variant at the same height?
The signal contact footprint is typically identical, but the LED variant includes additional pads for LED anode and cathode connections. If you design a PCB for the LED variant, the no-LED variant can often be populated without modification, but unused LED pads should be left open or tied appropriately per the datasheet.
What shielding options are available for this quad-port assembly?
Shielding availability depends on the specific order code. CZT offers both shielded and unshielded variants in the 5224-LED series. Shielded versions include a metal shell connected to chassis ground via PCB pads, providing EMI suppression required for FCC Class B or CE compliance in commercial networking equipment.
Quad-Port PCB Mount Shielded LED RJ45 Modular Jack Details
CategoryRJ45/Ethernet
SubcategoryJACK Series
Model NumberE52101100
Naming TemplateRJ45: Port Count + Orientation + Shield/LED + Family
Port CountQuad-Port
OrientationPCB Mount
Shield / LEDShielded LED
FamilyRJ45 Modular Jack
BrandCZT
OriginChina
Drawing StatusRequest drawing
