RJ45/Ethernet / JACK Series

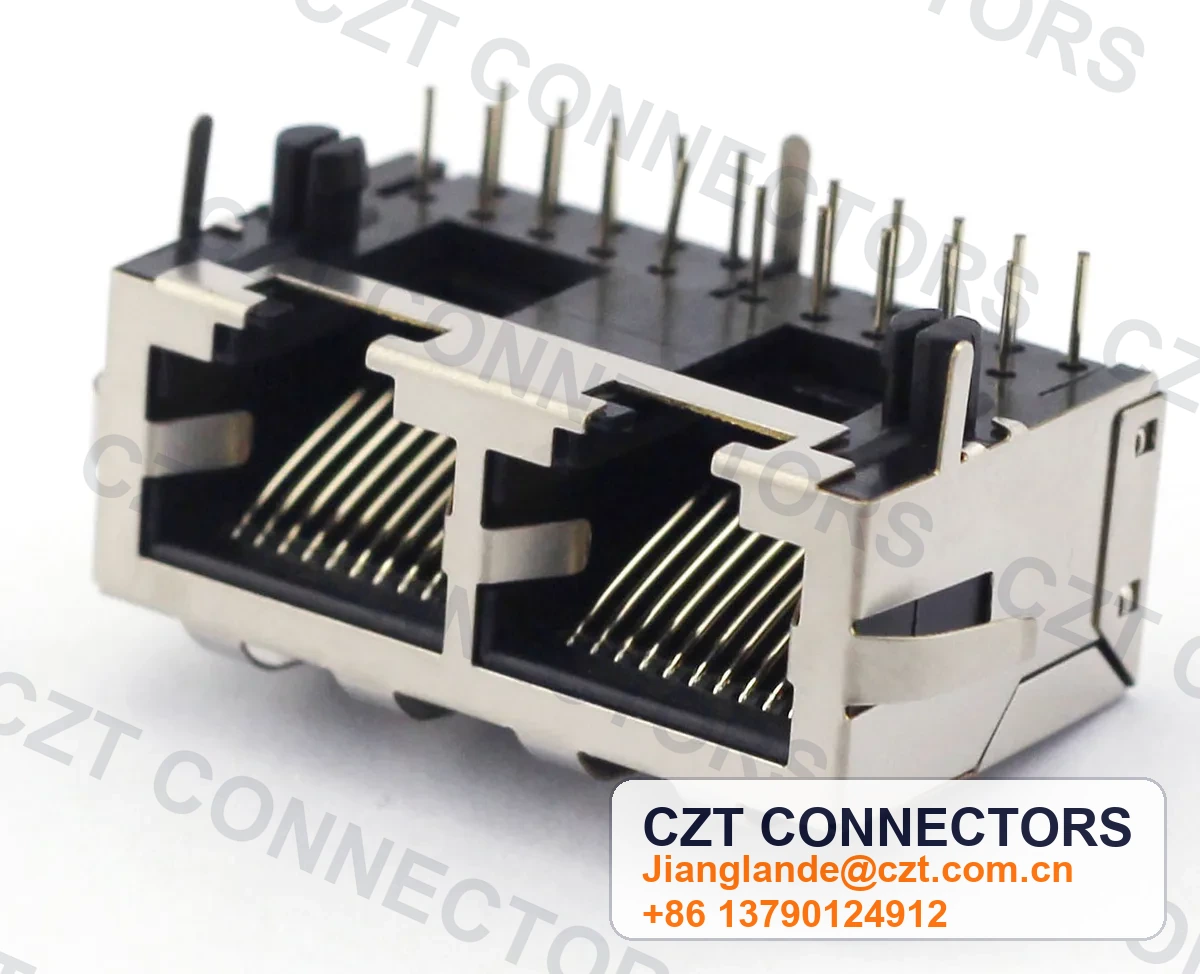

E56C08012602 Dual-Port PCB Mount Shielded Modular Jack
Model:E56C08012602
Dual-Port PCB Mount Shielded Modular Jack (E56C08012602) is organized for RJ45 and modular-jack RFQ review. Use this record to confirm dual-port layout, PCB-mount orientation, shielded configuration, and the modular jack drawing before sample release. Key electrical items such as current rating, voltage rating, insulation resistance, dielectric strength, and contact resistance are normalized below for faster comparison.
Key Features
- Dual-port 10-position RJ45 jack in a single PCB footprint
- Available with or without reed switch for port detection
- Rated 1.5A at 25°C and 150V AC operating voltage
- 1000V DC/AC peak dielectric strength between contacts
- Reed switch variant enables plug insertion detection logic
Key Specifications
- Rated Current: 1.5 A @ 25°C
- Rated Voltage: 150 V AC
- Insulation Resistance: 1000 MΩ Min @ 100 V DC
- Dielectric Strength: Contact-to-contact: 1000 V DC or AC peak;
- +4 more specs below
Dual-Port PCB Mount Shielded Modular Jack Specifications
Rated Current1.5 A @ 25°C
Rated Voltage150 V AC
Insulation Resistance1000 MΩ Min @ 100 V DC
Dielectric StrengthContact-to-contact: 1000 V DC or AC peak;
Contact-to-screen and test panel1500 V DC or AC peak
Test Condition0.5 mA 50 Hz or 60 Hz 1 min
Contact Resistance20 mΩ Max
Insertion / Extraction Force22 N / 2.27 kg Max 30 N Max
Typical Applications
Dual-port network switches and managed Ethernet hubs
Industrial routers requiring plug-detect signaling per port
VoIP gateways with dual RJ45 LAN/WAN interfaces
Embedded computing modules with dual Ethernet connectivity
Security appliances needing port-presence detection capability
Frequently Asked Questions
What is the functional difference between the reed and no-reed versions of the 5622S Dual-Port 10P?
The reed switch version includes a magnetically actuated reed contact that closes when an RJ45 plug is inserted, providing a hardware signal to the host system for plug-presence detection. The no-reed version omits this feature, relying on software-based link detection instead.
Can both ports on the 5622S Dual-Port 10P operate simultaneously at full rated current?
Each port is independently rated at 1.5A at 25°C. Both ports can operate simultaneously, but thermal derating should be considered in high-density assemblies. Refer to CZT's derating curves for multi-port simultaneous load scenarios to ensure safe operating temperatures.
Is the 5622S series footprint compatible with the 5622 series for PCB layout reuse?
The 5622S and 5622 series share similar form factors but may differ in pin pitch, body height, or mounting hole placement. Always verify footprint dimensions against CZT's official datasheet before reusing PCB layouts across series variants to avoid assembly issues.
Dual-Port PCB Mount Shielded Modular Jack Details
CategoryRJ45/Ethernet
SubcategoryJACK Series
Model NumberE56C08012602
Naming TemplateRJ45: Port Count + Orientation + Shield/LED + Family
Port CountDual-Port
OrientationPCB Mount
Shield / LEDShielded
FamilyModular Jack
BrandCZT
OriginChina
Drawing StatusDownloadable datasheet
