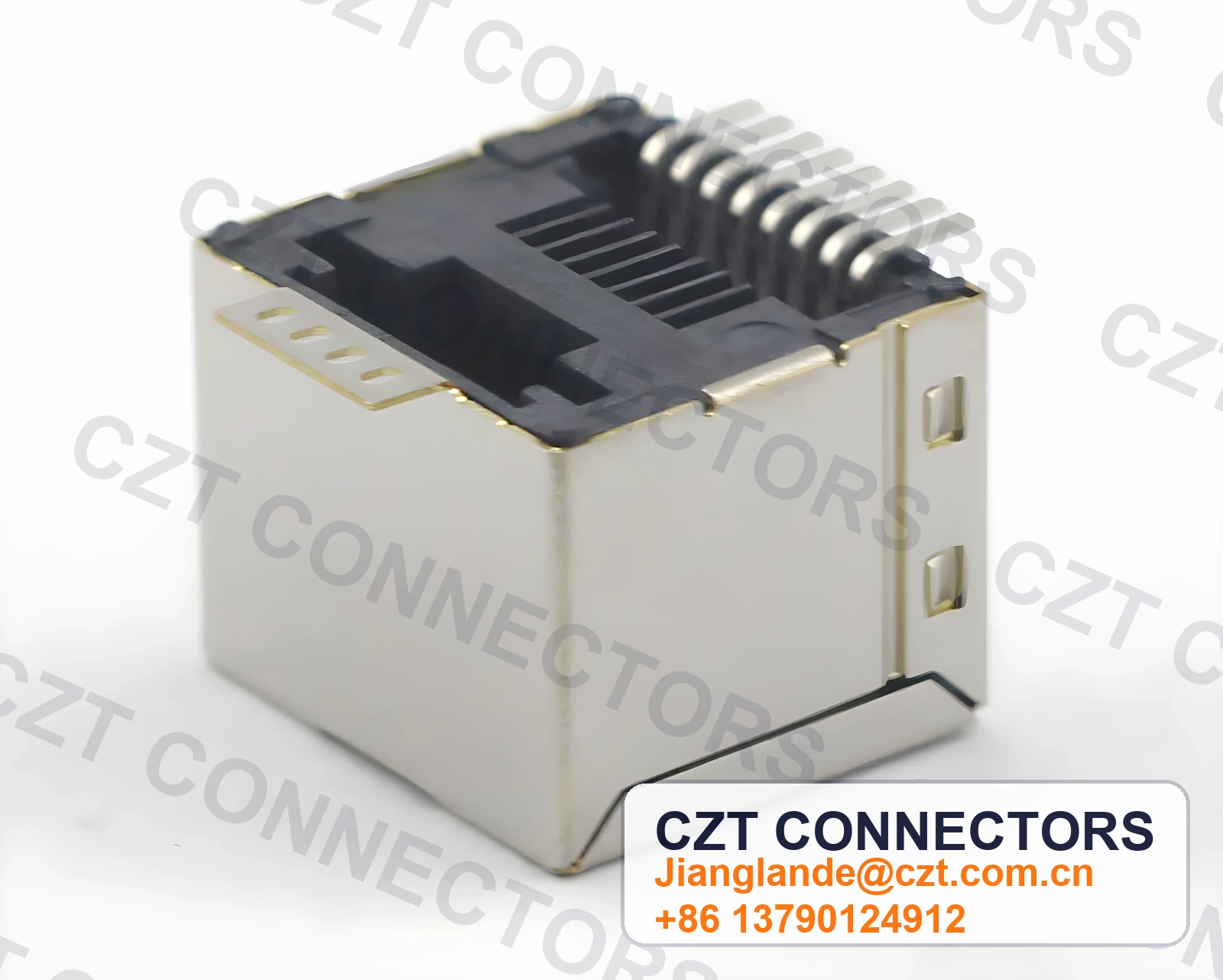

ESM150400 SMT Socket 180° with Shielded 8P
Model:ESM150400
The SMT 180° Shielded 8P Socket (ESM150400) is rated at 1.5 A at 25°C and 150V AC, with an insulation resistance of 1000 MΩ minimum at 100V DC. The shielded housing reduces electromagnetic interference in noise-sensitive environments. Suitable for industrial automation equipment, communication modules, and PCB assemblies requiring EMI-controlled data connections.
Key Features
- Rated 1.5 A at 25°C with 150V AC operating voltage
- Insulation resistance of 1000 MΩ minimum at 100V DC
- Full 360° shielding reduces EMI emissions in dense SMT layouts
- 180° SMT orientation for horizontal PCB-edge port placement
- Dielectric strength rated at 1000V DC or AC peak contact-to-contact
Key Specifications
- Product family: SMT modular socket
- Port / layout: confirm from drawing
- Pin / contact count: 8P
- Mounting / option notes: 180-degree vertical, SMT, shielded
- +11 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
SMT Socket 180° with Shielded 8P Specifications
Product familySMT modular socket
Port / layoutconfirm from drawing
Pin / contact count8P
Mounting / option notes180-degree vertical, SMT, shielded
Drawing statusRequest Drawing during RFQ; local PDF not available from the legacy archive
Asset statusold-site product image available
RFQ checkconfirm drawing revision, mating connector, PCB thickness or panel cutout, plating thickness, LED / light-pipe option, shielding, packaging, and sample requirement
Rated Current1.5 A @ 25°C
Rated Voltage150 V AC
Insulation Resistance1000 MΩ Min @ 100 V DC
Dielectric StrengthCONTACT TO CONTACT:1000 V DC or AC peak;
Contact-to-screen and test panel1500 V DC or AC peak
Test Condition0.5 mA 50 Hz or 60 Hz 1 min
Contact Resistance20 mΩ Max
Insertion / Extraction Force22 N / 2.27 kg Max 30 N Max
Typical Applications
SMT-based Ethernet interface boards with EMI shielding needs
Industrial control panels requiring shielded RJ45 ports
Medical instrumentation with strict EMC compliance requirements
Automotive infotainment units using surface-mount Ethernet
Test and measurement equipment with shielded data interfaces
Frequently Asked Questions
What advantage does the shielded design offer over an unshielded SMT socket?
The integrated shield provides a continuous ground path around the connector body, suppressing both radiated emissions and susceptibility to external interference. This is critical in environments with high electromagnetic noise, such as industrial motor drives, power electronics, or densely populated mixed-signal PCBs.
Is the ESM150400 compatible with standard SMT reflow soldering processes?
Yes. The 180° SMT footprint is designed for standard solder paste and reflow assembly. Ensure the PCB land pattern matches CZT's recommended footprint and that the reflow profile does not exceed the housing material's rated peak temperature, as specified in the product datasheet.
What does the 1000V dielectric strength rating mean in practice?
It means the insulation between adjacent contacts can withstand 1000V DC or AC peak without breakdown. This provides a substantial safety margin above the 150V AC operating voltage, ensuring the connector remains reliable under transient overvoltage events common in industrial and telecom power environments.
SMT Socket 180° with Shielded 8P Details
CategoryNew Products
Model NumberESM150400
Naming TemplateProduct name from catalog
BrandCZT
OriginChina
Drawing StatusRequest drawing
