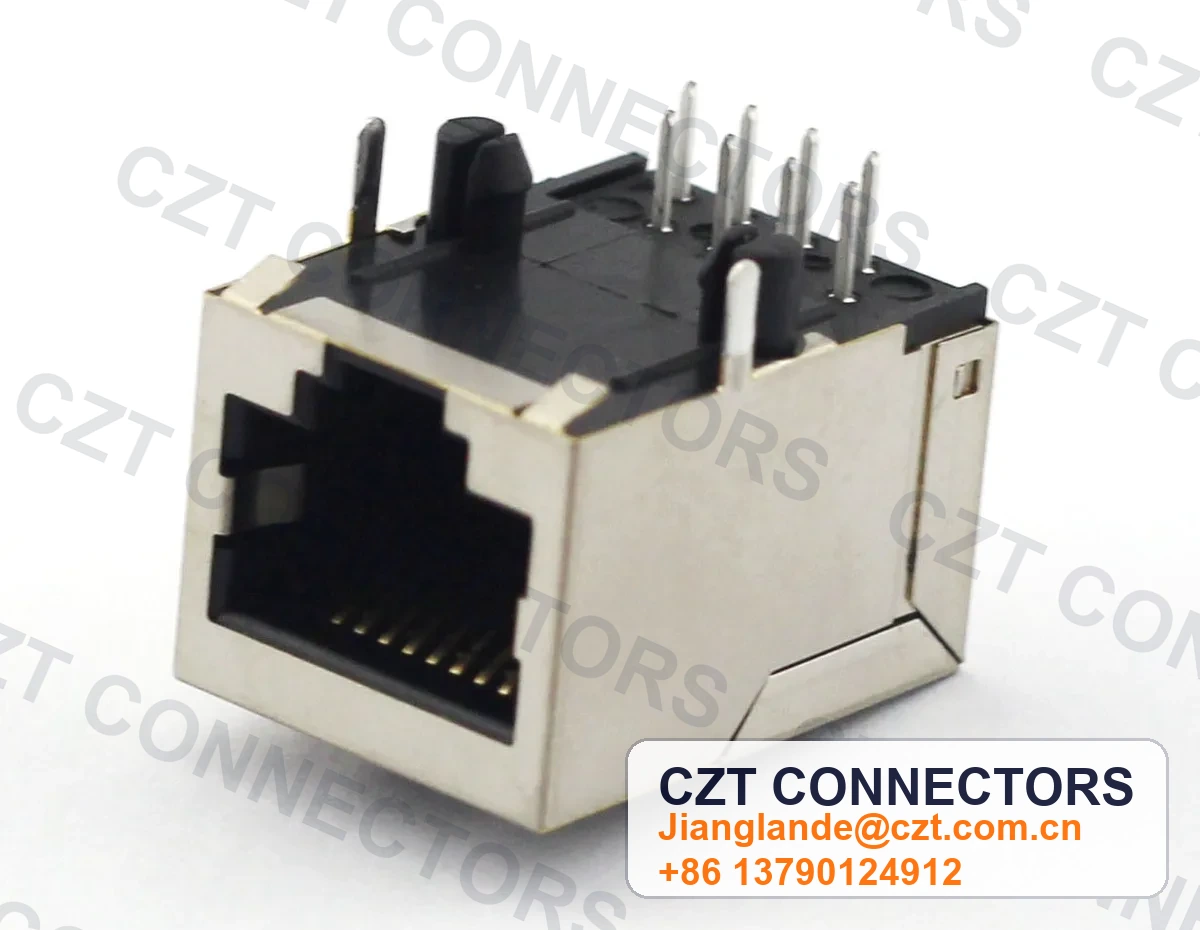

65 CAT.5扁针 Tin-Plated Series
Model:65 CAT.5扁针
CAT.5 flat pin rated at 1.5 A at 25°C with a 150 V AC voltage rating and a minimum insulation resistance of 1000 MΩ at 100 V DC, making it suitable for structured cabling and data transmission environments. Its flat-pin geometry supports reliable IDC termination in high-density connector housings. Primarily used in CAT.5 patch panels, keystone jacks, and Ethernet field-termination connectors.
Key Features
- CAT.5 flat pin rated 1.5 A at 25°C for low-current data connector applications
- 150 V AC voltage rating suitable for standard telecommunications interface circuits
- Minimum insulation resistance of 1000 MΩ at 100 V DC for reliable signal isolation
- Dielectric strength of 1000 V DC or AC peak contact-to-contact
- Tin-plated finish providing good solderability and corrosion resistance
Key Specifications
- Service type: connector terminal electroplating / selective plating
- Connector family: Custom connector or industrial hardware
- Plating focus: gold, nickel, tin, or selective plating stack per customer drawing and RFQ requirements
- Quality focus: appearance, adhesion, bending performance, contact zone consistency, and batch color control where applicable
- +11 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
Tin-Plated Series Specifications
Service typeconnector terminal electroplating / selective plating
Connector familyCustom connector or industrial hardware
Plating focusgold, nickel, tin, or selective plating stack per customer drawing and RFQ requirements
Quality focusappearance, adhesion, bending performance, contact zone consistency, and batch color control where applicable
Drawing statusRequest Drawing or plating specification during RFQ; local PDF not available from the legacy archive
Asset statusOld-site product image available
RFQ checkconfirm substrate material, plating stack, thickness, contact area, reel / barrel / rack process, masking requirements, test method, and inspection criteria
Rated Current1.5 A @ 25°C
Rated Voltage150 V AC
Insulation Resistance1000 MΩ Min @ 100 V DC
Dielectric StrengthCONTACT TO CONTACT:1000 V DC or AC peak;
Contact-to-screen and test panel1500 V DC or AC peak
Test Condition0.5 mA 50 Hz or 60 Hz 1 min
Contact Resistance20 mΩ Max
Insertion / Extraction Force22 N / 2.27 kg Max 30 N Max
Typical Applications
CAT.5 modular jack and plug contact pin assemblies
Structured cabling patch panel and keystone jack manufacturing
Telecommunications terminal block and distribution frame contacts
Low-voltage data interface connectors in building automation systems
OEM supply for CAT.5 connector assembly lines requiring certified contacts
Frequently Asked Questions
What are the rated electrical parameters for this CAT.5 flat pin?
The pin is rated at 1.5 A continuous current at 25°C ambient and 150 V AC working voltage. Insulation resistance is a minimum of 1000 MΩ measured at 100 V DC. Dielectric withstanding voltage is 1000 V DC or AC peak measured contact-to-contact, ensuring safe isolation between adjacent signal lines.
Does this pin meet TIA/EIA-568 or ISO/IEC 11801 CAT.5 performance requirements?
The electrical ratings are consistent with CAT.5 contact specifications. Buyers integrating this pin into certified connector assemblies should validate the complete connector system against TIA/EIA-568-C.2 or ISO/IEC 11801 channel performance requirements, as certification applies to the full assembly rather than individual contacts.
What is the current derating requirement at elevated temperatures?
The 1.5 A rating applies at 25°C. Current capacity must be derated as ambient temperature rises. A conservative derating of approximately 10–15% per 10°C above 25°C is recommended. For installations in enclosed enclosures or high-ambient environments, consult CZT's application engineering team for specific derating curves.
Tin-Plated Series Details
CategoryIndustrial
SubcategoryElectroplating
Model Number65 CAT.5扁针
Naming TemplateProduct name from catalog
BrandCZT
OriginChina
Drawing StatusRequest drawing
