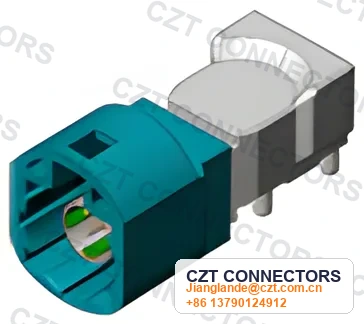

HSD Single-Port Male Horizontal PCB-Mount Connector
HSD Single-Port Male Horizontal PCB-Mount Connector is a CZT automotive connector record prepared for RFQ discovery from the legacy catalog. It has local product imagery and old-site source context, but no local PDF drawing in the archive. Use this page to request the latest drawing and confirm HSD high-speed data connector, confirm from drawing, male side referenced, horizontal PCB-mount, vehicle location, sealing target, plating, keying, and sample requirements before quotation.
Key Features
- RFQ-ready HSD high-speed data connector record with local old-site product image
- Contact or pin-count reference: confirm from drawing
- Mating reference: male side referenced
- Mounting or orientation reference: horizontal PCB-mount
- Request Drawing workflow for latest drawing revision, mating interface, plating, sealing, and sample confirmation
Key Specifications
- Product family: HSD high-speed data connector
- Contact / pin count: confirm from drawing
- Mating reference: male side referenced
- Mounting / orientation: horizontal PCB-mount
- +4 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
HSD Single-Port Male Horizontal PCB-Mount Connector Specifications
Product familyHSD high-speed data connector
Contact / pin countconfirm from drawing
Mating referencemale side referenced
Mounting / orientationhorizontal PCB-mount
Drawing statusRequest Drawing during RFQ; local PDF not available from the legacy archive
Asset statusold-site product image available
RFQ checkconfirm mating part, vehicle location, signal type, sealing target, plating, keying / color coding, cable or PCB interface, and drawing revision
Publication boundaryno certification, bandwidth, IP-rating, or high-voltage claim is made until customer drawing and specification are confirmed
Typical Applications
Automotive connector RFQ programs requiring drawing confirmation
Vehicle equipment, harness, BMS, antenna, or signal-interface projects after mating and application review
Sample, tooling, or supplier-qualification discussions where the customer can provide platform and drawing context
Low-voltage or signal connector selection where final ratings and environmental requirements are confirmed by drawing
Frequently Asked Questions
Can CZT provide the latest drawing for HSD Single-Port Male Horizontal PCB-Mount Connector?
Yes. Use Request Drawing or RFQ to ask sales for the latest drawing revision and to confirm whether the archived product image matches your required mating interface.
What information should be confirmed before quotation?
Please confirm the mating connector, vehicle location, signal or power use, sealing target, plating, keying or color coding, cable or PCB interface, annual volume, and sample schedule.
Are certification, bandwidth, IP-rating, or high-voltage claims confirmed on this page?
No. This page is a legacy-catalog RFQ record. Those claims should only be used after the customer drawing, specification sheet, and application boundary are reviewed.
HSD Single-Port Male Horizontal PCB-Mount Connector Details
CategoryAutomotive
SubcategoryAutomotive Connectors
Naming TemplateProduct name from catalog
BrandCZT
OriginChina
Drawing StatusRequest drawing
