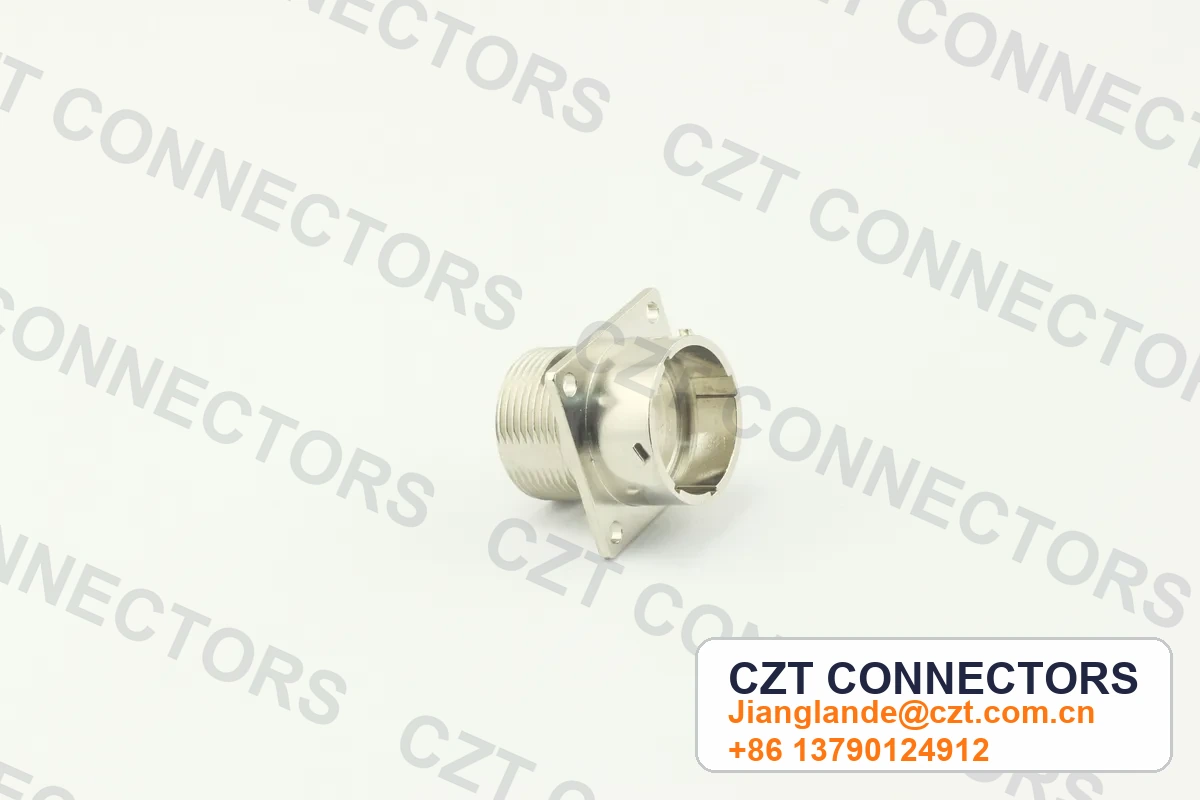

Precision Connector Assembly 7
Industrial-grade precision connector assembly produced using die casting for consistent housing quality and accurate connector geometry. Supports reliable electrical and mechanical performance across a range of industrial operating conditions. Frequently used in control panels, embedded systems, and industrial field devices.
Key Features
- Industrial-grade die casting delivers consistent housing quality across production volumes
- Accurate contact positioning ensures reliable mating with corresponding receptacle
- High mechanical strength housing resists cracking under torque and panel mounting stress
- Dimensional repeatability supports automated connector insertion in assembly lines
- Surface finish options available to meet specific corrosion resistance requirements
Key Specifications
- Product type: precision die-cast structural component
- Connector / hardware family: Custom connector or industrial hardware
- Process: precision die casting with secondary machining or finishing as required by drawing
- Application focus: connector housing, cage, shell, heatsink carrier, or industrial structural part
- +3 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
Precision Connector Assembly 7 Specifications
Product typeprecision die-cast structural component
Connector / hardware familyCustom connector or industrial hardware
Processprecision die casting with secondary machining or finishing as required by drawing
Application focusconnector housing, cage, shell, heatsink carrier, or industrial structural part
Drawing statusRequest Drawing during RFQ; local PDF not available from the legacy archive
Asset statusOld-site product image available
RFQ checkconfirm alloy, dimensional tolerance, tooling status, surface finish, machining operations, inspection criteria, and drawing revision
Typical Applications
Industrial power supply and UPS system wiring assemblies
Programmable logic controller I/O module interconnections
Wind turbine nacelle and generator control wiring
Oil and gas field instrumentation and control panels
Heavy construction equipment onboard electrical systems
Frequently Asked Questions
What alloys are used in CZT's precision die-cast connector housings?
CZT primarily uses zinc alloy (Zamak series) and aluminum alloy die castings, selected based on the required balance of strength, weight, machinability, and corrosion resistance. Zinc alloys are preferred for complex geometries requiring very tight tolerances, while aluminum offers a lighter weight option.
Can CZT supply connector assemblies with custom contact plating specifications?
Yes. CZT offers flexible contact plating options including selective gold plating on mating surfaces, full tin plating for cost-sensitive applications, and nickel underplating for improved wear resistance. Custom plating thickness specifications can be accommodated for OEM programs.
What is the minimum order quantity for precision die-cast connector assemblies?
MOQ varies by product configuration and customization level. Standard catalog assemblies are available in smaller quantities, while custom tooled configurations typically require higher MOQs to amortize tooling investment. Contact CZT sales for specific MOQ and pricing information.
Precision Connector Assembly 7 Details
CategoryIndustrial
SubcategoryPrecision Die Casting
Naming TemplateProduct name from catalog
BrandCZT
OriginChina
Drawing StatusRequest drawing
