RJ45/Ethernet / PLUG Series

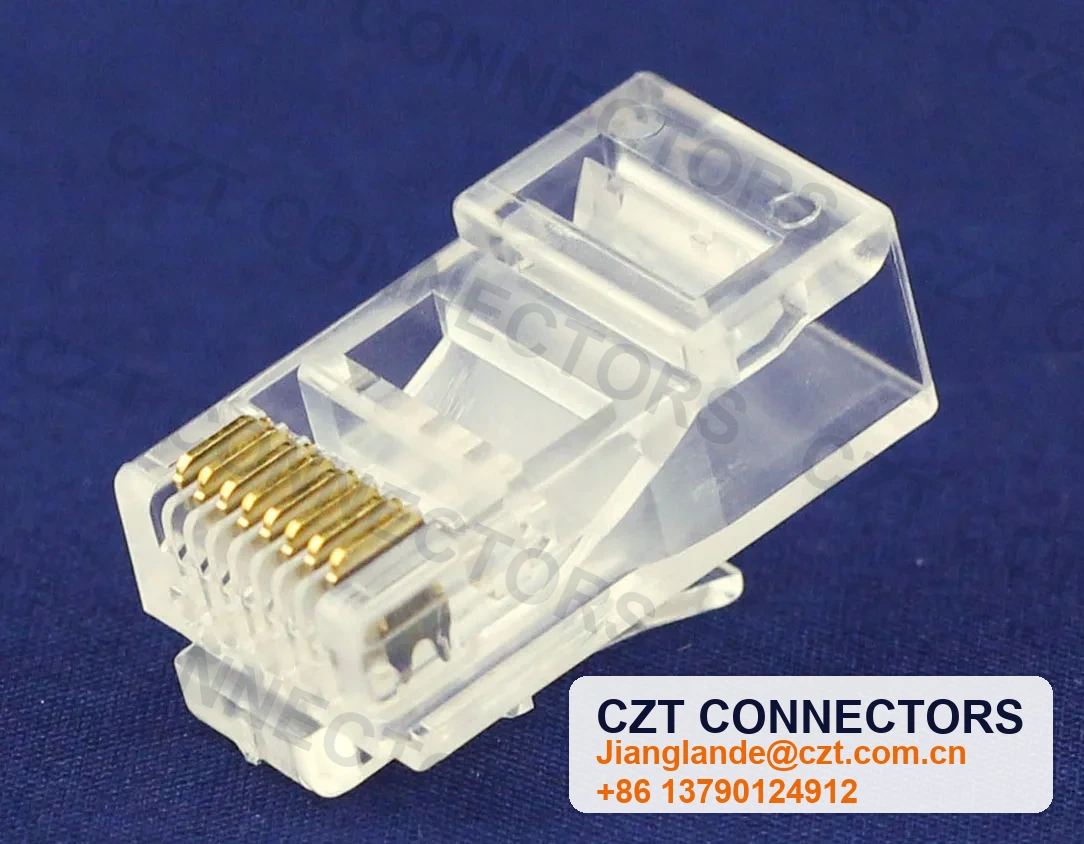

QWY-1217-59 Single-Port PCB Mount Modular Plug
Model:QWY-1217-59
Single-Port PCB Mount Modular Plug (QWY-1217-59) is organized for RJ45 and modular-jack RFQ review. Use this record to confirm single-port layout, PCB-mount orientation, shielding or LED options, and the modular plug drawing before sample release. Key electrical items such as current rating, voltage rating, insulation resistance, dielectric strength, and contact resistance are normalized below for faster comparison.
Key Features
- Standard 8P8C RJ45 configuration with square-hole KB cable entry
- Rated 1.5A at 25°C with 150V AC maximum operating voltage
- Insulation resistance exceeds 1000 MΩ at 100V DC
- Dielectric strength rated at 1000V AC RMS or 1500V DC
- Full-crimp termination for reliable field cable assembly
Key Specifications
- Rated Current: 1.5 A @ 25°C
- Rated Voltage: 150 V AC Max
- Insulation Resistance: 1000 MΩ Min @ 100 V DC
- Dielectric Strength: 1000 V AC RMS or 1500 V DC @ 0.5 mA 50 Hz or 60 Hz 1 min
- +4 more specs below
Single-Port PCB Mount Modular Plug Specifications
Rated Current1.5 A @ 25°C
Rated Voltage150 V AC Max
Insulation Resistance1000 MΩ Min @ 100 V DC
Dielectric Strength1000 V AC RMS or 1500 V DC @ 0.5 mA 50 Hz or 60 Hz 1 min
Contact Resistance20 mΩ Max
Mating Strength50 N for 60s±5s
Service Life750 insertion / extraction cycles Min
Operating Temperature-25 °C to 55 °C
Typical Applications
Patch cable assembly in structured cabling installations
Office LAN and workstation Ethernet connections
Network equipment rack wiring and patch panels
CAT5e field termination for horizontal cabling runs
Data center copper Ethernet cable fabrication
Frequently Asked Questions
What cable outer diameter is compatible with the KB square hole entry?
The KB square hole entry is designed for standard round cables typically ranging from 4.5mm to 6.5mm OD. It provides a snug fit for CAT5e and CAT6 unshielded cables, ensuring consistent crimp alignment and strain relief during termination.
Is this plug compatible with standard RJ45 keystone jacks and patch panels?
Yes. The QWY-1217-59 conforms to the standard 8P8C RJ45 form factor and mates reliably with any TIA-568 compliant jack or patch panel port, making it suitable for both new installations and replacement use in existing infrastructure.
Does this plug support CAT6 performance requirements?
This plug is designed for CAT5e applications. For CAT6 or higher performance, consider plugs with conductor inserts or shielded variants that maintain tighter pair geometry and reduce crosstalk at higher frequencies.
Single-Port PCB Mount Modular Plug Details
CategoryRJ45/Ethernet
SubcategoryPLUG Series
Model NumberQWY-1217-59
Naming TemplateRJ45: Port Count + Orientation + Shield/LED + Family
Port CountSingle-Port
OrientationPCB Mount
Shield / LEDConfirm from drawing
FamilyModular Plug
BrandCZT
OriginChina
Drawing StatusDownloadable datasheet
