A fiber optic connection is only as good as its connectors. Poor connections introduce insertion loss, back-reflection, and signal degradation that can bring down a link or reduce its reach. Understanding fiber connector types, polish standards, and best practices is essential for anyone deploying or maintaining fiber networks.
Fiber Connector Types
LC (Lucent Connector)
The LC connector is the dominant connector in modern data center and enterprise networks. Its 1.25 mm ferrule is half the size of SC, enabling high-density installations.
Key specs:
- Ferrule diameter: 1.25 mm
- Typical insertion loss: ≤0.3 dB
- Return loss (UPC): ≥50 dB
- Return loss (APC): ≥60 dB
- Locking mechanism: Push-pull latch
Applications: SFP/SFP+/SFP28/QSFP transceivers, patch panels, high-density fiber distribution.
SC (Subscriber Connector)
The SC connector uses a 2.5 mm ferrule and a push-pull coupling mechanism. It was the dominant connector before LC became standard.
Key specs:
- Ferrule diameter: 2.5 mm
- Typical insertion loss: ≤0.3 dB
- Locking mechanism: Push-pull (snap-in)
Applications: GPON/EPON OLT equipment, older network equipment, test equipment, CATV.
FC (Ferrule Connector)
FC connectors use a threaded coupling mechanism that provides a secure, vibration-resistant connection. Common in telecom and test equipment.
Key specs:
- Ferrule diameter: 2.5 mm
- Locking mechanism: Threaded
- Best for: High-vibration environments, test equipment
ST (Straight Tip)
ST connectors use a bayonet-style locking mechanism. They were common in early multimode networks but have been largely replaced by LC and SC.
Applications: Legacy multimode networks, some industrial applications.

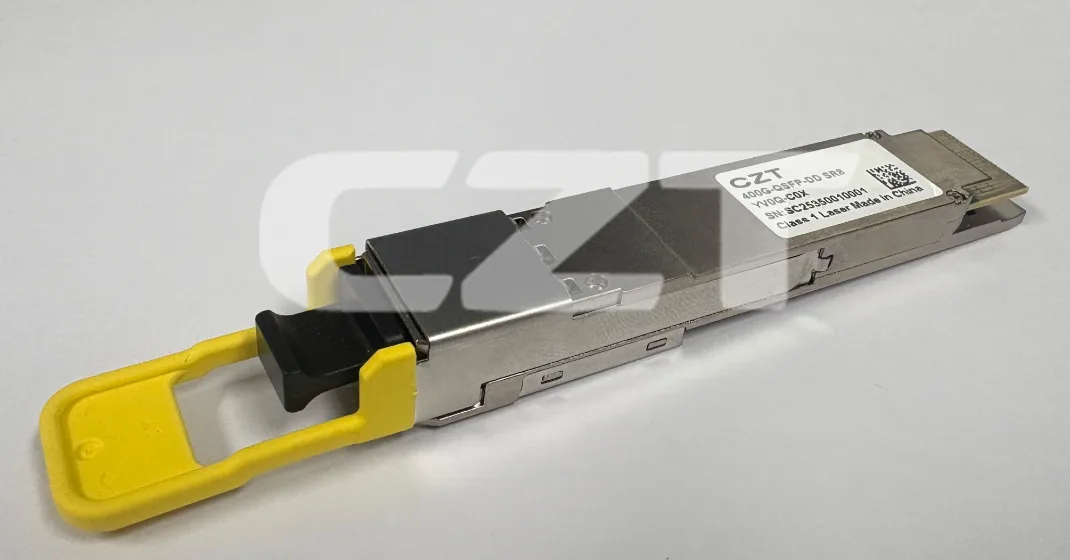

MPO/MTP (Multi-fiber Push-On)
MPO connectors house 8, 12, 16, or 24 fibers in a single connector. MTP is a high-performance version of MPO with better mechanical specs.
Key specs:
- Fiber count: 8, 12, 16, or 24 fibers
- Typical insertion loss: ≤0.6 dB (12-fiber)
- Applications: 40G/100G/400G parallel optics, fiber trunk cables, data center backbone
Polish Types: UPC vs APC
The end-face polish of a fiber connector determines its return loss performance.
UPC (Ultra Physical Contact)
UPC connectors have a slightly curved end-face polished to a smooth finish. The fiber end-faces make direct physical contact.
- Return loss: ≥50 dB
- Connector color: Blue (single-mode), beige/black (multimode)
- Applications: Most data communications, LAN, SAN
APC (Angled Physical Contact)
APC connectors have an 8° angled end-face. The angle directs back-reflected light away from the fiber core, dramatically improving return loss.
- Return loss: ≥60 dB
- Connector color: Green
- Applications: CATV, GPON/EPON, analog RF, long-haul DWDM, any application sensitive to back-reflection
Important: UPC and APC connectors must never be mated together. The angle mismatch causes high insertion loss and can damage the end-faces.
Single-Mode vs Multimode Fiber
| Parameter | Single-Mode (SMF) | Multimode (MMF) |
|---|---|---|
| Core diameter | 9 µm | 50 or 62.5 µm |
| Typical reach | 10 km – 80 km+ | 100 m – 550 m |
| Wavelength | 1310 nm, 1550 nm | 850 nm, 1300 nm |
| Connector color | Blue (UPC), Green (APC) | Beige, Aqua (OM3), Violet (OM4/OM5) |
| Cost | Higher (laser sources) | Lower (LED/VCSEL sources) |
| Applications | Long-haul, campus, WAN | Data center, short-reach |
Insertion Loss and Return Loss
Insertion loss is the signal power lost at a connection, measured in dB. Lower is better.
- Typical connector insertion loss: 0.1–0.3 dB
- Maximum allowed per connection (TIA-568): 0.75 dB
- Budget for a fiber link: Sum of all connector losses + fiber attenuation + splice losses
Return loss (back-reflection) is the power reflected back toward the source. Higher is better.
- UPC: ≥50 dB
- APC: ≥60 dB
- High back-reflection can destabilize laser sources and degrade signal quality
Fiber Optic Cable Types
Patch Cables (Jumpers)
Short cables (0.5 m – 10 m) with connectors on both ends. Used to connect equipment to patch panels or transceivers.
- Simplex: One fiber, one connector on each end
- Duplex: Two fibers, two connectors on each end (most common for transceivers)
- Breakout: MPO on one end, multiple LC/SC on the other
Trunk Cables
Pre-terminated cables with MPO connectors on both ends. Used for data center backbone cabling. Available in 12-fiber, 24-fiber, and higher counts.
Armored Cables
Cables with a metal armor layer for protection against crushing, rodents, or rough handling. Used in industrial environments and direct burial.
Best Practices for Fiber Connections
-
Clean before connecting: Use a fiber optic cleaning tool (one-click cleaner or lint-free wipe with IPA) before every connection. Contamination is the #1 cause of fiber connection problems.
-
Inspect end-faces: Use a fiber inspection microscope (or video inspection probe) to verify end-face cleanliness before connecting.
-
Don't exceed bend radius: Minimum bend radius is typically 10× the cable diameter for installation, 15× for permanent bends. Exceeding this increases attenuation.
-
Match connector types: Never mate UPC with APC. Never mate single-mode with multimode connectors.
-
Use proper strain relief: Secure cables at connectors to prevent stress on the fiber.
-
Document your links: Record insertion loss measurements for each link at installation. This baseline helps diagnose future problems.
Troubleshooting Fiber Connections
| Symptom | Likely Cause | Solution |
|---|---|---|
| High insertion loss | Dirty end-face | Clean connector |
| High insertion loss | Mismatched connectors | Verify connector types match |
| Intermittent link | Loose connector | Re-seat connector, check latch |
| No link | Wrong fiber type | Verify SMF/MMF match |
| High back-reflection | UPC where APC needed | Replace with APC connectors |
Summary
Fiber optic connections require attention to connector type, polish type, and cleanliness. Key points:
- LC is the standard for modern data center and enterprise equipment
- SC is common in GPON/EPON and legacy equipment
- MPO/MTP is used for 40G/100G/400G parallel optics
- APC (green) provides better return loss than UPC (blue) — never mix them
- Clean every connector before mating — contamination causes most fiber problems
CZT supplies LC, SC, MPO/MTP fiber optic connectors, patch cables, and fiber distribution components. Browse our fiber optic connector range for compatible products.
