I/O Connectors / USB Series

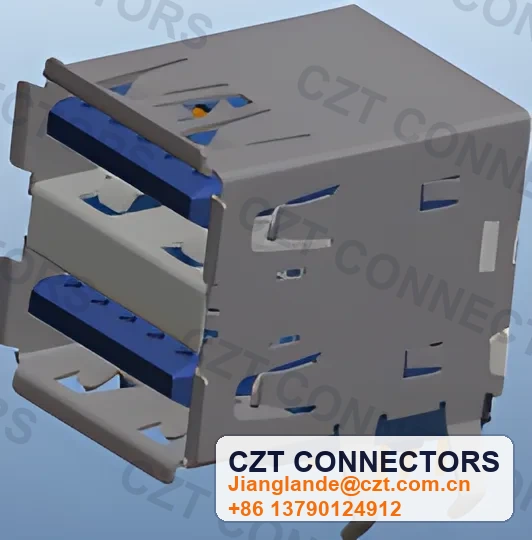

10316109xxxx USB 3.0 Type-A 9-Contact Female Receptacle Vertical Connector
Model:10316109xxxx
USB 3.0 Type-A 9-Contact Female Receptacle Vertical Connector (10316109xxxx) is organized for USB, HDMI, SATA, or board-level I/O connector selection. Use this record to confirm interface, pin count, gender, mounting orientation, shell construction, and the current drawing revision before sampling. Electrical ratings, insulation resistance, withstand voltage, contact resistance, and durability fields are cleaned for model-to-model comparison where source data is available.
Key Features
- USB 3.0 Type-B female DIP 180° upright connector with PBT halogen-free housing
- Power contacts rated at 1.8 A; signal contacts rated at 0.25 A per USB 3.0 spec
- Supports SuperSpeed USB 3.0 data transfer up to 5 Gb/s
- Halogen-free PBT housing meets RoHS and environmental compliance requirements
- Vertical DIP mounting provides strong mechanical retention for cable stress relief
Key Specifications
- Interface: USB 3.0 Type-B
- Gender: female receptacle
- Product style: vertical DIP PCB connector
- Contact layout: 9-contact SuperSpeed USB family
- +13 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
USB 3.0 Type-A 9-Contact Female Receptacle Vertical Connector Specifications
InterfaceUSB 3.0 Type-B
Genderfemale receptacle
Product stylevertical DIP PCB connector
Contact layout9-contact SuperSpeed USB family
Mount / orientationDIP 180° vertical
Housing notePBT halogen-free reference from old-site title
Drawing statusrequest drawing during RFQ
Asset statusold-site product image available
RFQ checkconfirm footprint, housing material, plating, packaging, and drawing revision
Rated Current1.8 A for contact 1 & 4; 0.25 A for all of other contacts ( Standard-A / B ) 1.8 A for contact 1 & 5; 0.25 A for all of other contacts ( Micro connector family ) rated voltage: 30 V AC (RMS. max) insulation resistance: 1000 MΩ Min dielectric strength:CONTACT TO CONTACT:500 V DC contact resistance:30 mΩ max, 20 mV max at100 mA.
Rated Current1.8 A for contact 1 & 4; 0.25 A for all of other contacts ( Standard-A / B )
1.8 A for contact 1 & 5; 0.25 A for all of other contacts ( Micro connector family )
Rated Voltage30 V AC (RMS. max)
Insulation Resistance1000 MΩ Min
Dielectric StrengthCONTACT TO CONTACT:500 V DC
Contact Resistance30 mΩ max, 20 mV max at100 mA.
Operating Temperature-40 °C~+85 °C 0 °C~+70 °C applicable toPC / ABS storage temperature: -40 °C~+85 °C 0 °C~+70 °C applicable toPC / ABS relative humidity<80% storage time: 12 months
Typical Applications
USB 3.0 device ports on industrial measurement instruments
High-speed data acquisition systems requiring SuperSpeed USB interfaces
Printers and multifunction devices with USB 3.0 host connectivity
Environmentally compliant medical device USB communication ports
Audio/video production equipment with USB 3.0 device interfaces
Frequently Asked Questions
What is the significance of the halogen-free PBT housing material?
Halogen-free PBT housing eliminates brominated and chlorinated flame retardants, reducing toxic gas emission during combustion. This is required for products targeting markets with strict environmental regulations such as EU RoHS, REACH, and IEC 61249-2-21, including medical, industrial, and consumer electronics applications.
What are the current ratings for power versus signal contacts on this connector?
Power contacts (pins 1 and 4 for Standard-B) are rated at 1.8 A, while all other signal contacts are rated at 0.25 A. This differentiation follows the USB 3.0 specification and ensures proper current handling for VBUS and GND while maintaining signal integrity on data lines.
Is this connector backward compatible with USB 2.0 Type-B cables?
Yes. USB 3.0 Type-B female connectors are mechanically and electrically backward compatible with USB 2.0 Type-B male plugs. When connected to a USB 2.0 cable, the interface operates at USB 2.0 speeds (up to 480 Mb/s), with the SuperSpeed contacts unused.
USB 3.0 Type-A 9-Contact Female Receptacle Vertical Connector Details
CategoryI/O Connectors
SubcategoryUSB Series
Model Number10316109xxxx
Naming TemplateUSB/I/O: Interface + Pin Count + Gender + Mount/Orientation + Family
InterfaceUSB 3.0 Type-A
Pin Count9-Contact
GenderFemale Receptacle
Mount / OrientationVertical
BrandCZT
OriginChina
Drawing StatusRequest drawing
