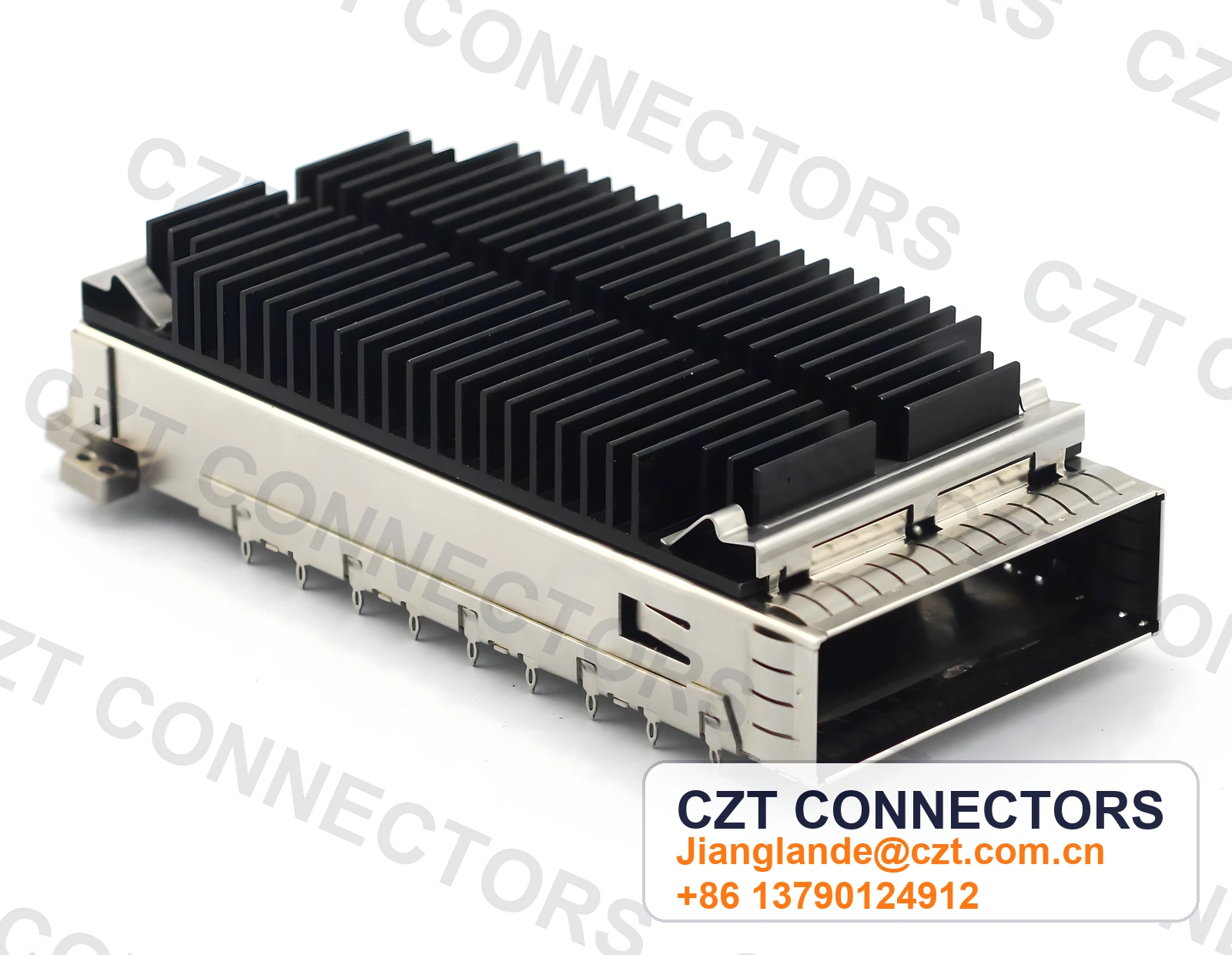

13502001S002 CFP2 1X1 CAGE with Heat Sink
Model:13502001S002
The CFP2 1X1 Cage with Heat Sink (13502001S002) is designed for high-density optical transceiver modules, rated at 0.5 A and 3.3V AC with an insulation resistance of 1000 MΩ minimum. The integrated heat sink ensures effective thermal management under sustained operation. Suited for 100G optical networking equipment, data center switches, and high-speed telecom infrastructure.
Key Features
- CFP2 1X1 cage with integrated heat sink for high-power optical transceivers
- Rated 0.5A at 3.3V DC for low-power cage management circuitry
- 1000 MΩ minimum insulation resistance for signal integrity assurance
- 300V DC/AC peak dielectric strength at 50/60 Hz per minute
- High-density form factor compatible with CFP2 MSA mechanical specification
Key Specifications
- Product family: CFP2 optical cage
- Port / layout: 1x1 / single-port
- Pin / contact count: confirm from drawing
- Mounting / option notes: with heat sink
- +11 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
CFP2 1X1 CAGE with Heat Sink Specifications
Product familyCFP2 optical cage
Port / layout1x1 / single-port
Pin / contact countconfirm from drawing
Mounting / option noteswith heat sink
Drawing statusRequest Drawing during RFQ; local PDF not available from the legacy archive
Asset statusold-site product image available
RFQ checkconfirm drawing revision, mating connector, PCB thickness or panel cutout, plating thickness, LED / light-pipe option, shielding, packaging, and sample requirement
Rated Current0.5 A
Rated Voltage3.3 V AC
Insulation Resistance1000 MΩ Min
Dielectric Strength300 V DC or AC peak 50 Hz or 60 Hz / minute
Contact Resistance
70 mΩ Max
Terminal Positive Force0.3 N Min
Service Life100 insertion / extraction cycles Min
Typical Applications
100G and 200G optical transceiver module hosting in line cards
Data center core switches requiring high-density CFP2 port arrays
Telecom transport equipment with thermal management requirements
High-speed test and measurement platforms using CFP2 modules
Carrier-grade routers with integrated optical interface cages
Frequently Asked Questions
What thermal performance does the integrated heat sink provide?
The integrated heat sink is designed to conduct heat away from the CFP2 transceiver module body and dissipate it into the airflow path of the host system. Actual thermal resistance values depend on airflow velocity and system configuration — refer to the thermal datasheet for junction-to-ambient specifications.
Is the CFP2 1X1 cage compliant with the CFP MSA mechanical specification?
Yes, the cage is designed to conform to the CFP2 Multi-Source Agreement (MSA) mechanical envelope, ensuring compatibility with CFP2 transceiver modules from compliant vendors. Verify the specific revision of the MSA against your module supplier's datasheet to confirm full interoperability.
What PCB mounting style does the cage support?
The CFP2 1X1 cage is designed for surface-mount or press-fit PCB attachment depending on the variant. The mounting footprint follows CFP2 MSA guidelines. CZT can provide the recommended PCB land pattern and soldering profile to ensure reliable solder joint formation during reflow assembly.
CFP2 1X1 CAGE with Heat Sink Details
CategoryNew Products
Model Number13502001S002
Naming TemplateProduct name from catalog
BrandCZT
OriginChina
Drawing StatusRequest drawing
