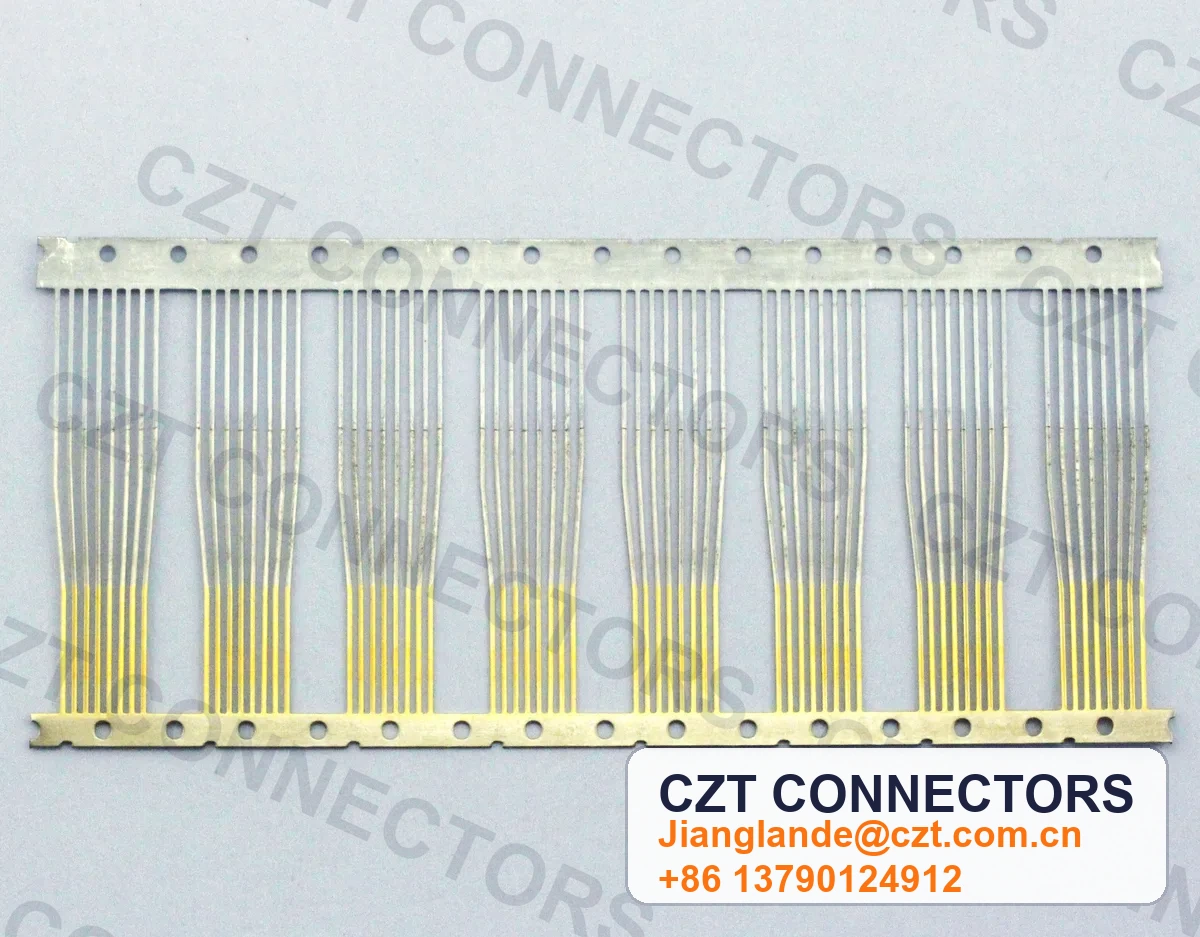

592*4LED小插芯 Flat Pin Series
Model:592*4LED小插芯
The 592×4 LED Small Insert Flat Pin is a compact gold-plated contact optimized for LED lighting connector housings, combining a small insert core with a flat-pin profile for efficient assembly. Its design supports reliable low-voltage connections in high-density lighting applications. Commonly found in LED strip connectors, downlight modules, and decorative lighting systems.
Key Features
- Compact gold-plated contact optimized for LED lighting connector housings
- Small insert format enables high-density LED circuit connector configurations
- Gold plating ensures stable low-resistance contact for LED driver interfaces
- Designed for compatibility with 592×4 LED-specific connector housing series
- Consistent insertion geometry supports reliable automated assembly processes
Key Specifications
- Service type: connector terminal electroplating / selective plating
- Connector family: Custom connector or industrial hardware
- Plating focus: gold, nickel, tin, or selective plating stack per customer drawing and RFQ requirements
- Quality focus: appearance, adhesion, bending performance, contact zone consistency, and batch color control where applicable
- +3 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
Flat Pin Series Specifications
Service typeconnector terminal electroplating / selective plating
Connector familyCustom connector or industrial hardware
Plating focusgold, nickel, tin, or selective plating stack per customer drawing and RFQ requirements
Quality focusappearance, adhesion, bending performance, contact zone consistency, and batch color control where applicable
Drawing statusRequest Drawing or plating specification during RFQ; local PDF not available from the legacy archive
Asset statusOld-site product image available
RFQ checkconfirm substrate material, plating stack, thickness, contact area, reel / barrel / rack process, masking requirements, test method, and inspection criteria
Typical Applications
LED luminaire connector assemblies requiring compact contact formats
Small-circuit LED driver board interface connectors
High-density LED panel connector contacts
Smart lighting module signal and power interface contacts
Compact LED retrofit lamp connector assemblies
Frequently Asked Questions
How is the 592×4 LED Small Insert Flat Pin different from the standard 592×4 Small Insert?
The LED variant is specifically optimized for LED lighting connector housings, with geometry and plating characteristics suited to the thermal and electrical environment of LED driver assemblies. While dimensionally similar, the LED designation indicates suitability for lighting-specific housing series and application requirements.
Is the gold plating on the LED Small Insert sufficient for LED driver current levels?
The small insert format is designed for lower current signal or auxiliary power circuits within LED connector assemblies. For higher current LED power circuits, the 592×4 LED Large Insert is recommended. CZT can advise on appropriate contact selection based on your circuit current requirements.
Can the 592×4 LED Small Insert be used in outdoor LED fixture connectors?
The gold plating provides good corrosion resistance, making it suitable for use in sealed or protected outdoor LED fixture connectors. However, the connector housing's IP rating and sealing method are the primary factors for outdoor suitability. Confirm environmental requirements with your connector housing supplier.
Flat Pin Series Details
CategoryIndustrial
SubcategoryElectroplating
Model Number592*4LED小插芯
Naming TemplateProduct name from catalog
BrandCZT
OriginChina
Drawing StatusRequest drawing
