InterfaceHDMI Type-A
Genderfemale receptacle

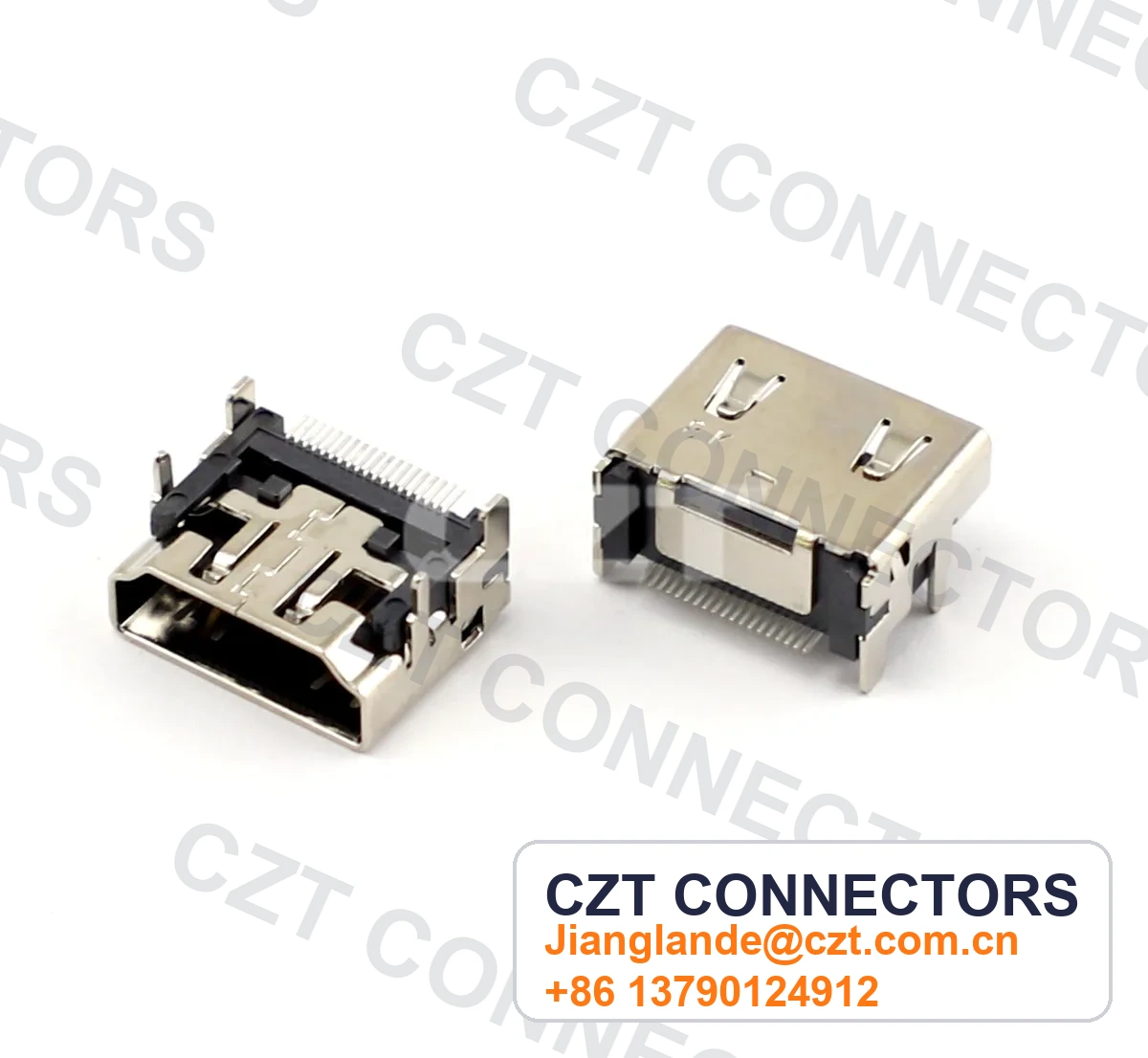

Product styleHDMI Type-A board receptacle
Contact layoutHDMI 19-contact family
PDF drawingavailable to download
Before orderingconfirm plating, shell style, PCB footprint, packaging, and drawing revision
Rated Current0.5 A
Rated Voltage40 V AC
Insulation Resistance10MΩ Min(MATED)
Withstand Voltage300 V AC (MATED)
Contact Resistance40 mΩ
Insertion / Extraction Force44.1 N Max / 9.8 N Min
Operating Temperature-25 °C to +85 °C
Storage Temperature-20 °C to +40 °C,15%RH to 70%RH
Housing MaterialLCP / PBT / PA46 / PA66 / PA10T / ABS / PC options
Flame RatingUL94V-0 / UL94V-1 options
