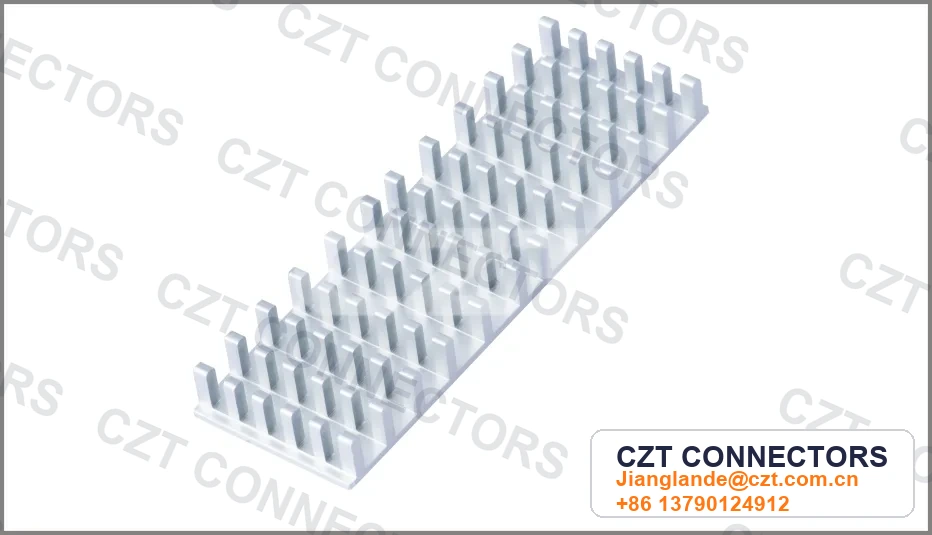

SRQ-XJ-38
The SRQ-XJ-38 is a medium-profile industrial heat sink designed to balance thermal performance with space efficiency in panel-mounted equipment. Its extruded aluminum body supports both vertical and horizontal fin orientations for flexible installation. Used in frequency converters, UPS systems, and power conditioning units.
Key Features
- Medium-profile design balances thermal performance with vertical space constraints
- Extruded aluminum construction ensures lightweight yet durable heat dissipation
- Optimized fin geometry maximizes surface area for convective cooling efficiency
- Compatible with standard TO-220, TO-247, and similar power device packages
- Anodized surface finish improves emissivity and corrosion resistance
Key Specifications
- Product type: heat sink / thermal management component
- Application focus: optical transceiver, networking, power electronics, or industrial electronics thermal management
- Material: aluminum alloy reference; confirm final alloy, temper, and finish during RFQ
- Process note: confirm extrusion, die casting, CNC machining, skiving, bonding, or surface finishing from the customer drawing
- +3 more specs below
Request drawing: This product has local image and specification coverage. Ask sales to confirm the latest drawing revision before sampling or tooling review.
SRQ-XJ-38 Specifications
Product typeheat sink / thermal management component
Application focusoptical transceiver, networking, power electronics, or industrial electronics thermal management
Materialaluminum alloy reference; confirm final alloy, temper, and finish during RFQ
Process noteconfirm extrusion, die casting, CNC machining, skiving, bonding, or surface finishing from the customer drawing
Drawing statusRequest Drawing during RFQ; local PDF not available from the legacy archive
Asset statusOld-site product image available
RFQ checkconfirm dimensions, fin geometry, thermal interface, mounting method, surface finish, packaging, and drawing revision
Typical Applications
Mid-power industrial motor drive controllers requiring compact cooling
Embedded power supply modules in 1U rack enclosures
PLC backplane power regulators with limited vertical clearance
Industrial UPS systems with moderate thermal load requirements
Automation control boards with space-constrained PCB layouts
Frequently Asked Questions
What power dissipation range is the SRQ-XJ-38 suitable for?
The SRQ-XJ-38 is optimized for medium thermal loads, typically handling power dissipation in the 15–40W range depending on airflow conditions. Natural convection performance can be extended with forced airflow from a low-speed fan mounted above the fin array.
Is the SRQ-XJ-38 compatible with thermal interface materials?
Yes. The machined base surface is flat to within standard tolerances, making it compatible with thermal pads, phase-change materials, and thermal grease. A smooth base finish ensures consistent contact pressure and minimizes interface thermal resistance.
Can the SRQ-XJ-38 be used in a horizontal mounting orientation?
It can be mounted horizontally, though vertical fin orientation is recommended for natural convection to allow chimney-effect airflow. In horizontal installations, forced airflow is advised to maintain rated thermal performance and prevent hot spots.
SRQ-XJ-38 Details
CategoryIndustrial
SubcategoryHeat Sinks
Naming TemplateProduct name from catalog
BrandCZT
OriginChina
Drawing StatusRequest drawing
