HDMI (High-Definition Multimedia Interface) is the dominant standard for transmitting uncompressed digital video and audio between devices. Since its introduction in 2002, HDMI has gone through multiple specification revisions and connector form factors — and the differences between them matter significantly for system designers, AV integrators, and product engineers.
This guide covers all HDMI connector types, the major specification versions, bandwidth capabilities, and how to select the right HDMI connector for your application.
HDMI Connector Types
HDMI defines five connector types, designated Type A through Type E. Types A, C, and D are the most commonly used.
Type A — Standard HDMI

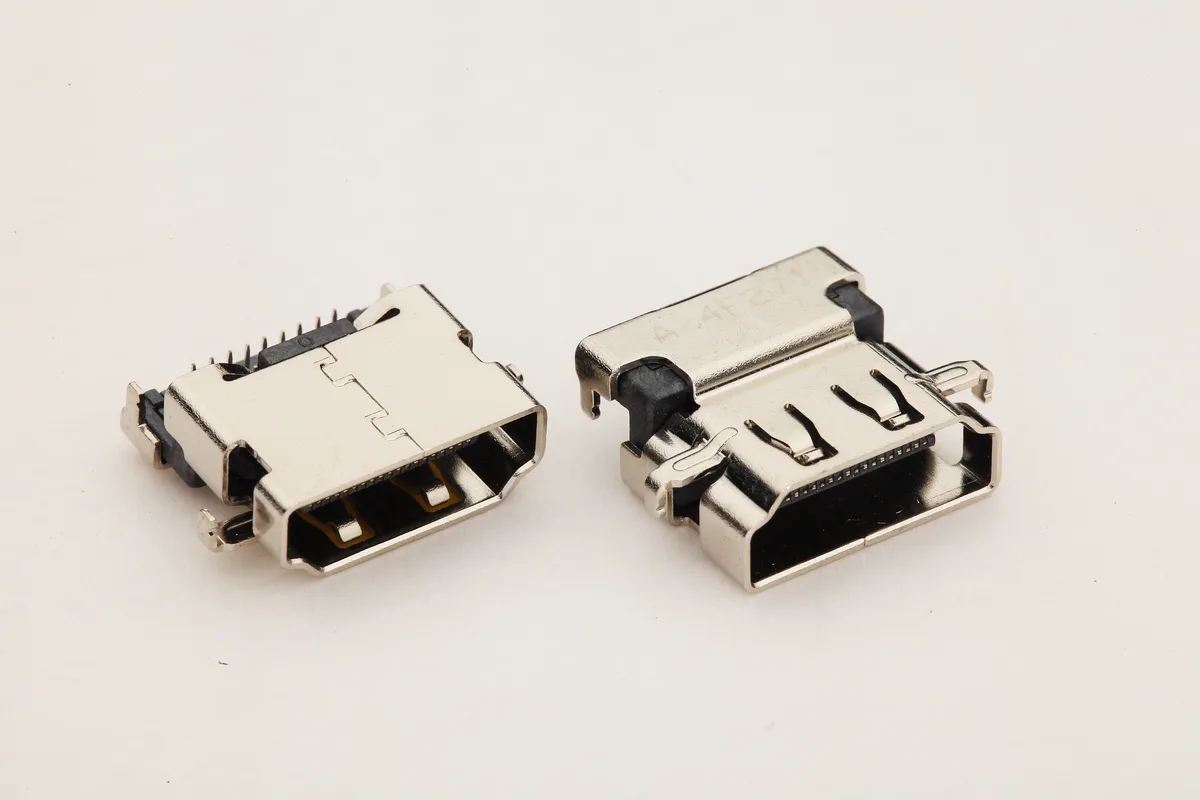

Type A is the full-size HDMI connector found on TVs, monitors, AV receivers, Blu-ray players, and most desktop graphics cards. It has 19 pins and measures 13.9mm × 4.45mm.
Type A is the reference connector for all HDMI specifications. When someone says "HDMI cable" without qualification, they mean a Type A to Type A cable.
Type A supports all HDMI features including:
- Video (up to 10K with HDMI 2.1)
- Multi-channel audio (up to 32 channels)
- Ethernet channel (HEC)
- Audio Return Channel (ARC) / Enhanced ARC (eARC)
- Consumer Electronics Control (CEC)
Type C — Mini HDMI
Type C (Mini HDMI) is a smaller version of Type A, measuring 10.42mm × 2.42mm. It has the same 19 pins as Type A but in a more compact form factor.
Mini HDMI is used on:
- DSLR and mirrorless cameras
- Tablets
- Some laptops and ultrabooks
- Portable monitors
- Raspberry Pi and similar single-board computers
Type C to Type A cables are common for connecting cameras and tablets to TVs or monitors. The connector is small enough for compact devices but larger than Micro HDMI.
Type D — Micro HDMI
Type D (Micro HDMI) is the smallest standard HDMI connector, measuring 6.4mm × 2.8mm. It retains all 19 pins in a form factor similar in size to Micro USB.
Micro HDMI is used on:
- Smartphones (less common now due to USB-C DisplayPort Alt Mode)
- Action cameras (GoPro and similar)
- Drones
- Compact embedded systems
Type D cables are more fragile than Type A or C due to the small connector size. In high-vibration or frequent-connect/disconnect applications, consider USB-C with DisplayPort Alt Mode as an alternative.
Type E — Automotive HDMI
Type E is an automotive-grade HDMI connector designed for in-vehicle use. It features a locking mechanism to prevent disconnection from vibration, and is designed to withstand the temperature extremes and EMI environment of automotive applications.
Type E is used in:
- In-vehicle infotainment systems
- Rear-seat entertainment
- Navigation displays
- Camera systems
Type E is not interchangeable with consumer HDMI connectors without an adapter. It is defined in the HDMI Automotive specification.
Type B — Dual-Link HDMI (Obsolete)
Type B was a 29-pin dual-link connector designed for very high resolutions. It was never widely adopted and is now obsolete. You will not encounter Type B in modern equipment.
HDMI Specification Versions
The HDMI connector shape is separate from the HDMI specification version. A Type A connector can carry HDMI 1.4, 2.0, or 2.1 signals — the version is determined by the cable and the source/sink devices, not the connector shape.
| Version | Max Bandwidth | Max Resolution | Key Features |
|---|---|---|---|
| HDMI 1.4 | 10.2 Gbps | 4K @ 30Hz | 3D, ARC, Ethernet channel |
| HDMI 2.0 | 18 Gbps | 4K @ 60Hz | HDR, 21:9 aspect ratio, 32 audio channels |
| HDMI 2.0a/b | 18 Gbps | 4K @ 60Hz HDR | HDR10, Dolby Vision |
| HDMI 2.1 | 48 Gbps | 10K @ 120Hz | VRR, ALLM, eARC, DSC |
HDMI 1.4
HDMI 1.4 (2009) introduced 4K support, but only at 30Hz — insufficient for smooth video. It also added the HDMI Ethernet Channel (HEC) for network data over HDMI, and the Audio Return Channel (ARC) for sending audio from a TV back to an AV receiver without a separate cable.
HDMI 1.4 is still found on older TVs, monitors, and AV equipment. For 4K content at 60Hz or HDR, HDMI 1.4 is insufficient.
HDMI 2.0
HDMI 2.0 (2013) increased bandwidth to 18 Gbps, enabling 4K at 60Hz — the standard for modern 4K content. It also added support for HDR (High Dynamic Range) in the 2.0a/b revisions, 21:9 ultra-wide aspect ratios, and up to 32 audio channels.
HDMI 2.0 is the minimum specification for a proper 4K HDR setup. Most current TVs, monitors, and graphics cards support HDMI 2.0.
HDMI 2.1
HDMI 2.1 (2017) is a major upgrade, increasing bandwidth to 48 Gbps — nearly 3× HDMI 2.0. This enables:
- 4K @ 120Hz for gaming and high-frame-rate content
- 8K @ 60Hz and 10K @ 120Hz (with Display Stream Compression)
- Variable Refresh Rate (VRR): Eliminates screen tearing in games
- Auto Low Latency Mode (ALLM): Automatically switches to game mode
- Enhanced ARC (eARC): Supports lossless audio formats (Dolby TrueHD, DTS-HD MA) with up to 37 Mbps bandwidth
- Quick Frame Transport (QFT): Reduces latency for gaming and real-time applications
HDMI 2.1 is standard on current-generation gaming consoles (PS5, Xbox Series X), high-end graphics cards (RTX 4000 series, RX 7000 series), and premium TVs and monitors.
Cable Ratings and Certification
HDMI cables are certified under several categories:
| Cable Category | Max Bandwidth | Supports |
|---|---|---|
| Standard HDMI Cable | 4.95 Gbps | 1080p |
| High Speed HDMI Cable | 10.2 Gbps | 4K @ 30Hz, 3D |
| Premium High Speed HDMI Cable | 18 Gbps | 4K @ 60Hz, HDR |
| Ultra High Speed HDMI Cable | 48 Gbps | 8K, 4K @ 120Hz, VRR |
For HDMI 2.1 features (4K @ 120Hz, VRR, eARC), you need an Ultra High Speed HDMI Cable certified for 48 Gbps. Using a lower-rated cable with an HDMI 2.1 source and sink will limit performance to the cable's rated bandwidth.
The HDMI Forum provides a cable certification program. Certified cables carry a QR code that can be scanned to verify authenticity. Uncertified cables claiming HDMI 2.1 performance are common and often do not meet the specification.
HDMI vs DisplayPort vs USB-C
For PC monitors and professional AV applications, HDMI competes with DisplayPort and USB-C (with DisplayPort Alt Mode).
| Interface | Max Bandwidth | Max Resolution | Audio | Daisy Chain |
|---|---|---|---|---|
| HDMI 2.1 | 48 Gbps | 10K | Yes (eARC) | No |
| DisplayPort 2.1 | 80 Gbps | 16K | Yes | Yes (up to 4 displays) |
| USB4/TB4 (DP Alt) | 40 Gbps | 8K | Yes | Yes (TB4) |
DisplayPort has higher bandwidth than HDMI 2.1 and supports daisy-chaining multiple monitors. It is preferred for PC gaming monitors and professional workstations.
HDMI is preferred for consumer AV equipment (TVs, AV receivers, projectors) because of its widespread adoption in that market and features like ARC/eARC and CEC.
USB-C with DisplayPort Alt Mode is increasingly used on laptops and mobile devices, providing a single-cable solution for video, data, and power.
HDMI in Industrial and Embedded Applications
HDMI is used beyond consumer electronics in:
Digital signage: Commercial displays use HDMI for content delivery from media players. HDMI 2.0 is standard for 4K signage.
Medical imaging: HDMI carries video from endoscopes, ultrasound machines, and surgical cameras to displays. Medical-grade HDMI cables with locking connectors are available.

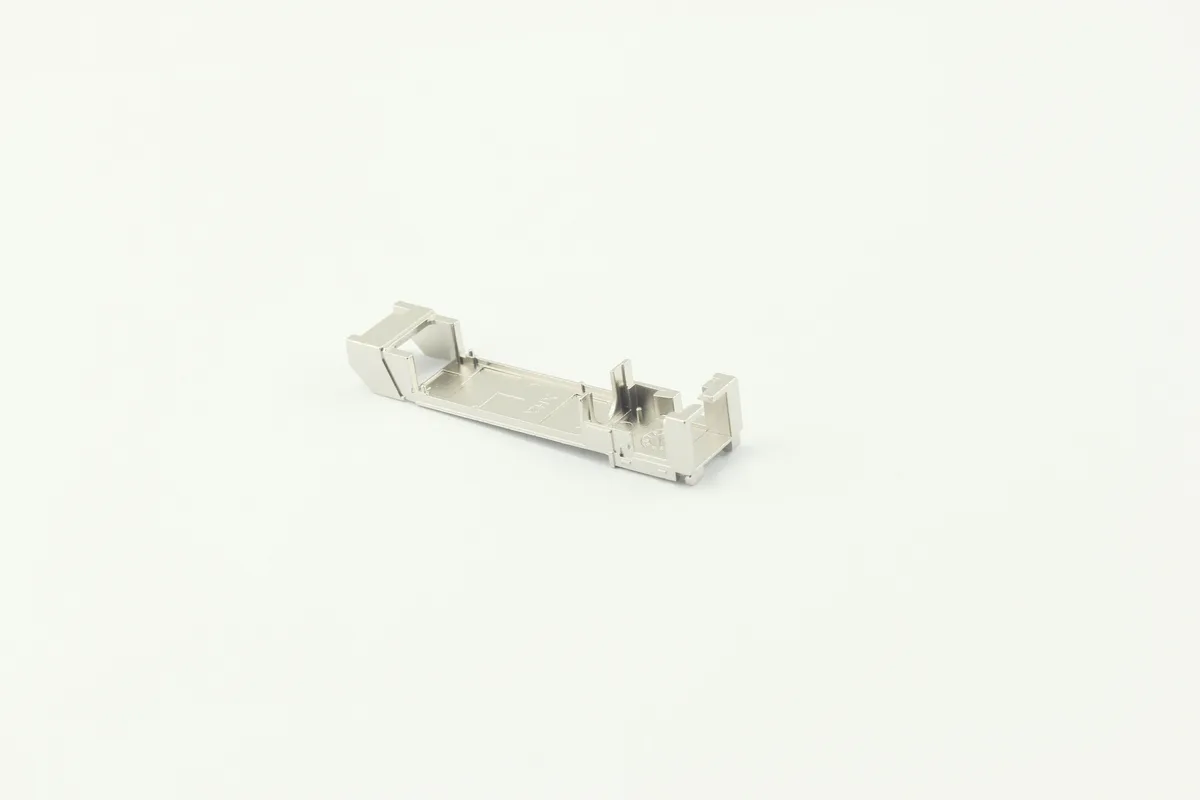

Industrial HMI: HDMI connects industrial computers to operator panels and displays. Panel-mount HDMI receptacles with IP ratings are available for harsh environments.
Broadcast and production: HDMI is used alongside SDI in broadcast environments for monitoring and preview outputs.
For industrial applications, consider:
- Locking HDMI connectors to prevent accidental disconnection
- Right-angle connectors for space-constrained installations
- Armored cables for protection against physical damage
- Long-distance extenders (HDMI over fiber or Cat6) for runs beyond 10 meters
CZT's USB and I/O connector range includes HDMI Type A, Type C, and Type D connectors for consumer, industrial, and embedded applications, along with panel-mount variants and cable assemblies.
Choosing the Right HDMI Connector
| Application | Recommended Connector | Notes |
|---|---|---|
| TV, monitor, AV receiver | Type A (Standard) | Universal choice |
| Camera, tablet, SBC | Type C (Mini) or Type D (Micro) | Check device spec |
| Automotive infotainment | Type E (Automotive) | Locking, vibration-resistant |
| 4K @ 60Hz | HDMI 2.0, Premium High Speed cable | Minimum for 4K HDR |
| 4K @ 120Hz / 8K | HDMI 2.1, Ultra High Speed cable | Required for VRR, eARC |
| Industrial / harsh environment | Type A with locking or IP-rated housing | Panel-mount options available |
Summary
HDMI connector selection involves two independent decisions: the physical connector type (A, C, D, or E) based on the device form factor, and the cable/specification version (1.4, 2.0, 2.1) based on the required bandwidth and features.
For new designs:
- Use Type A for fixed AV equipment
- Use Type C or D for compact portable devices (or consider USB-C with DP Alt Mode)
- Use Type E for automotive applications
- Specify HDMI 2.1 / Ultra High Speed cables for 4K @ 120Hz or 8K applications
- Specify HDMI 2.0 / Premium High Speed cables for 4K @ 60Hz HDR
