The USB-C connector (officially USB Type-C) has become the dominant interface for modern consumer electronics, laptops, smartphones, and an increasing range of industrial and embedded devices. Its 24-pin reversible design supports data transfer, video output, and power delivery over a single cable — but the capabilities of any given USB-C cable or port depend entirely on the underlying protocol it implements.
This guide covers everything you need to know about USB-C: the connector specification, the protocols it carries, power delivery capabilities, and how to select the right USB-C components for your application.

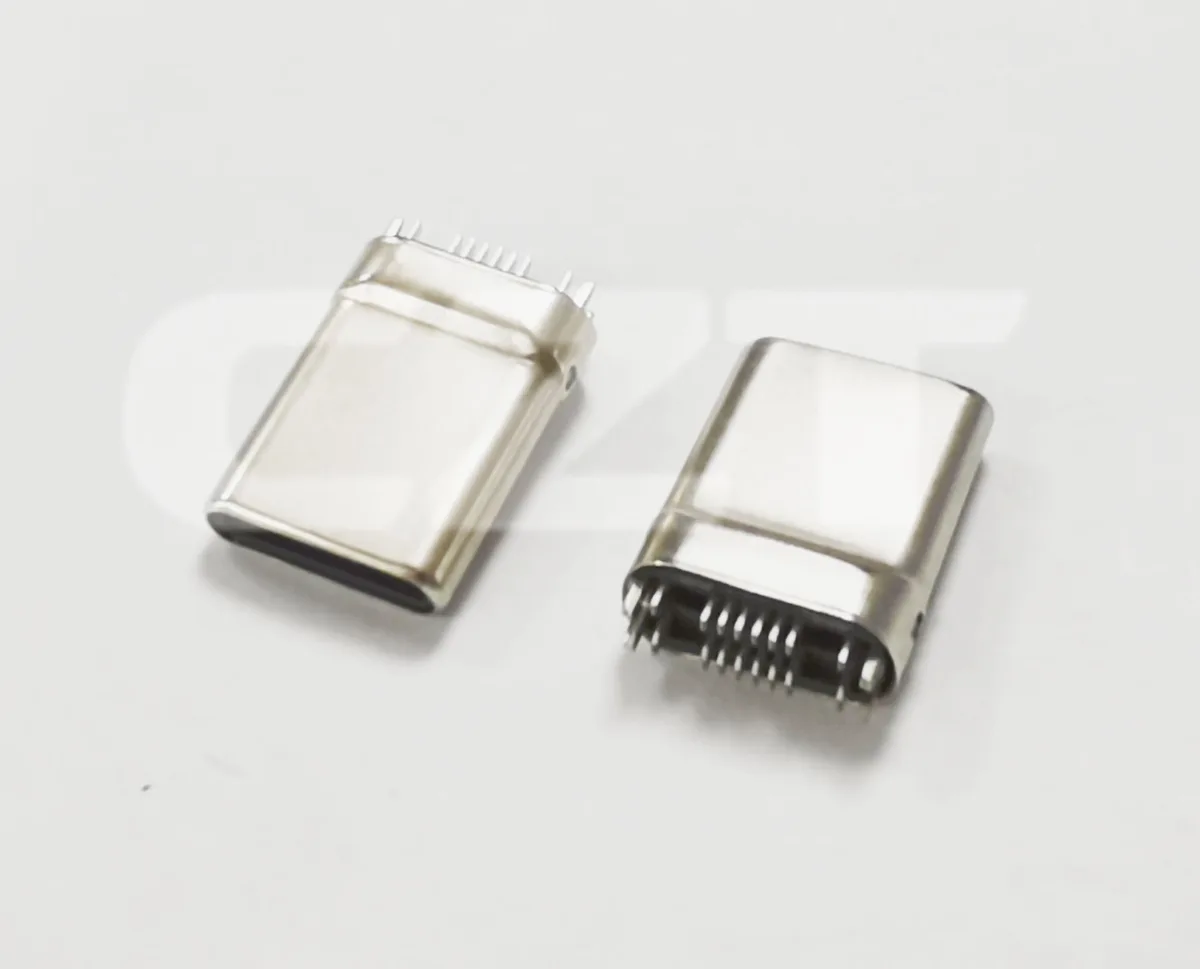

The USB-C Connector: Physical Specification
The USB-C connector is defined by the USB Type-C Specification, maintained by the USB Implementers Forum (USB-IF). Key physical characteristics:
- 24 pins in a symmetrical layout (12 pins on each side)
- Reversible: Either orientation works — no "wrong way" to plug in
- Dimensions: 8.34mm × 2.56mm (plug), smaller than USB-A or USB-B
- Mating cycles: Rated for 10,000 insertions minimum
- Current rating: Up to 5A (with e-marked cables)
The 24 pins include:
- 4 power pins (VBUS)
- 4 ground pins
- 2 high-speed differential pairs (TX/RX) per side = 4 pairs total
- 2 sideband use (SBU) pins
- 2 configuration channel (CC) pins
- 2 USB 2.0 data pins (D+/D-)
The CC pins handle orientation detection, cable capability negotiation, and USB Power Delivery communication.
USB-C Is a Connector, Not a Protocol
The most important thing to understand about USB-C is that the connector shape tells you nothing about the speed or capabilities of the port. USB-C is a physical connector standard. The protocols running over it vary enormously:
| Protocol | Max Speed | Notes |
|---|---|---|
| USB 2.0 | 480 Mbps | Many budget cables and charger-only ports |
| USB 3.2 Gen 1 | 5 Gbps | SuperSpeed USB |
| USB 3.2 Gen 2 | 10 Gbps | SuperSpeed USB 10Gbps |
| USB 3.2 Gen 2×2 | 20 Gbps | Dual-lane, requires certified cable |
| USB4 Gen 2×2 | 20 Gbps | USB4 baseline |
| USB4 Gen 3×2 | 40 Gbps | USB4 top speed |
| Thunderbolt 3 | 40 Gbps | Intel spec, USB-C connector |
| Thunderbolt 4 | 40 Gbps | Enhanced TB3 with stricter requirements |
| Thunderbolt 5 | 120 Gbps | Latest generation |
A USB-C port on a phone charger may only support USB 2.0 (480 Mbps). A USB-C port on a high-end laptop may support Thunderbolt 4 (40 Gbps). Both use the identical connector.
USB Power Delivery (USB PD)
USB Power Delivery is the charging protocol that enables USB-C to deliver significantly more power than earlier USB standards.
| Standard | Max Power |
|---|---|
| USB 2.0 (legacy) | 2.5 W (5V/0.5A) |
| USB 3.x (legacy) | 4.5 W (5V/0.9A) |
| USB BC 1.2 | 7.5 W (5V/1.5A) |
| USB PD 2.0/3.0 | 100 W (20V/5A) |
| USB PD 3.1 (EPR) | 240 W (48V/5A) |
USB PD uses the CC pins to negotiate voltage and current between the charger (source) and device (sink). The negotiation happens in real time — a laptop might request 20V/3A (60W) while a phone requests 9V/2A (18W) from the same charger.
USB PD 3.1 introduced Extended Power Range (EPR), supporting up to 48V and 240W. This enables USB-C to replace barrel connectors on high-power laptops, monitors, and even some industrial equipment.
For USB PD above 60W, an e-marked cable is required. E-marked cables contain a chip in the connector that identifies the cable's current rating to the charger. Without an e-marked cable, USB PD is limited to 60W (20V/3A).
Alternate Mode (Alt Mode)
USB-C supports Alternate Mode, which allows the high-speed data lanes to carry non-USB protocols. The most common Alt Modes:
DisplayPort Alt Mode: Carries DisplayPort video signals over USB-C. Supports up to DisplayPort 2.1 (80 Gbps, 16K resolution). Widely used on laptops and monitors.
HDMI Alt Mode: Carries HDMI signals directly. Less common than DisplayPort Alt Mode but used on some smartphones and tablets.
Thunderbolt 3/4: Intel's Thunderbolt protocol uses USB-C and supports 40 Gbps data, DisplayPort video, and daisy-chaining of up to six devices. Thunderbolt 4 adds requirements for minimum 32 Gbps PCIe bandwidth and dual 4K or single 8K display support.
USB4: The latest USB specification is based on the Thunderbolt 3 protocol and is backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3. USB4 Gen 3×2 delivers 40 Gbps.
When a USB-C port is in Alt Mode, some or all of the USB data lanes are repurposed for the alternate protocol. A USB-C port in DisplayPort Alt Mode may simultaneously carry USB 2.0 data (using the D+/D- pins) while the high-speed lanes carry video.
Cable Types and Ratings
Not all USB-C cables are equal. The cable you use determines what capabilities are available:
USB 2.0 cables: Only connect the D+/D- pins and power. No high-speed data. Common in cheap charger cables. Maximum 60W (without e-mark) or 100W (with e-mark).
USB 3.2 Gen 1/2 cables: Connect the SuperSpeed pairs. Support 5 or 10 Gbps data. Available in passive (up to 1m) and active (longer) versions.
USB 3.2 Gen 2×2 cables: Dual-lane 20 Gbps. Require certified cables; passive cables limited to ~1m.
USB4/Thunderbolt 3/4 cables: 40 Gbps. Passive cables limited to 0.8m; active cables available up to 2m. Thunderbolt cables are backward compatible with USB4 and USB 3.x.
240W EPR cables: E-marked cables rated for 48V/5A. Required for USB PD 3.1 above 60W.
USB-C in Industrial and Embedded Applications
USB-C is increasingly used beyond consumer electronics:
Industrial HMI panels: USB-C provides a single-cable solution for display output (DisplayPort Alt Mode) and data communication.
Embedded systems: USB-C receptacles are replacing micro-USB and USB-B on development boards and industrial controllers. The reversible connector reduces assembly errors.
Test and measurement: USB-C supports high-speed data acquisition and instrument control.
Medical devices: USB-C's sealed variants (with IP ratings) are used in medical equipment where cleanability is required.
For industrial applications, key considerations include:
- Retention force: Standard USB-C has relatively low retention force (~10N). Locking USB-C connectors are available for vibration-prone environments.
- IP rating: Panel-mount USB-C receptacles with IP67/IP68 sealing are available for outdoor and washdown applications.
- Current rating: Verify the connector's current rating matches the USB PD level required.

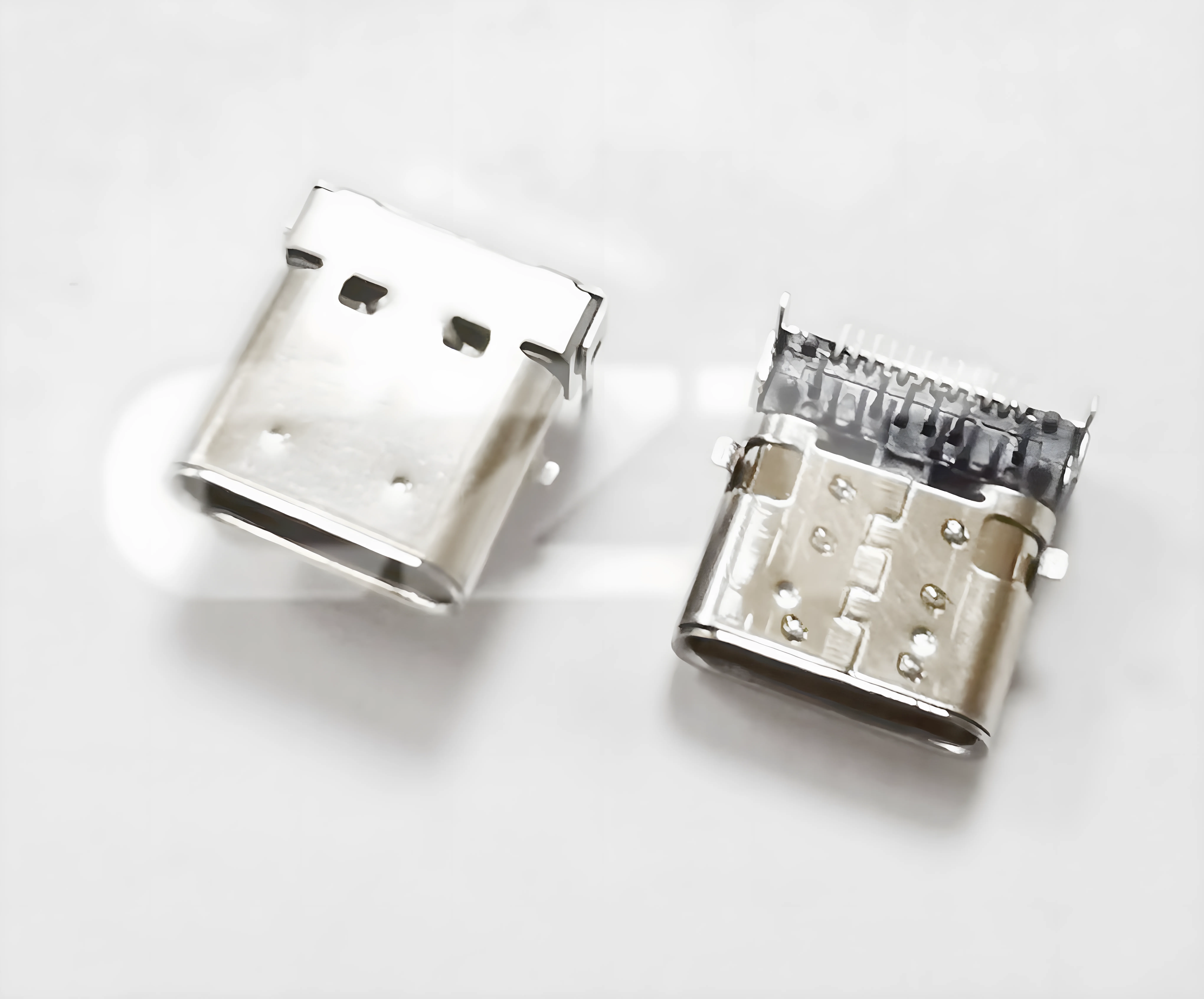

CZT's USB and I/O connector range includes USB-C receptacles, plugs, and panel-mount connectors for consumer, industrial, and embedded applications.
Choosing the Right USB-C Cable
When selecting a USB-C cable, specify based on your requirements:
| Requirement | Cable Spec |
|---|---|
| Charging only (up to 60W) | USB 2.0, no e-mark required |
| Charging up to 100W | USB 2.0 with e-mark |
| Charging up to 240W | EPR cable, 48V/5A e-mark |
| 5 Gbps data transfer | USB 3.2 Gen 1 |
| 10 Gbps data transfer | USB 3.2 Gen 2 |
| 4K display output | DisplayPort Alt Mode, USB 3.2 Gen 2 |
| 40 Gbps data / Thunderbolt | USB4 / Thunderbolt 3/4 certified cable |
Always look for USB-IF certified cables. Uncertified cables may not meet the specification and can cause charging failures, data errors, or in extreme cases, damage to connected devices.
Common USB-C Compatibility Issues
"Why is my USB-C cable slow?" — The cable may only support USB 2.0. Check the cable's rated speed.
"Why won't my monitor work over USB-C?" — The port or cable may not support DisplayPort Alt Mode. Not all USB-C ports support video output.
"Why is my laptop only charging at 18W instead of 65W?" — The charger may not support USB PD, or the cable may not be e-marked for higher power.
"Why does my USB-C device not work with my USB-C hub?" — Some hubs only support USB 3.x data and not Thunderbolt or USB4. Check the hub's specifications.
The root cause of most USB-C confusion is that the connector's appearance gives no indication of its capabilities. Always check the port and cable specifications, not just the connector shape.
Summary
USB-C is a versatile connector that can carry USB 2.0 through USB4, DisplayPort, HDMI, Thunderbolt, and up to 240W of power — but only if the port, cable, and device all support the required protocol. When specifying USB-C components:
- Identify the required data speed (USB 2.0, 3.2, USB4, Thunderbolt)
- Identify the required power level (5W to 240W)
- Determine if video output (Alt Mode) is needed
- Select cables and connectors rated for all required capabilities
- For industrial use, consider locking connectors and IP-rated variants
