USB (Universal Serial Bus) has gone through multiple generations and connector types since its introduction in 1996. Today's USB ecosystem includes USB-A, USB-B, USB-C, Micro-USB, Mini-USB, and various USB 3.x variants — each with different speeds, power delivery capabilities, and physical forms.
USB Connector Types Overview
| Connector | Common Use | Max USB Version |
|---|---|---|
| USB-A | Host ports (computers, chargers) | USB 3.2 Gen 2 |
| USB-B | Printers, older devices | USB 3.2 Gen 1 |
| Mini-USB | Older cameras, MP3 players | USB 2.0 |
| Micro-USB | Older phones, accessories | USB 3.2 Gen 1 |
| USB-C | Modern devices, universal | USB4 Gen 3 |

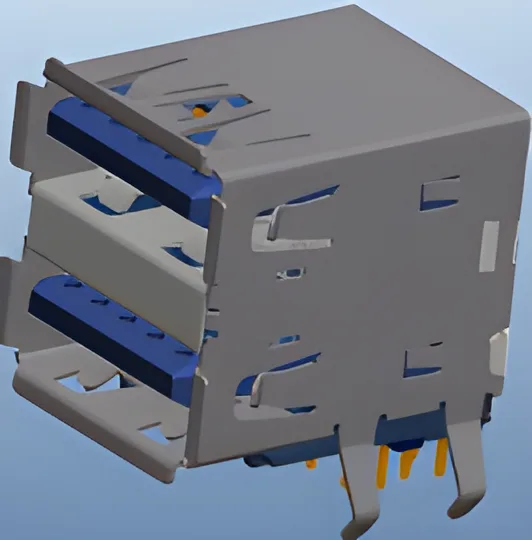

USB-A (Type-A)
The rectangular connector found on virtually every computer, charger, and USB hub. USB-A is the "host" connector — it's on the device that provides power and initiates communication.
Versions:
- USB 1.1: 12 Mbps
- USB 2.0: 480 Mbps (black or white port)
- USB 3.0/3.1 Gen 1/3.2 Gen 1: 5 Gbps (blue port)
- USB 3.1 Gen 2/3.2 Gen 2: 10 Gbps (red or teal port)
Power delivery: Up to 5V/0.9A (4.5W) standard; up to 5V/1.5A or 5V/3A with USB Battery Charging spec.
Backward compatibility: USB-A ports are backward compatible — a USB 2.0 device works in a USB 3.0 port (at USB 2.0 speed).
USB-B (Type-B)
The square connector with beveled top corners, found on printers, scanners, and older external hard drives.
Versions:
- USB 2.0 Type-B: Standard square connector
- USB 3.0 Type-B: Larger, with additional contacts on top — not backward compatible with USB 2.0 Type-B ports
USB-B is being replaced by USB-C in newer devices.
Mini-USB
A smaller connector used in older digital cameras, MP3 players, and early smartphones (2000s–2010s). Supports USB 2.0 only.
Mini-USB has been largely replaced by Micro-USB and USB-C. It's still found on some older test equipment and industrial devices.
Micro-USB
The small, trapezoidal connector that was the standard for Android phones and accessories from ~2010 to ~2018.
Versions:
- Micro-USB 2.0: 480 Mbps, 5V/1.8A charging
- Micro-USB 3.0: 5 Gbps, wider connector with additional contacts — used on older external hard drives
Micro-USB is still common on budget accessories, power banks, and some industrial devices, but has been largely replaced by USB-C in consumer electronics.
USB-C (Type-C)
The oval, reversible connector that is now the universal standard for modern devices. USB-C is the connector; the USB version (speed) depends on the device.
Key features:
- Reversible: No wrong way to plug in
- Universal: Same connector for phones, laptops, monitors, docks
- High power: Supports USB Power Delivery (USB PD) up to 240W (USB PD 3.1)
- Video output: Supports DisplayPort Alt Mode, HDMI Alt Mode, Thunderbolt
USB-C speeds by USB version:
- USB 2.0: 480 Mbps (common on budget devices and chargers)
- USB 3.2 Gen 1: 5 Gbps
- USB 3.2 Gen 2: 10 Gbps
- USB 3.2 Gen 2×2: 20 Gbps
- USB4 Gen 2×2: 20 Gbps
- USB4 Gen 3×2: 40 Gbps
- Thunderbolt 4: 40 Gbps (Intel certification)
Important: Not all USB-C cables and ports support the same speeds. A USB-C cable may only support USB 2.0 speeds even if the port supports USB 3.2. Check cable specifications.
USB Power Delivery (USB PD)
USB PD is a charging standard that allows higher power delivery over USB-C:
| USB PD Version | Max Power |
|---|---|
| USB PD 2.0 | 100W (20V/5A) |
| USB PD 3.0 | 100W (20V/5A) |
| USB PD 3.1 | 240W (48V/5A) |
USB PD requires both the charger and device to support it. It negotiates voltage and current between the charger and device.
Thunderbolt
Thunderbolt is Intel's high-speed interface that uses the USB-C connector. It's a superset of USB4.
| Version | Speed | Power | Video |
|---|---|---|---|
| Thunderbolt 3 | 40 Gbps | 100W | 2× 4K or 1× 5K |
| Thunderbolt 4 | 40 Gbps | 100W | 2× 4K |
| Thunderbolt 5 | 120 Gbps | 240W | 3× 4K or 1× 8K |
Thunderbolt ports are marked with a lightning bolt icon. Thunderbolt cables work in USB-C ports (at USB speeds); USB-C cables work in Thunderbolt ports (at USB speeds).
USB Version vs Connector Type
USB version (speed) and connector type are independent:
| USB Version | Connector Options |
|---|---|
| USB 2.0 | USB-A, USB-B, Mini-USB, Micro-USB, USB-C |
| USB 3.2 Gen 1 (5G) | USB-A, USB-B, Micro-USB 3.0, USB-C |
| USB 3.2 Gen 2 (10G) | USB-A, USB-C |
| USB4 (40G) | USB-C only |
Choosing the Right USB Cable
| Need | Cable Type |
|---|---|
| Charging only | Any USB-C cable (check wattage rating) |
| Fast data transfer | USB 3.2 Gen 2 or USB4 cable |
| Video output | USB-C with DisplayPort or Thunderbolt support |
| High-power charging (>100W) | USB PD 3.1 rated cable (240W) |
| Legacy device | Match the device's connector type |
Summary
USB has evolved from a simple 12 Mbps interface to a 40+ Gbps universal standard:
- USB-A: Still the most common host connector; supports up to USB 3.2 Gen 2 (10G)
- USB-C: The universal future — reversible, high-speed, high-power, video-capable
- Micro-USB: Legacy standard, still common on budget devices
- USB4/Thunderbolt: Maximum performance over USB-C
When buying USB-C cables, check the speed rating — not all USB-C cables are equal.
