Comparable plating quotations need the same terminal drawing, finish definition, inspection scope and delivery condition. A low piece price may cover less measurement, different packaging or a different surface system, so the technical and commercial comparison should be made together.
Figure 1. CZT electroplating workshop. A real plating-workshop image supplies process-scope context for comparing quotations, not a capacity or price promise. CZT source · Original image.
Define the surface work before pricing
Provide the base material, operation state, functional zones and required stack. Explain whether the terminals arrive on strip, formed or as loose pieces. Mark any selective boundary, masking area or restriction on fixture-contact marks.
Separate fixed requirements from alternatives that the supplier may propose. If a different stack, source or inspection method is offered, require the difference to be identified rather than hidden inside a general statement of compliance.
Use a common quotation worksheet
| Cost or scope item | What to compare |
|---|---|
| Surface system | Base condition, layers, coverage and drawing revision |
| Setup | Fixtures, masking or batch preparation |
| Inspection | Locations, method, sampling and report content |
| Yield and rework | Agreed treatment of rejected or repeated work |
| Packaging | Protection, orientation, quantity and lot labels |
| Delivery | Sample stage, production quantity and destination assumptions |
Do not compare a quote including a detailed measurement report with one including only a certificate unless the difference is understood. Likewise, a thickness target and a guaranteed minimum at a marked point are different requirements and may lead to different process assumptions.
Make sample approval part of the scope
Agree on what the sample batch should demonstrate. It may be necessary to confirm finish coverage, measurement access, downstream assembly and contact behavior. Identify the responsible party for each evaluation and the condition in which the samples will be supplied.
If test work or special reporting is not included, list it as an open commercial item. Avoid treating a verbal willingness to discuss qualification as proof that the quotation already includes the required work.
For CZT connector electroplating references, use the actual SFP, USB or other catalog identifier alongside the controlled terminal drawing. A family listing does not establish a standard price, finish stack or inspection package for every project.
Figure 2. CZT X-ray thickness instrument. Inspection scope belongs in a comparable quote; this equipment photograph establishes no report entitlement or measured thickness. CZT source · Original image.
Review delivery protection as a functional requirement
Select packaging that protects the finished areas through the intended handling and assembly route. Define identification so loose or split material remains traceable. Where orientation matters for automated handling, document the interface rather than relying on a generic packing description.
Finish the comparison with a written list of inclusions, exceptions and unresolved inputs. Transfer the accepted surface and inspection definition into the order documentation. This helps ensure that a favorable quotation becomes a reproducible delivered condition instead of a price attached to several different interpretations of the work.
Connect this review to CZT product information
Catalog references to discuss are listed below. Use the identifiers to request the current drawing and confirm the configuration required by your application.
| Catalog reference | Product information | Drawing record | Reference inquiry |
|---|---|---|---|

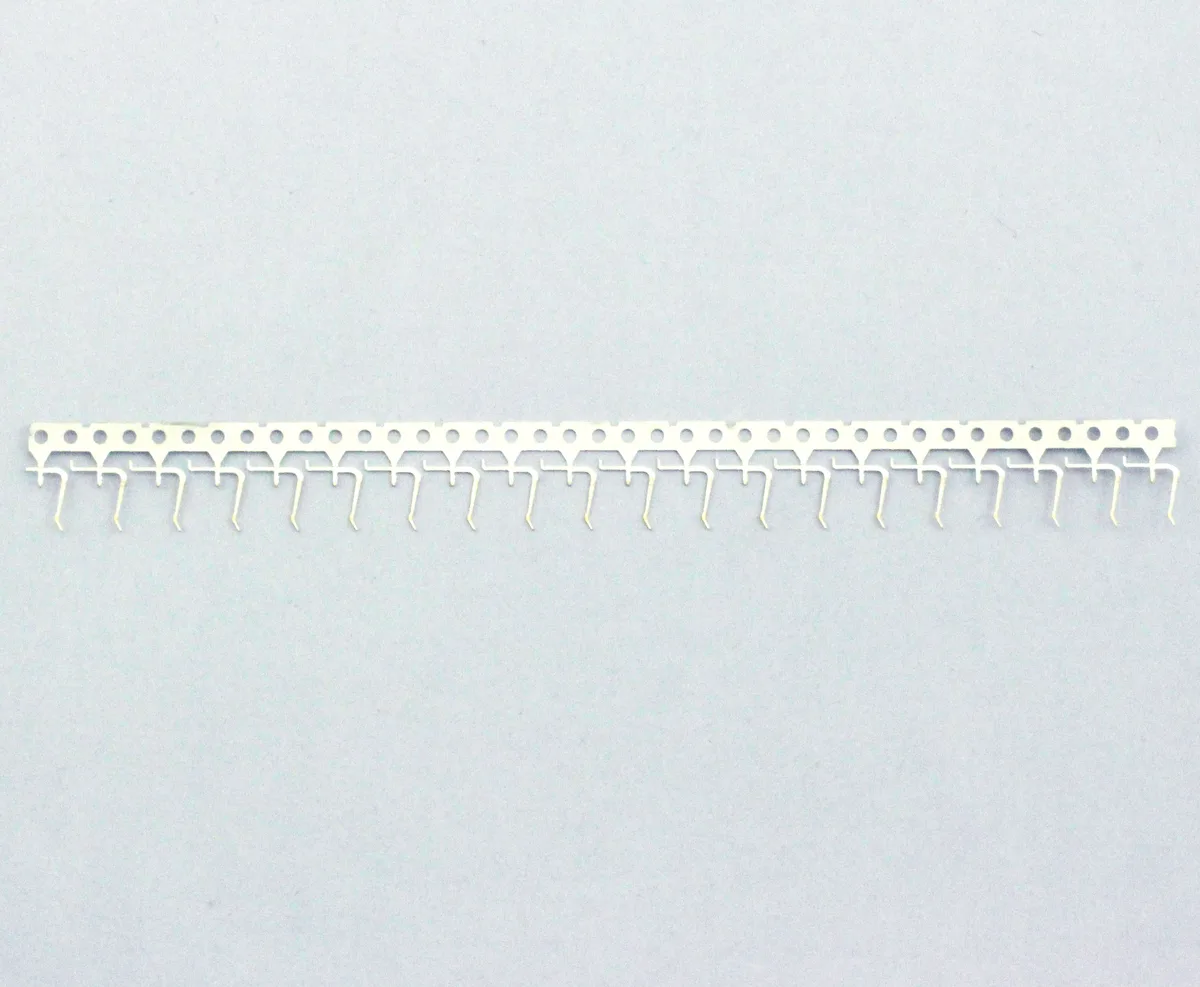

| SFP 1x1 connector terminal catalog record | SFP 1x1 connector terminal catalog record | Request the current drawing | Ask about this reference |

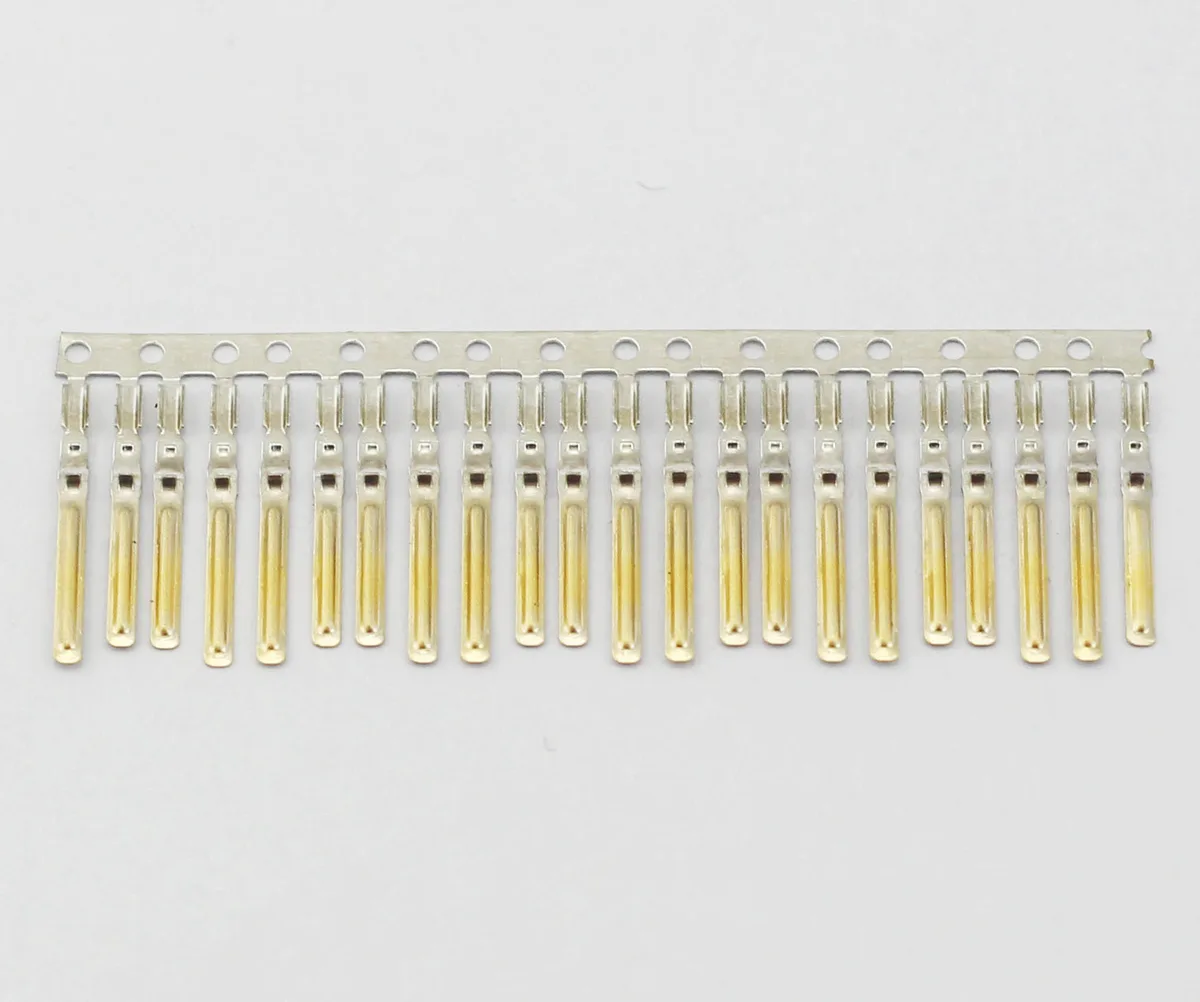

| USB contact terminal catalog record A | USB contact terminal catalog record A | Request the current drawing | Ask about this reference |
These entries identify catalog families. Their listing does not establish a numerical rating, finished-part tolerance or test approval; obtain that evidence for the requested revision.
Browse the relevant product family · View catalog resources
Discuss a drawing, sample or quotation
Share the part or family reference, current drawing revision, operating conditions and quantities. Include the specific checks described in this article so the inquiry identifies both the component and the evidence needed for your decision. Confirm sample availability and the proposed scope with the supplier.
