Qualify a copper-to-aluminum busbar transition as a complete joint, including its surface system, hardware and environmental exposure. Material conductivity comparisons do not establish long-term joint behavior. The evidence should show how resistance, mechanical condition and temperature change during the specified conditioning of the actual construction.

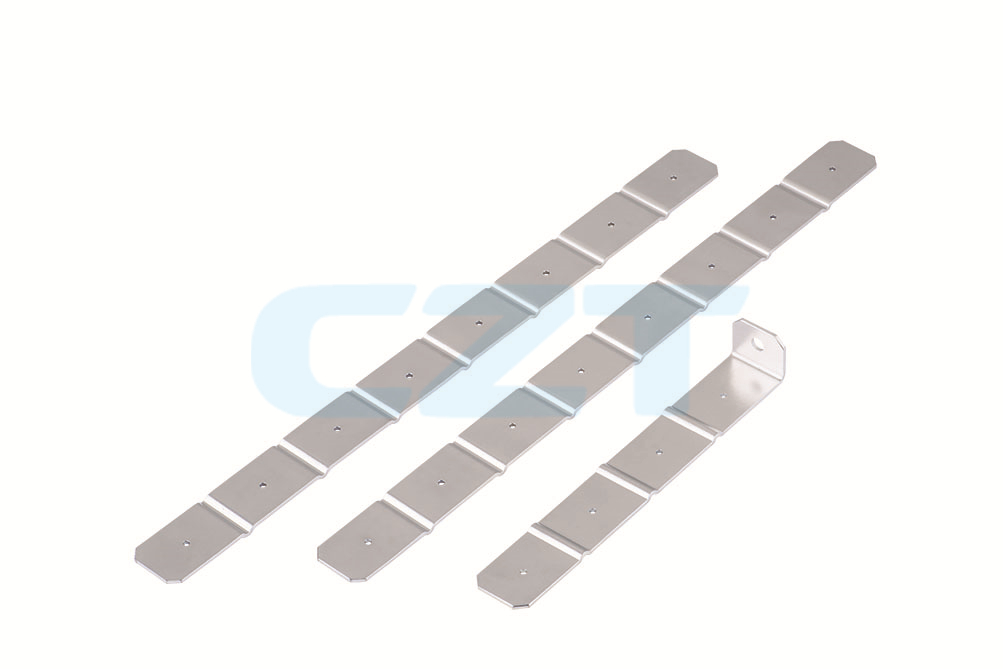

Figure 1. CZT battery-pack connection-strip examples show the physical interfaces that need material and joint records before a copper-to-aluminum transition can be qualified. CZT source · Original image.
Identify the transition design
Record copper and aluminum material identities, contact geometry and any coating, compound or intermediate transition element. Show which surfaces carry current and where moisture could reach the interface. An approved transition method cannot be inferred from the fact that both metals appear in a product catalog.
Also record the fastening stack and assembly method. If the proposal is a welded or clad transition rather than direct bolting, request evidence specific to that process and its inspection criteria. Avoid evaluating different transition technologies through a single generic checklist item marked copper/aluminum compatible.
Define the thermal-cycling question
State the temperature range, starting condition, electrical loading and cycle sequence from the application requirements. Explain what failure mechanism the conditioning is intended to investigate. Environmental cycling and load cycling are different test inputs; identify which one the report actually used.
A published study of aluminum busbars with copper ends investigated mechanical and electrical behavior under thermal loading. It supports treating the joint construction as a system-level validation subject, not transferring its results to a different manufacturing method or supplier.
Track a consistent set of measurements
| Stage | Evidence to retain |
|---|---|
| Before conditioning | Material records, assembly state and baseline resistance |
| During conditioning | Actual temperatures, loading and interruptions |
| At planned intervals | Comparable resistance and visible joint condition |
| After conditioning | Thermal performance and specified mechanical checks |
| Investigation samples | Sections or surface examination where required |
Use the same resistance reference points at each stage. Record sample temperature or an agreed correction approach so that a temperature difference is not confused with irreversible joint change.

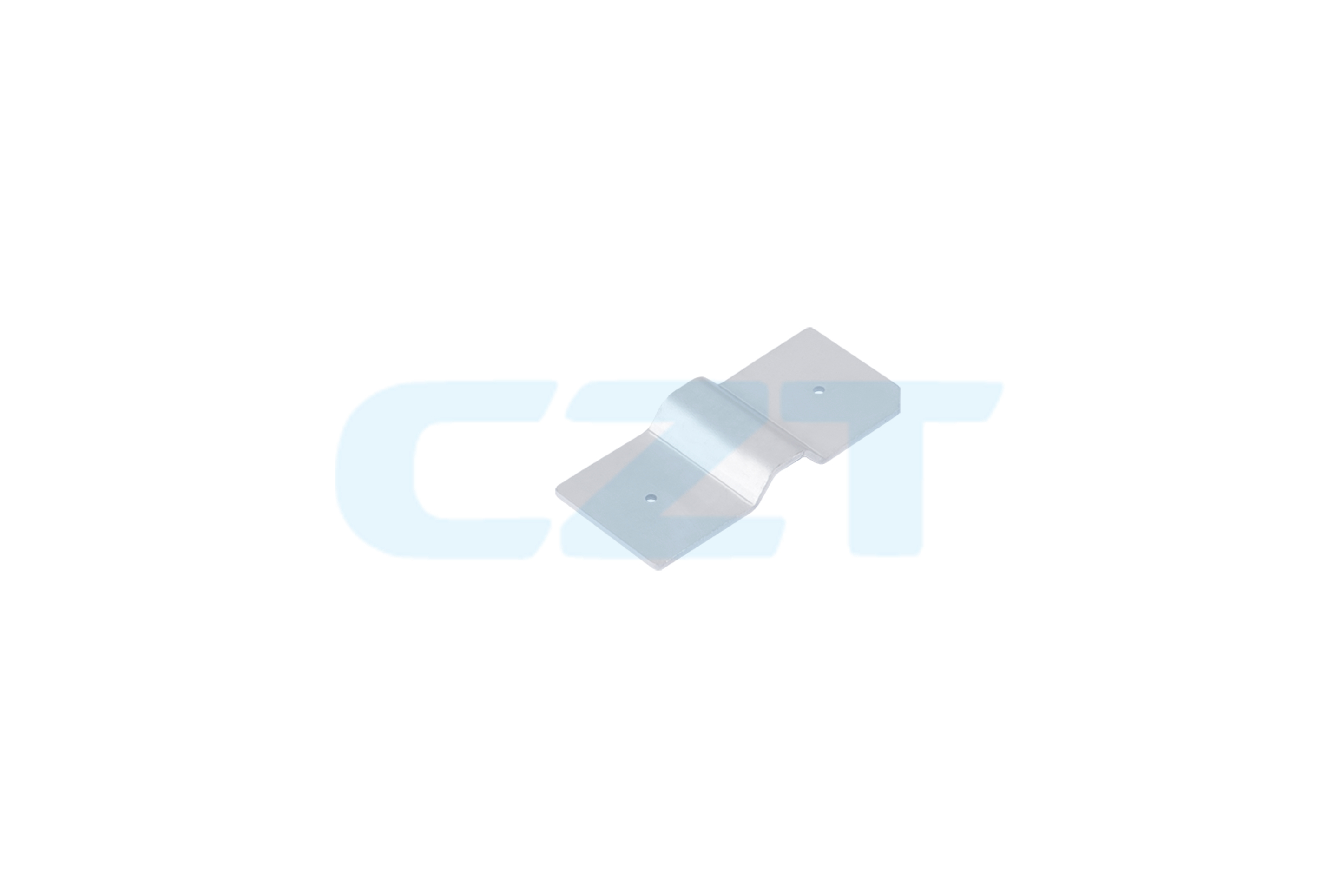

Figure 2. CZT cell-connection example illustrates a compact transition geometry. Confirm constituent metals and joining construction independently before selecting thermal-cycle acceptance evidence. CZT source · Original image.
Decide the acceptance scope
Set limits and required observations before the run. If a fastener is retightened during conditioning, document it and decide whether the modified sequence still represents the intended maintenance policy. An unrecorded intervention makes the endurance conclusion difficult to interpret.
CZT's busbar power-distribution family is a route for requesting a construction review. Its catalog references do not establish an approved copper-aluminum transition, corrosion performance or cycle life.
Include storage and installation exposure in the review where relevant. A joint assembled immediately in a laboratory may not represent parts stored, transported and handled before installation. Define preparation consistently instead of allowing each sample to receive a different informal cleanup.
Finish qualification with a statement limited to the tested materials, finishes, stack and conditions. A change of alloy, coating or joining process may require a new review even if the outline drawing stays the same. Preserve the tested configuration so that later production parts can be checked against the joint that generated the evidence.
