Check RJ45 latch access with the actual plug and boot in the installed enclosure. Enough space to insert a cable does not necessarily provide enough space to release its latch or remove it without pulling on the cable.
Use candidate dimensions from the CZT modular jack family and include neighboring hardware in the review. Service accessibility is an assembly property, not a dimension of the bare jack alone.
Define the maintenance action
Describe who connects and disconnects the cable and under what conditions. A factory assembler with open access faces a different task from a technician reaching into a crowded rack or equipment bay.
Identify whether gloves, adjacent cables or protective covers form part of the intended use. Keep those assumptions in the review rather than treating operator access as an informal final check.
Figure 1. Official QWY-1013-10 8P8C plug photograph, showing the housing, latch and contact region. CZT source · Original image.
Model the complete mating accessory
Include the plug body, latch, boot and cable exit. Different boots can occupy different space around the latch even when the mating contact interface is similar. Do not approve access using a bare plug if production cables will use a booted version.
Consider insertion and removal paths as well as the final installed position. The cable may need room to move while the latch is released, particularly when another connection sits immediately beside it.
Use an access checklist
| Access condition | Check |
|---|---|
| Initial insertion | Plug reaches its intended seated position |
| Latch operation | Release feature is reachable without damage |
| Cable removal | Pull direction is controlled through the plug body |
| Adjacent ports | Neighboring boots do not block access |
| Panel edge | Opening does not trap the latch or boot |
| Service sequence | Required cables can be removed in a practical order |
Record the exact cable accessory used for the check. A generic note that “an RJ45 cable fits” is not sufficient to reproduce the result.
Figure 2. Official photograph of the ESP130500 recessed RJ45 jack and its visible PCB-pin construction. CZT source · Original image.
Trial realistic crowded conditions
A single empty port can hide an access problem that appears only when neighboring ports are populated. Populate representative adjacent connections and repeat the maintenance action in the intended installation orientation.
For a hypothetical dense panel, a wide boot might clear the opening when alone but prevent access to the neighboring latch. The design response could involve spacing, accessory selection or a different port arrangement. The review should document the chosen solution rather than assuming operators can work around it.
Preserve the accessory boundary
Keep the accepted plug and boot envelope with the enclosure and jack records. If the cable supplier or boot style changes, revisit the access check even when the electrical cable specification remains the same.
This small mechanical review helps prevent avoidable field-service problems and unplanned connector loading. It also gives purchasing a concrete accessory requirement that is more useful than a photograph of a nominally compatible cable.
Connect this review to CZT product information
Catalog references to discuss are listed below. Use the identifiers to request the current drawing and confirm the configuration required by your application.
| Catalog reference | Product information | Drawing record | Reference inquiry |
|---|---|---|---|
| QWY-1062-7 | 4001 Series 8-position modular socket, QWY-1062-7 | Listed PDF | Ask about this reference |

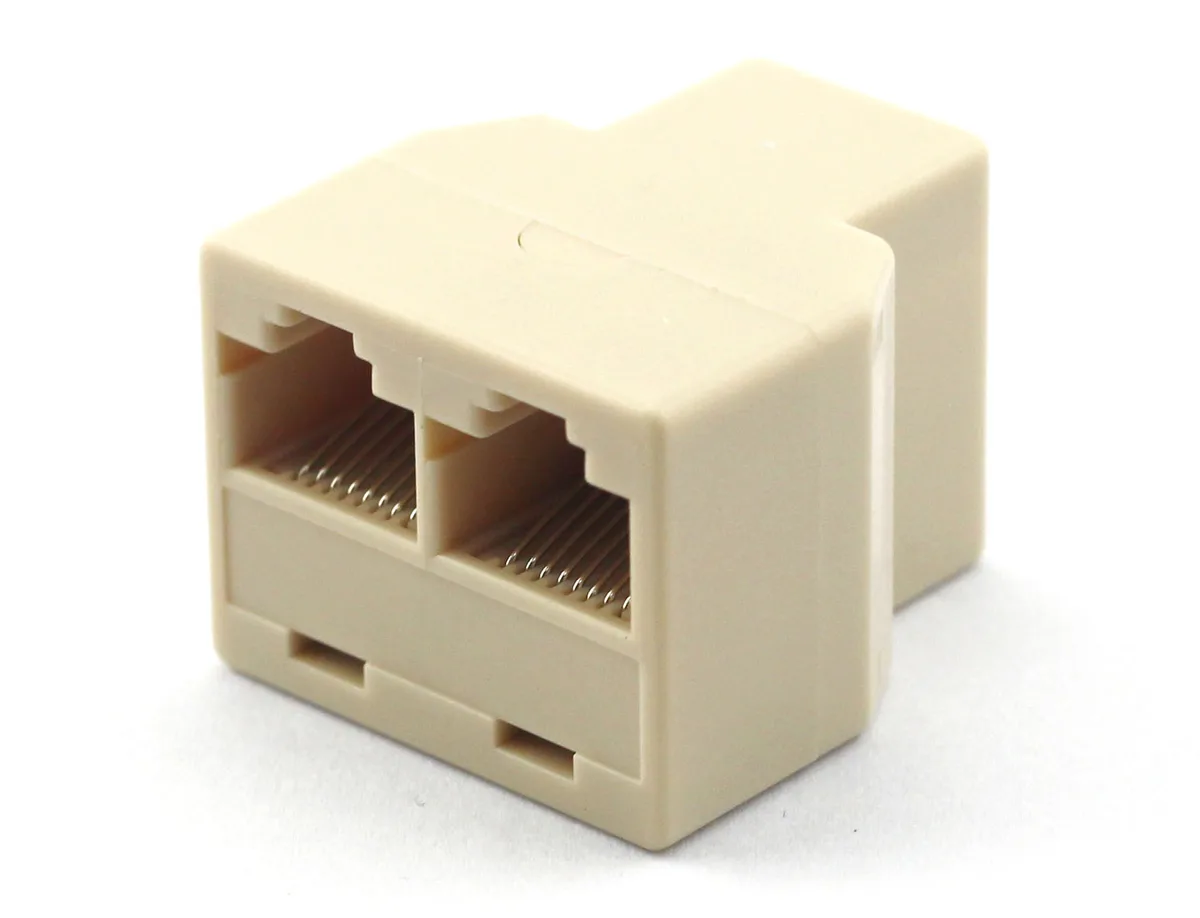

| QWY-1065-2 | 4004 Series 8-position modular socket, QWY-1065-2 | Listed PDF | Ask about this reference |
A catalog drawing reference is a starting document, not a substitute for reviewing its revision, options and suitability for the complete assembly.
