A USB Type-A durability plan should reproduce how the port is used in the equipment. The cycle count is only one input. Plug identity, insertion direction, board support and the electrical checks performed during the sequence determine what the result can actually demonstrate.
Begin with a confirmed drawing and qualification requirements for the selected receptacle. The USB and HDMI product family is a place to locate catalog candidates; it does not establish the mating endurance of an unspecified model. USB-IF's connector compliance guidance identifies the relevant compliance-document framework.

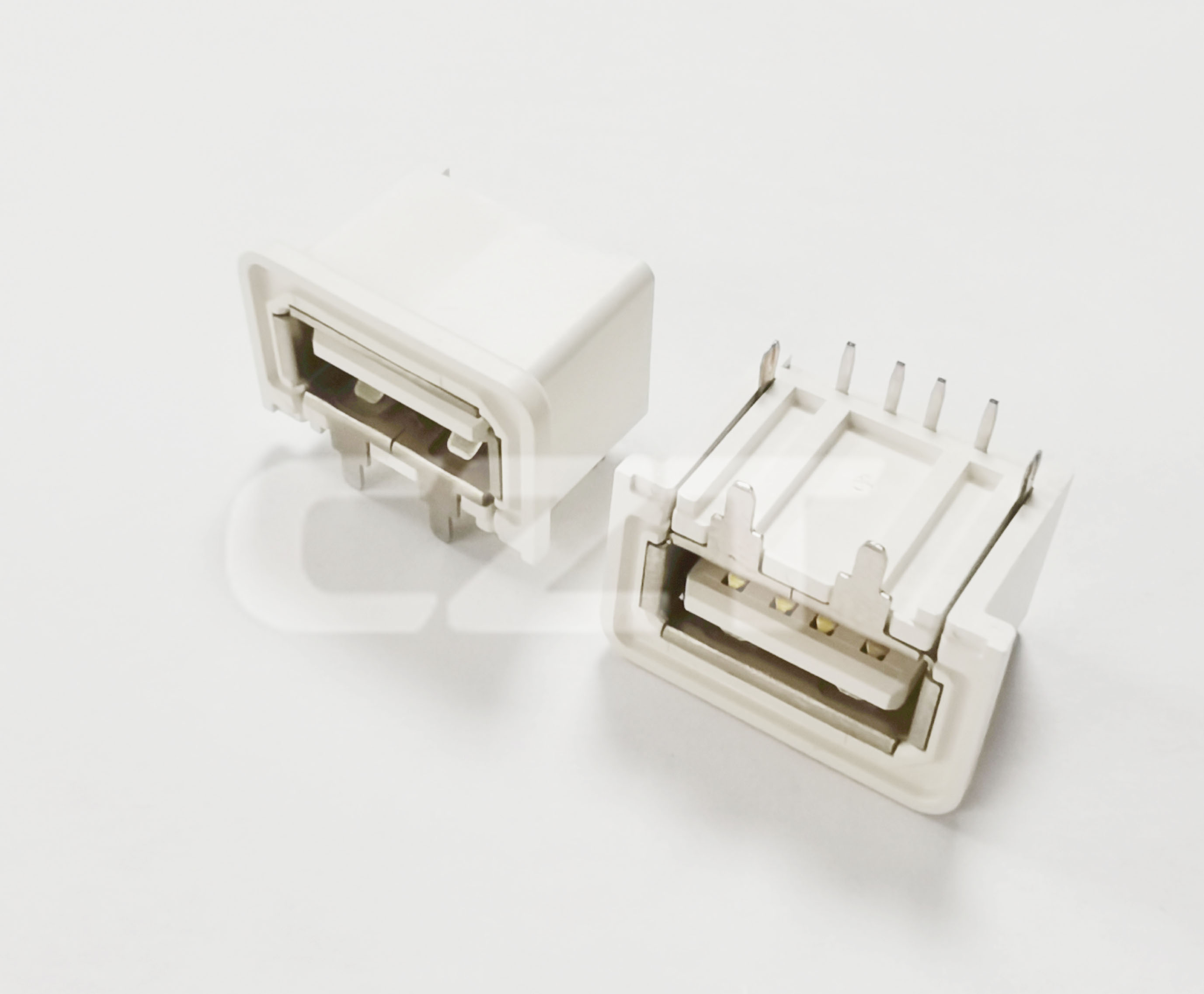

Figure 1. CZT Type-A receptacle example shows mating and attachment geometry to preserve in a realistic insertion and durability fixture. CZT source · Original image.
Translate service use into a sequence
Describe who connects the cable, how often and from what direction. Record whether operators can see the port, whether a panel guides the plug and whether a stiff cable remains attached during equipment movement.
Separate controlled straight mating from side loading. Combining the two without a defined procedure makes it difficult to understand which mechanism caused damage. Requirements for a service port may differ from those for a permanently connected internal assembly.
Choose inspection stages before testing starts. Pausing only when the port visibly fails misses progressive changes that could help explain the eventual result.
Define the complete specimen
Identify the mating plug, its prior use and its replacement rule during the experiment. Record the board construction, soldering process, enclosure and support position. A worn test plug can create misleading damage or obscure the receptacle's behavior.
| Stage | Measurements or observations |
|---|---|
| Initial | Position, joint condition and electrical baseline |
| Intermediate | Mating behavior, resistance trend and visible wear |
| Final | Functional operation, mechanical condition and retained attachment |
| Investigation | Location and sequence of any observed damage |
Set limits from the actual component documentation and product requirements. Do not invent a universal acceptable force or resistance change for all Type-A designs.
Observe more than communication
Successful data transfer is useful system evidence, but it may not reveal a weakening shell joint. Inspect the mechanical attachments and compare the port position with its starting condition. Include board movement where the load path suggests it matters.
Similarly, a continuity check should identify which circuits were measured and with what method. A single pass indication cannot explain whether a problem is in the cable, mating contacts, joints or board traces.

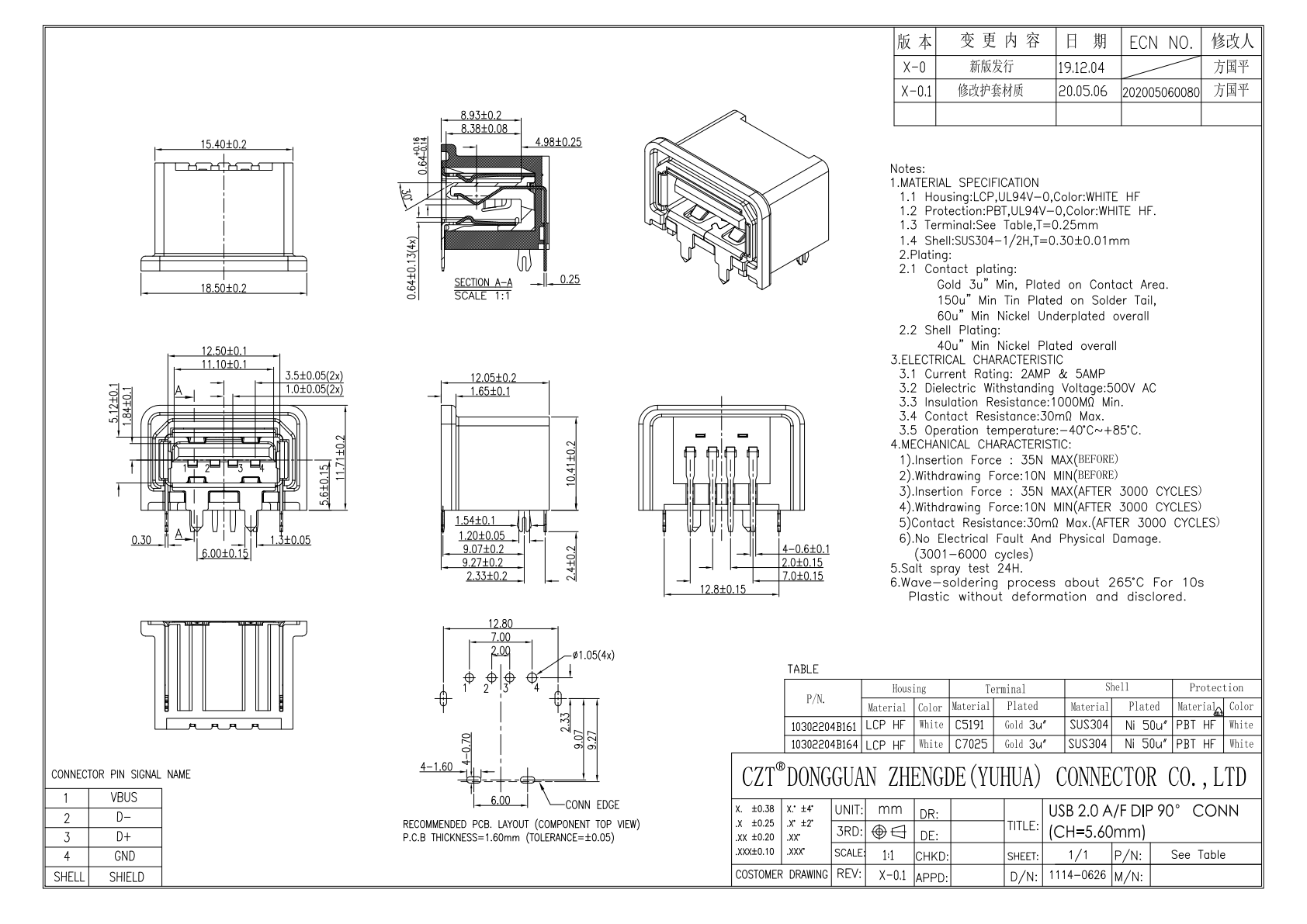

Figure 2. Official Type-A drawing provides the construction boundary for a durability sample; cycle requirements and actual test results remain separate evidence. CZT source · Original PDF, page 1.
Use results to guide a specific change
Suppose a hypothetical control panel passes straight cycling but shows board flex under its installed cable. That finding supports a separate support or handling review. It does not establish that a different connector material alone will correct the assembly.
Keep cycle records, stage measurements and photographs with the specimen identity. After a design change, repeat the checks affected by that change and compare them with the original conditions. Approval should describe the evaluated connector, cable and equipment configuration, making the result useful when production or service requirements change.
